Stainless Steel 16mm OD Union Tee Compression Tube Fitting

Stainless Steel 16mm OD Union Tee Compression Tube Fitting

Overview
Quick Details
Place of Origin:
China
Technics:
Machined
Connection:
Tube fitting
Shape:
Equal
Head Code:
Hexagon
Product name:
Stainless Steel 16mm OD Union Tee Compression Tube Fitting
Application:
Tube fitting connection
Size:
16mm OD
Medium:
Base Oil Water Gas
Feature:
Nut plated Sliver
Material:
Stainless Steel

















Packaging & Delivery

Selling Units:
Single item
Single package size:
8X5X5 cm
Single gross weight:
0.300 kg
Package Type:
inner packing :OPP bags/Poly bags , outer packing:normal export cartons
Picture Example:
Lead Time:
Quantity(Units) 1 - 500 >500
Est. Time(days) 15 To be negotiated
Product Description

Stainless Steel 16mm OD Union Tee Compression Tube Fitting

Connector for connecting pipes or fittings of different types
* Fitting connects to tubing on one end and has an NPT female connector on the other
* Chemically hardened type 316 stainless steel for higher strength and greater corrosion resistance than untreated stainless steel
* Double ferrule compression fitting for a leak-resistant seal in high-pressure applications
* For use with stainless steel pipe and tubing

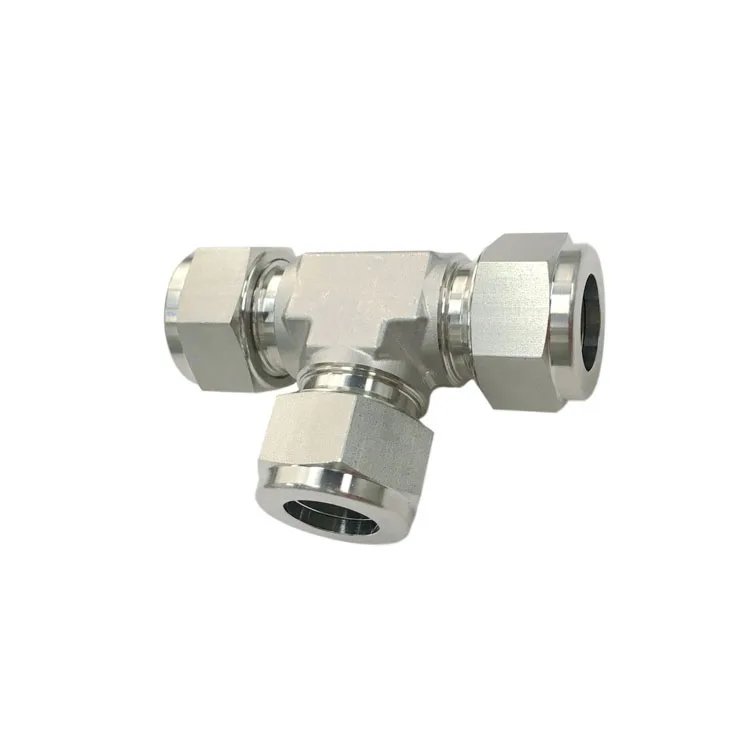

latest company news about Stainless Steel 16mm OD Union Tee Compression Tube Fitting  1

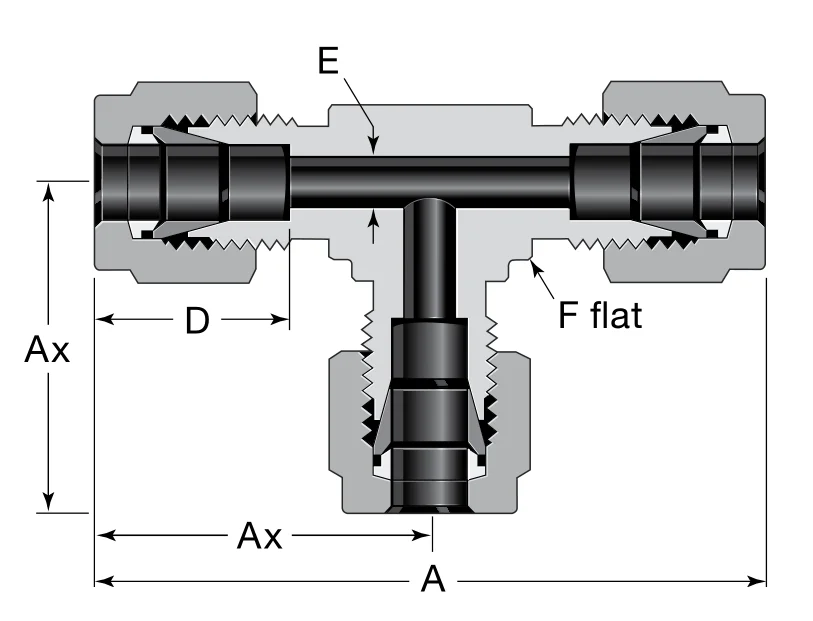

latest company news about Stainless Steel 16mm OD Union Tee Compression Tube Fitting  2
Specification
Item
Value
Product name
Stainless Steel 16mm OD Union Tee Compression Tube Fitting
Material
SS 316L, SS 316, SS304, CS, Brass
Tube fitting Size
1/16" to 1 1/2" for inch tube, 2 mm to 38 mm for metric tube
Thread size
1/16" to 1 1/2", M3 to M27
Connection
Tube fitting/ Female/ Male/ JIC
Thread series
NPT BSPP BSPT Metric, and other thread
Nut feature
Sliver plated
Normal pressure
25 Mpa to 40 Mpa
Normal temperature
<450°C
Media
Oil, Water, Gas and other non-corrosive or corrosive media
Standard
GB3733.1~3765-83
Product detailed pictures

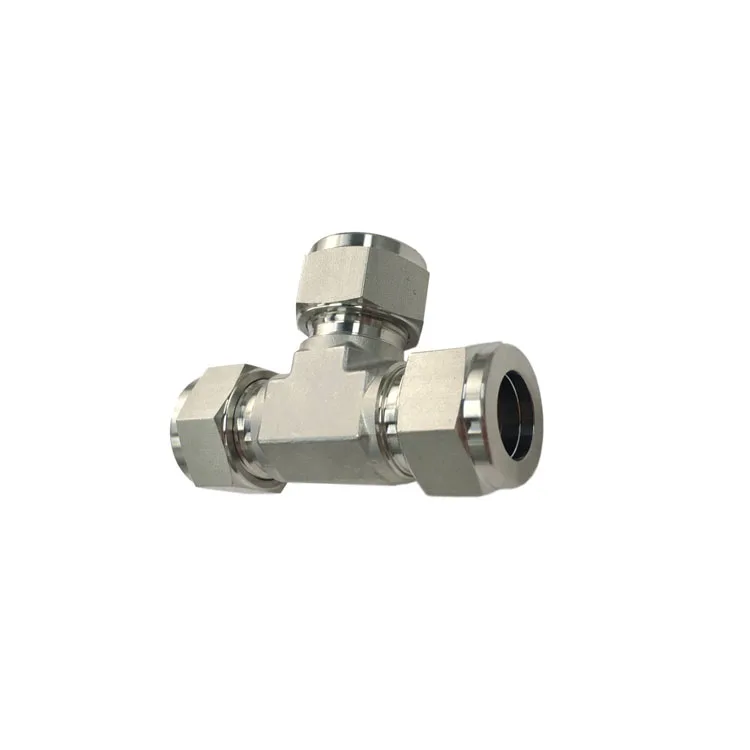

latest company news about Stainless Steel 16mm OD Union Tee Compression Tube Fitting  3

Prefer high-quality stainless steel

Good quality, not easy to rust. The ferrule is connected firmly, with high pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable work

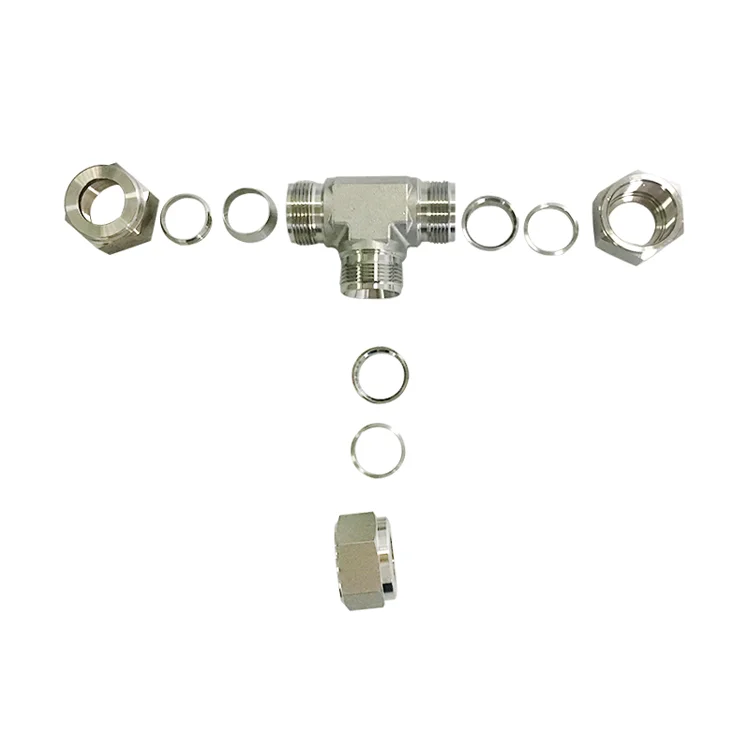

latest company news about Stainless Steel 16mm OD Union Tee Compression Tube Fitting  4

Nut with sliver plated

Smoother installation,
Ferrules: optional heat treatment
latest company news about Stainless Steel 16mm OD Union Tee Compression Tube Fitting  5

Exquisite appearance

CNC machining,
No burr
