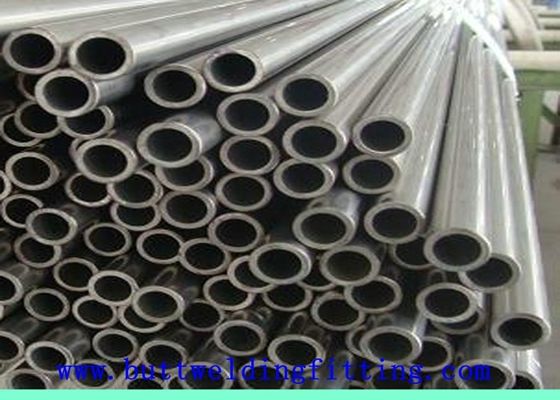

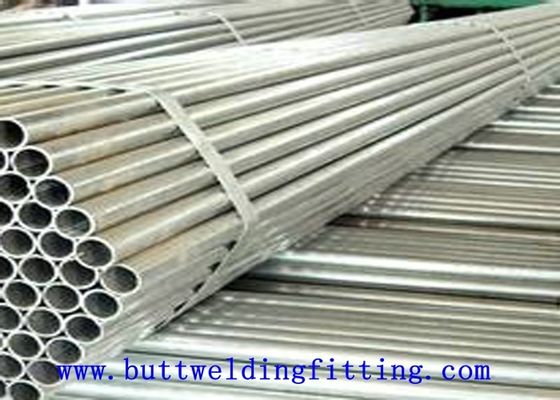

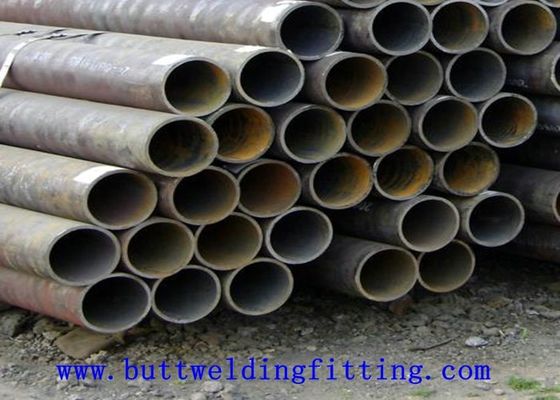

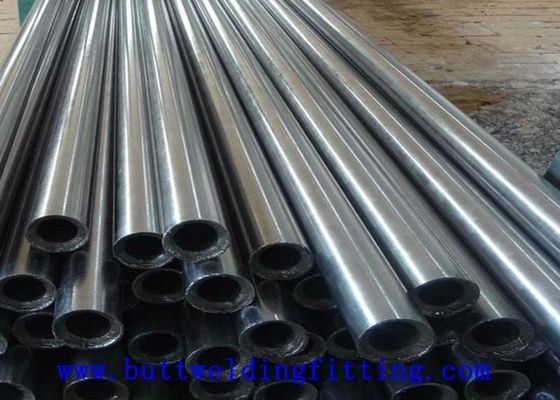

TOBO Nickel Copper Alloy ASTM B111 Monel tube C71500 Tube For Heat Exchanger

  • TOBO Nickel Copper Alloy ASTM B111 Monel tube C71500 Tube For Heat Exchanger
  • TOBO Nickel Copper Alloy ASTM B111 Monel tube C71500 Tube For Heat Exchanger
  • TOBO Nickel Copper Alloy ASTM B111 Monel tube C71500 Tube For Heat Exchanger
  • TOBO Nickel Copper Alloy ASTM B111 Monel tube C71500 Tube For Heat Exchanger
Place of Origin China
Brand Name TOBO
Certification ISO/PED/TUV/SGS/LR/BV
Model Number TOBO-4189
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details Wooden case or as request
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 10000000pcs per month
Product Details
Product Name TOBO Nickel Copper Alloy Material C70600
Standard ASTM B165 Length Single Random, Double Random & Cut Length
DN 4-50 Grade NC003,NC010,NC012
Type Steel Pipe Place Of Origin China
Highlight

copper nickel pipe

,

copper nickel tubing
Leave a Message
Product Description

ASTM B111 Monel tube (Nickel Copper Tube) C71500 TUBE FOR HEAT EXCHANGER



Product Description

  • State: Hard/semihard/soft
  • Variety: Extrusion/drawn/square tube/rectangular tube/cupreous conduit/air condition and refrigeration with brass
  • Specification: Circular tube external diameter 8-160, wall thickness 0.7-50, length less than 10m.
  • Square tube/rectangular tube external diameter 15*15-80*80, wall thickness 2-10, length less than 9m.
  • Cupreous conduit external diameter 8-108, wall thickness 0.8-3.5, length less than 9m
  • Air condition and refrigeration with bass external diameter 8-60, wall thickness 0.8-2.0, length less than 9m
The production specification limits of copper nickel pipe

variety
Grade
state		 specification
Executive standard
Externa
ldiameter(mm)		 Wall thickness

(mm)		 length (m)



extrusion		 T2T3
TP1TP2
Tu1Tu2
H85H70
H68H65
H62HPb59-1
Hpb63-3

Hot
extrude
(R)


50-60


3-50


Less than 10		 Chinese standard
GB/T5231-2001
GB/T1528-2007
GB/T16866-2006


drawn		 T2T3
TP1TP2
Tu1Tu2
H85H70
H68H65 H62
hard(Y)
semihard(Y2)
soft(M)

8-125

0.7-35

Less than 9
Chinese standard
GB/T5231-2001
GB/T1527-2007
GB/T16866-2006


Square tube
Rectangular tube
T2T3
TP1TP2
Tu1Tu2
hard(Y)
semihard(Y2)
soft(M)
15*15-80*80

2-10

Less than 9
Chinese standard
GB/T5231-2001
GB/T1527-2007
GB/T16866-2006


Cupreous conduit

T2TU2TP2
hard(Y)
semihard(Y2)
soft(M)

8-108

0.8-3.5

Less than 9
Chinese standard
GB/T5231-2001
GB/T18033-2007
GB/T5248-2008


Air conditiong and refrigeration with brass

T2TP1TP2Tu1Tu2

hard(Y)
semihard(Y2)
soft(M)

8-60

0.8-2.0

Less than 9
Chinese standard
GB/T5231-2001
GB/T17791-1999
GB/T5248-2008



Features



1) Seamless Condenser and Heat-exchangers tube series: Admiralty brass tube (Hsn 70-1/C44300/CUZn28Sn1AS) and Aluminum brass tube(HAI 77-2/C687000/CuZn20Al2As) etc.



2) Seamless copper-nickel alloy tubes for condenser and Heat-exchangers tube series: BFe 10-1-1/C706000/CuNi10Fe1Mn, BFe 30-1-1/C71500/CuNi30Mn1Fe and other copper-nickel alloy tubes;

3) Seamless Brass tube and Arsenical brass tube series: C26130, C26000, C27000, C27200, C28000 and other copper-nickel alloy tubes are widely used in sanitary ware, antenna, decoration, sationery, copper standard compontent, etc




4) Copper pipe and tube series: T2/C 11000/C102. TP2/C12200/C106 and other copper tubes.
Also can supply SB 111 C 715, SB 111 C706 etc.






5) OD; 5-80mm




6) WT: 0.5-10mm




7)Test: Automatic Eddy Current Testing, Hydrostatic, Air Pressure test, Hardness testing, Grain size testing, Universal Material Test.





Packaging Detail:



1)

wooden tray package, starting from the outside; Open to sky package, starting from outside;



2)with 250mm or 270mm height of per coil, 7coils per tray, with VCI film to keep tubes away from moisure and oxygen, and nitrogen inside tubes, to keep away from oxygen.



3)

with steel strip fastening the tubes from top in order to make it not collapse



Delivery Detail:



7-10 working days after receiving the prepaid



Detail Information



Specifications Unit weight O.D I.D Bottom Wall Thickness TW Fin Groove Depth HF TotalWallThickness Apex Angle Helix Angle Number of Tooth
Φ5.00×0.20+0.15-18° 33 5.00 4.30 0.2 0.15 0.35 40 18 40
Φ7.00×0.25+0.10-15° 52 7.00 6.30 0.25 0.10 0.35 40 15 65
Φ7.00×0.25+0.18-18° 57 7.00 6.14 0.25 0.18 0.43 40 18 50
Φ7.00×0.25+0.22-16° 58 7.00 6.06 0.25 0.22 0.47 22 16 54
Φ7.00×0.27+0.15-18° 60 7.00 6.16 0.27 0.15 0.42 53 18 60
Φ7.94×0.25+0.18-18° 65 7.94 7.08 0.25 0.18 0.43 40 18 50
Φ7.94×0.25+0.20-18° 66 7.94 7.04 0.25 0.20 0.45 40 18 50
Φ7.94×0.26+0.17-18° 66 7.94 7.08 0.26 0.17 0.43 40 18 50
Φ7.94×0.28+0.20-18° 72 7.94 6.98 0.28 0.20 0.48 40 18 50
Φ7.94×0.30+0.20-18° 76 7.94 6.94 0.3 0.20 0.50 40 18 50
Φ9.52×0.27+0.16-18° 82 9.52 8.66 0.27 0.16 0.43 30 18 70
Φ9.52×0.28+0.12-15° 80 9.52 8.72 0.28 0.12 0.40 53 15 65
Φ9.52×0.28+0.15-18° 83 9.52 8.66 0.28 0.15 0.43 53 18 60
Φ9.52×0.28+0.15-25° 88 9.52 8.66 0.28 0.15 0.43 90 25 65
Φ9.52×0.28+0.20-18° 85 9.52 8.56 0.28 0.20 0.48 25 18 55
Φ9.52×0.28+0.20-18° 88 9.52 8.56 0.28 0.20 0.48 40 18 60
Φ9.52×0.30+0.20-18° 90 9.52 8.52 0.3 0.20 0.50 30 18 60
Φ9.52×0.30+0.20-18° 94 9.52 8.52 0.3 0.20 0.50 53 18 60
Φ9.52×0.34+0.15-25° 104 9.52 8.54 0.34 0.15 0.49 90 25 65
Φ9.52×0.40+0.25-18° 123 9.52 8.22 0.4 0.25 0.65 40 18 60
Φ12.00×0.36+0.25-18° 140 12.00 10.78 0.36 0.25 0.61 40 18 70
Φ12.70×0.35+0.25-18° 155 12.70 11.50 0.35 0.25 0.60 53 18 70
Φ12.70×0.40+0.25-18° 170 12.70 11.40 0.4 0.25 0.65 53 18 70
Φ12.70×0.50+0.25-18° 201 12.70 11.20 0.5 0.25 0.75 53 18 75
Φ12.75×0.36+0.21/0.25-20° 150 12.75 11.53 0.36 0.25 0.61 48 20 70
Remark: WE CAN ALSO CUSTOMIZE THE UNSTANDARD TUBES FOR OUR CUSTOMERS

Material Brand:



Grade USA U.K Germany Japan
China BG ASTM BS DIN JIS H
BFe10-1-1 C70600 CN102 CuNi10Fe1Mn C7060
BFe30-1-1 C71500 CN107 CuNi30Mn1Fe C7150
HAL77-2 C68700 CZ110 CuZn22Al C6870
HSn70-1 C44300 CZ111 CuZn28Sn1 C4430
H68A C26130 CZ126 ----- -----
Etc.

Remark: summer@tobo-group.com
