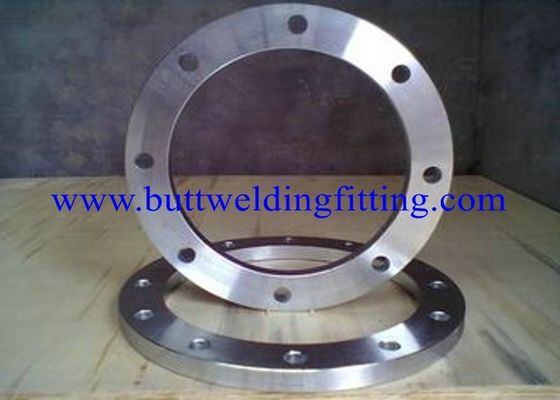

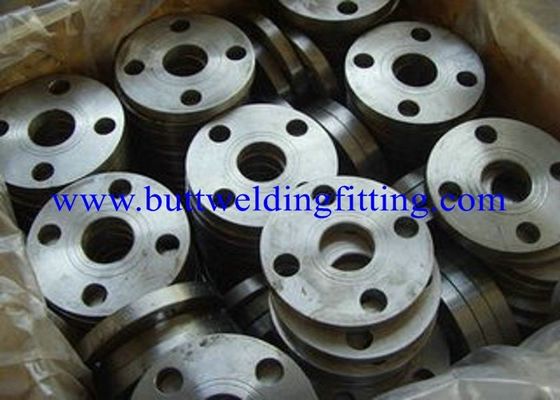

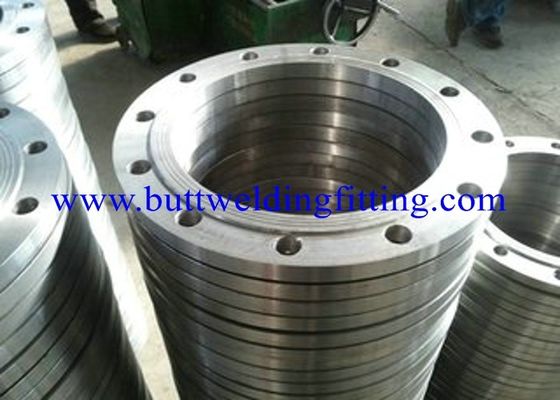

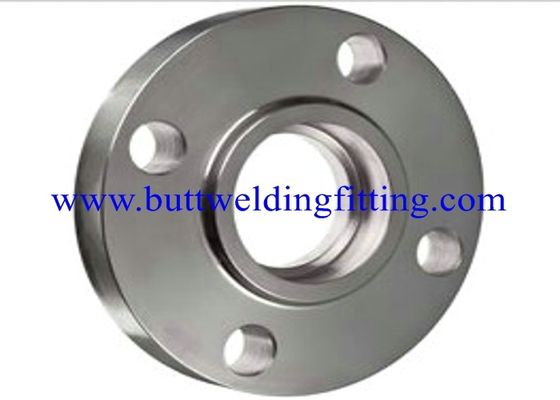

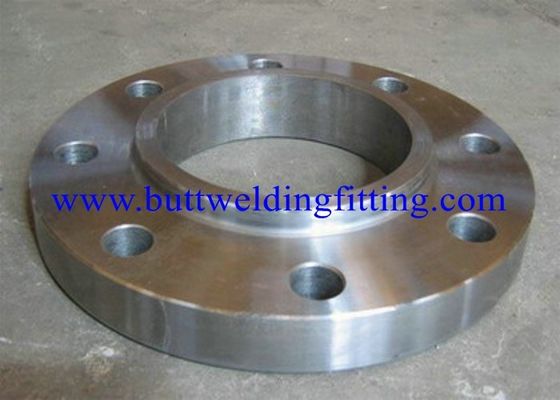

Steel Flange, Blind Flanges ANSI B16.5 / ANSI B16.47 , DIN2527 / DIN2566 , BS4504 / BS4504

  • Steel Flange, Blind Flanges ANSI B16.5 / ANSI B16.47 , DIN2527 / DIN2566 , BS4504 / BS4504
  • Steel Flange, Blind Flanges ANSI B16.5 / ANSI B16.47 , DIN2527 / DIN2566 , BS4504 / BS4504
  • Steel Flange, Blind Flanges ANSI B16.5 / ANSI B16.47 , DIN2527 / DIN2566 , BS4504 / BS4504
  • Steel Flange, Blind Flanges ANSI B16.5 / ANSI B16.47 , DIN2527 / DIN2566 , BS4504 / BS4504
  • Steel Flange, Blind Flanges ANSI B16.5 / ANSI B16.47 , DIN2527 / DIN2566 , BS4504 / BS4504
Place of Origin SHANGHAI
Brand Name TOBO
Certification ISO API 5L ,ECT
Model Number Steel Flanges, Alloy Materail ASTM A182 F11, F22, F5, F9, F91, F92 ,SO, WN, PL, LF, BL TYPE B16.5, B16.47
Minimum Order Quantity 1PC
Price USD1-10/PC
Packaging Details WOOD PACKAGES
Delivery Time 10--30DAYS
Supply Ability 10000000/PC/MONTH
Product Details
Highlight

forgings flanges and fittings

,

forged fittings and flanges
Leave a Message
Product Description

Steel Flanges, Alloy Materail ASTM A182 F11, F22, F5, F9, F91, F92 ,SO, WN, PL, LF, BL TYPE B16.5, B16.47



Detailed Product Description



Standard: ANSI:ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48,DIN:DIN2527, DIN2566, DIN2573, DIN2 Material: Duplex Steel,Nickel Alloy,Copper Alloy
Prduct: Blind - Blind Flanges (BLRF) Certification: API, PED



Flange Type WN / welding   neck  flange ;SO / slip   on  flange ;
PL  / Plate  flange ;BL / Blind  flange ;
Th / Threaded  flange ;SW / s o cket   welding  flange;
LF/SE(lapped   flange/stub end);LWN / long welding   nec k flange ;
Orifice   flange;Reducing   flange;API   flange;
Integral/Compact   flange;Spectacle blind,
Lin e  spade and   spacer,Paddle   blind,Paddle spacer;
Orifice plate;Pipe plate,Bleed   ring ;
Standard ANSI   B16.5,ANSI B16.47,ANSI B16.48,ANSI B16.36,
JIS B2220 ,
BS4504,  BS1560,BS10;
MSS SP44                     DIN2630, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635,
DIN 2636, DIN 2637, DIN 2638, DIN 2501(WN);DN2573, DIN 2576,
DIN 2527, DIN 2655, DIN 2656(PL);DIN2566(TH)
Size 1/ 2'' ~6 0''
Class Rating 150~2500
Facing RF(raised face);FF(flat face);RTJ(ring type joint); RJ(ring joint face)
TG(tongue and groove face);MF M (male and female face)
Manufacturing process Push, Press, Forge, Cast, etc.



Material

Carbon steel
Stainless steel
Alloy steel
Duplex stainless steel		 Carbon steel, stainless steel, alloy steel
ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70;
ASTM A234 WPB,WPC;
ASTM A420 WPL6,WPL3;
ASTM A105;
ASTM A860 ;
ASTM A350 LF1,   LF2  CL1/CL2 ,   LF3  CL1/CL2 ;
ASTM A266 GR.1,GR.2,GR.3,GR.4
API 5L GR.B
ASTM  A182
F 304, 304L, 304H, 309S, 309H, 310S, 310H,316,
316T i ,316L,317, 317L, 321,   347,347H, 348,254SMO,
S31254, UNS  8020,F45 , S30815,F46 , S30600, F904L
A182  F56 , S33228,F58 , S31266,F62 , N08367 ,
ASTM A312
ASTM  A182  F5, F5a , F9, F11, F12, F22, F91;
ASTM A182 F51/UNS S31803,F53/UNS S32750,F55/UNS S32760
Packing Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms L/C,T/T
Shipment FOB Tianjin/Shanghai, CFR, CIF etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallur g y/Shipbuilding  etc
Remarks Other materials and drawings are available.
