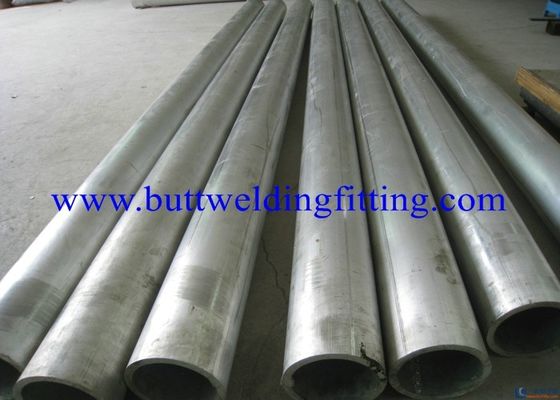

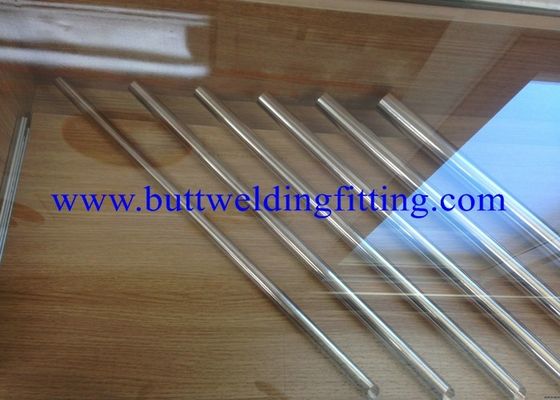

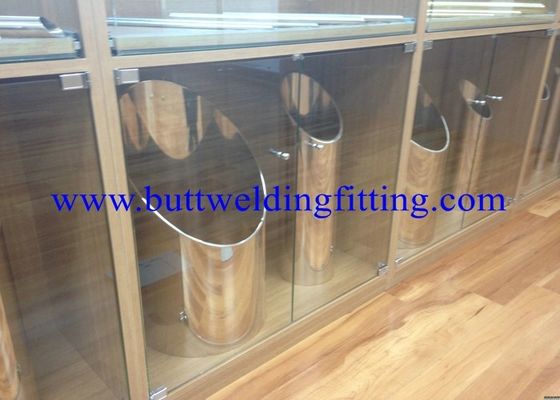

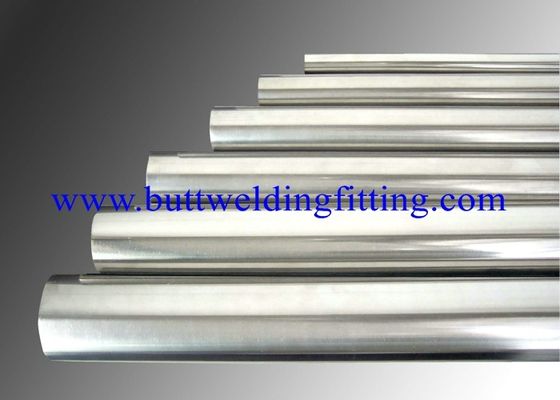

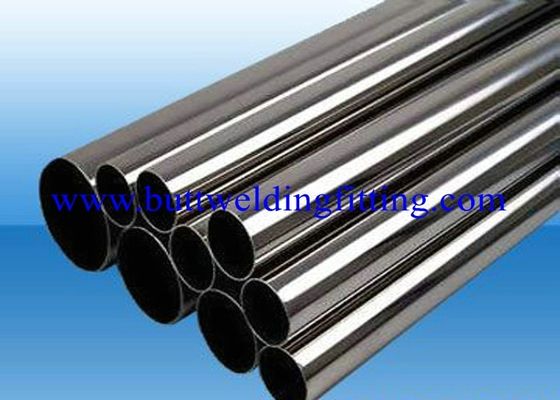

Annealed Stainless Steel Pipe Welding ASTM A312 A213 A269 DIN 17458 JIS G3463
| Place of Origin | China/Japan/Germany |
|---|---|
| Brand Name | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | 201,202,301, 321, 304, 304L, 316, 316L, 409, |
| Minimum Order Quantity | 0.5-1 tons |
| Price | negotiable |
| Packaging Details | in plastic bags then in bundles |
| Delivery Time | According to the qty |
| Payment Terms | T/T, L/C, Western Union, |
| Supply Ability | 6000TONS/MONTH |
Product Details
| Standard | ASTM, DIN, GOST, GB, JIS | Color | White Silver Gold |
|---|---|---|---|
| Types | Stainless Steel Seamless Pipe / Tube | Material Grade | 08Х18Н10, 08Х18Н10Т, 12Х18Н10Т, 201,202,301,304,304L,316L,etc |
| Outer Diameter | 1.5mm-2000mm | ||
| Highlight | SS Welded Tube,Large Stainless Steel Pipe |
||
Product Description
Annealed Stainless Steel Pipe Welding ASTM A312 A213 A269 DIN 17458 JIS G3463
Quick Detail:
The welded stainless steel pipe is made from stainless steel by electric welding or sheet metal strips by means of forming and welding. Electrically welded tube is made of thermally without subsequent processing and hot-reducing.
Specifications of Stainless Steel Welded Pipe
|
Product name: |
Stainless Steel Welded Pipe/Tube |
|
Standard: |
ASTM, DIN, GOST, GB, JIS |
|
Grade: |
08Х18Н10, 08Х18Н10Т, 12Х18Н10Т, 201,202,301,304,304L,316L,etc |
|
OD range: |
1.5mm-2000mm |
|
Wall thickness range: |
0.1mm-30mm |
|
Application |
Window,Door,Handrail,Curtain rail,Towel rail,Flagpole,Lamp pole,Sanitary Instrument,Billboard,Decoration,Upholstery, |
|
Surface finish: |
pickling, annealing, manual polish and mechanical polish, mirror polish |
Stainless Steel Welded Round Pipe
1. Thickness: 0.1mm~30mm
2. OD range: 1.5mm~2000mm
Stainless Steel Welded Square Pipe
1. Thickness: 0.2mm~8mm
2. OD range: S4mm~S300mm
Stainless Steel Welded Rectangular Pipe
1. Thickness: 0.2mm~8mm
2. OD range: (4x6)mm ~ (200x400)mm
Features of Stainless Steel Welded Pipe
1. Uniform wall thickness
2. High brightness for tube appearance
3. Arbitrary dimension as your requirement
4. Economy & beautiful
Applications of Stainless Steel Welded Pipe
1.Construction: Architectural decoration , banister, city-scape .etc
2.Food producing equipment::such as beer brewing, milk processing & wine making .etc
3.Medical field: medical instruments
4.Fluid transport-pipeline: fluid pipe ,pressure pipe ,pipe for mechical structure , including for transport
5.Heat Exchanger tube
Packing and Label
We wrap the stainless steel products with anti-rust paper and steel rings to prevent damage. Identification labels are tagged according to standard specification or customer's instructions. Special packing is available as per customer's requirement.
|
Name |
Stainless steel welded pipe/ tube |
|||||
|
Standard |
ASTM A554, A312, A249, A269 and A270,A688 |
|||||
|
Material Grade |
201,202,301,304,316,430,304L,316L |
|||||
|
Size Range |
20x10mm--100x50mm,10x10mm-100x100mm, 9.53-101.6mm, we can also accept sizes above 101.6mm |
|||||
|
Thickness |
0.3mm - 3.0mm |
|||||
|
Length |
6m or as customers' request |
|||||
|
|
a) Outer Diameter: +/- 0.2mm |
|||||
|
b) Thickness: +/- 0.02mm |
||||||
|
c) Length: +/- 5mm |
||||||
|
Surface |
180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish) |
|||||
|
Application |
Window,Door,Handrail,Curtain rail,Towel rail,Flagpole,Lamp pole,Sanitary Instrument,Billboard,Decoration,Upholstery, |
|||||
|
Test |
Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT |
|||||
|
|
|
201 |
202 |
304 |
316L |
430 |
|
C |
≤0.15 |
≤0.15 |
≤0.08 |
≤0.35 |
≤0.12 |
|
|
Si |
≤1.00 |
≤1.00 |
≤1.00 |
≤1.00 |
≤1.00 |
|
|
Mn |
5.5-7.5 |
7.5-10 |
≤2.00 |
≤2.00 |
≤1.00 |
|
|
P |
≤0.06 |
≤0.06 |
≤0.045 |
≤0.045 |
≤0.040 |
|
|
S |
≤0.03 |
≤0.03 |
≤0.030 |
≤0.030 |
≤0.030 |
|
|
Cr |
13-15 |
14-17 |
18-20 |
16-18 |
16-18 |
|
|
Ni |
0.7-1.1 |
3.5-4.5 |
8-10.5 |
10-14 |
|
|
|
Mo |
|
|
|
2.0-3.0 |
|
|
|
|
Material Item |
201 |
202 |
304 |
316 |
|
|
Tensile Strength |
≥535 |
≥520 |
≥520 |
≥520 |
||
|
Yield Strength |
≥245 |
≥205 |
≥205 |
≥205 |
||
|
Extension |
≥30% |
≥30% |
≥35% |
≥35% |
||
|
Hardness (HV) |
<105 |
<100 |
<90 |
<90 |
||
