TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
Place of Origin: | China |
---|---|
Brand Name: | TOBO |
Certification: | SGS |
Model Number: | TOBO-44 |
Minimum Order Quantity: | 1PCS |
Price: | 1 USD PER PCS |
Packaging Details: | by Plywood case, about 1 metric ton per case. |
Delivery Time: | 7-15 WORK DAYS |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 500 TON PER MONTH |
Product Name: | Tobo 90/10 Copper Nickel Alloy C70600 | Material: | 90/10 Copper Nickel Alloy C70600 |
---|---|---|---|
Type: | Seamless | Thickness:: | 0.5mm-20mm |
Standard: | ASTM B 111, B 395, B 466, B 552 | Place Of Origin: | Shanghai China |
Outer Diameter: | 2mm~914mm | ||
Highlight: | copper nickel pipe,copper nickel tubing |
Standard: C70600, C71500 ASTM B111 ASTM B466, B359 Length: Single Random, Double Random & Cut Length
End: These Pipes Have Plain End, Beveled End, Threaded And Features Like Hot Dipped Galvanizing, Epoxy & Fbe Coating And Electro Polish Grade: C70600, C71500 ASTM B111 ASTM B466, B359
Color: Black Or Red Types: Seamless
ASTM: C70600, C71500 ASTM B111 ASTM B466, B359 Form: Round, Square, Rectangular, Hydraulic Etc
Seamless copper nickel tube CUNI pipe C70600, C71500 2015 Hot sale 70/30 Copper nickel tube /0/10 Copper nickel tube
Copper nickel tube, ASTMB111,C70600,manily be used in the heat exchanger,ship building ,power station and so on;
1. Standard Applied: ASTM B111 (ASTM B466, ASTM B359, ASTM 395), JIS H3300, BS EN 12451, EN 12449, GB/T8890 etc.
2. Quality : bright ,clean and smmoth in the surface; No burr in the end ; Eddy Current test is ok ;
3. Specification : O.D 2mm to O.D 40mm; Length can up to 12m;
4. The brass tubes are widely used in Steam Turbines, Seawater Desalination Equipments, Petrochemical Plants, Power Plants, Coolers, Boiler, Water Evaporators, Oil Refineries, and Shipbuilding.
5. Material Designation Applied: C71500, C70600, C71640, C68700, C44300, C26130 etc.

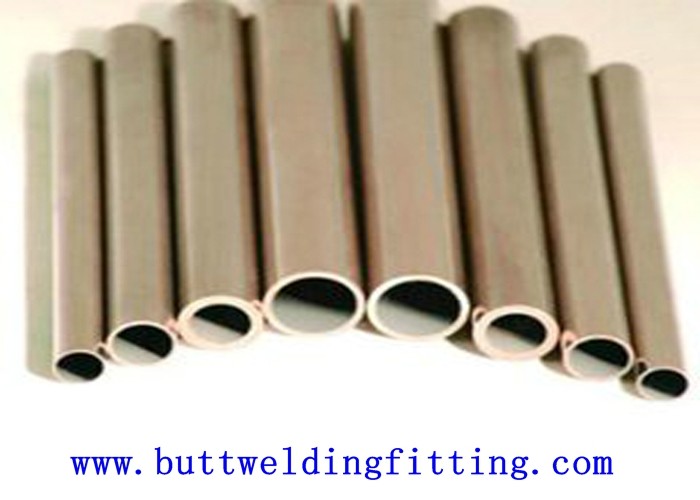

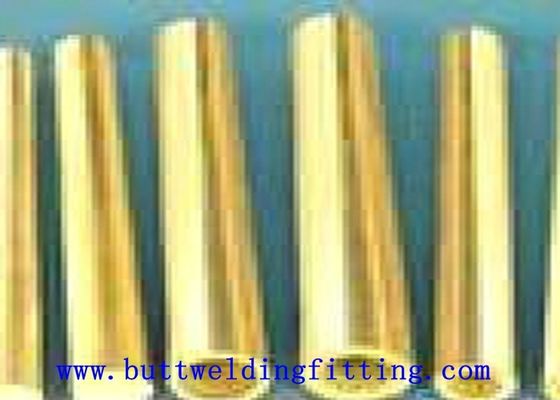

Copper Nickel tube C70600 ASTM B111
The seamless copper nickel pipe/tube C70600 which is widely used for Evaporator,Heat Exchanger,Condenser,Distiller.
under standard ASTM B111, we can provide alloy tube C71500, C70600, C71640, etc.
Copper Nickel tubes, 10% – C70600 - exhibits excellent resistance to impingement attack. It is also highly resistant to SCC. This alloy is suitable for Marine condenser tube installations in place of Aluminum Brass, especially where higher water velocities are encountered.
UNS No. | C70600 – BSI No. CN102 – ISO Name CuNi10Fe1Mn |
Chemical Comp. (%) | Cu rem / Ni 9 ~ 11 / Pb 0.05 / Fe 1 ~ 1.8 / Zn 1 max / Mg 1 max |
ASTM Spec. | B 111, B 395, B 466, B 552 |
ASME Spec. | SB 111, SB 395, SB 466 |
Applications | Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing; Salt Water piping. |
Temper | O61 Annealed / H55 Light-Drawn |
Properties * | |
Density | 0.323 lb/in³ |
Tensile Strength min.- O61 -/- H55 | 40 ksi -/- 45 ksi |
Yield Strength min.- O61 -/- H55 | 15 ksi -/- 35 ksi |
CTE, linear | 9.5 10-6/°F @ 70.0 – 570 °F |
Specific Heat Capacity | 0.09 BTU/lb-°F @ 70ºF |
Thermal Conductivity | 26 BTU/ft2/ft/h/°F @ 70.0 °F |
Melting Point |
2010 – 2100 °F |
Name: copper tube copper nickel
1.OD:1/4''-4 1/8''
2.WT:0.40-3.0mm
3.Length:as your requirement
4.High quality, good price, short delivery time
5.Standard: 90/10 copper nickel
6.Type: copper pipe
7.Shape: roundpipe
Product | copper tube copper nickel with high quality |
Application |
copper pipes are widely used in air-conditioning and refrigeration field service, heat exchange use, connecting tubes, distribution, fire protection, solar, natural gas, liquefied petroleum gas, vent piping and so on. |
Material | ASTM,JIS,EN... |
Standard | C12200 |
Temper | soft annealed,special tempers on request |
Outside Diameter | 4.76mm to 28.58mm |
Thickness | 0.4mm to 3.0mm |
Cu (Min) | 99.90% |
Alloy Or Not | Non-alloy |
Cleanliness |
all annealed coils meet or exceed the cleanliness levels specification.Coils are capper with plastic end caps. |
MOQ | 1MT |
Loading port | SHANGHAI |
Packing | Ends capped,in shrinking-wrapped bag,then into cardboard box |
Length | Can be customized |
Delivery Time | within 30 days after receicing the deposit |
Payment Terms | L/C,T/T |
Supply Ability | 10000tons/year |
Main Technical Parameters:
Standard size (Inch) | |||||||
Standard |
Copper Alloy No. |
Chemical Composition | Mechanical Properties | ||||
CU% | P% | Temper |
Tensile Strength (Mpa) |
Elongation(%) |
Grain Size (mm) |
||
ASTM B88 |
C11000 | 99.90 | - | 60 | 200 | - | 0.040 |
50 | 200 | - | 0.025 | ||||
C12200 | 99.90 | 0.015~0.040 | H58 | 250 | - | - | |
JIS H3300 |
C1100 | 99.90 | 0.015~0.040 | O | 205 | 40 | - |
L | 245~325 | - | - | ||||
H | 265 | - | - | ||||
C1220 | 99.90 | 0.015~0.040 | 0 | 205 | 40 | 0.025~0.060 | |
L | 205 | 40 | 0.040 | ||||
1/2H | 245~325 | - | - | ||||
H | 255 | - | - | ||||
ASTM B75 |
C11000 | 99.90 | - | 60 | 205 | - | 0.040 |
50 | 205 | - | 0.040 | ||||
C12200 | 99.90 | 0.015~0.040 | H58 | 250 | - | - | |
H80 | 310 | - | - | ||||
EN 1057 |
99.90 | 0.015~0.040 | R220 | 220 | 40 | - | |
R250 | 250 | 30 OR 20 | - | ||||
R290 | 290 | 3 |
We have acquired manufacturing licenses for pressure pipe and CE pressure pipe;ISO9001:2000 certificate ;PEDcertificate and pressure pipe GOST certificate.
Q: Are you trading company or manufacturer ?
A: We are manufacturer ,You can see the Alibaba certification.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Att:Summer
Phone:17717912304
Tel: 0086 21 31261985
Petroleum,Food, Chemical, Paper, Fertilizer, Fabric, Aviation,Nuclear,Fluid, Gas and oil transport,Pressure and heat transmission,Construction and ornament,Boiler heat exchanger
