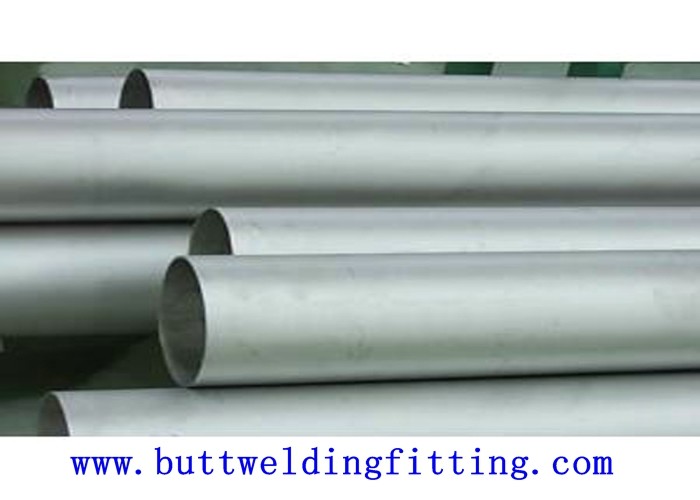

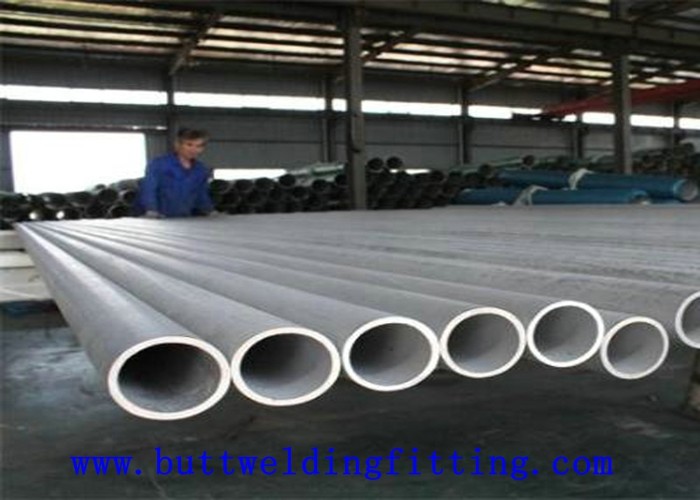

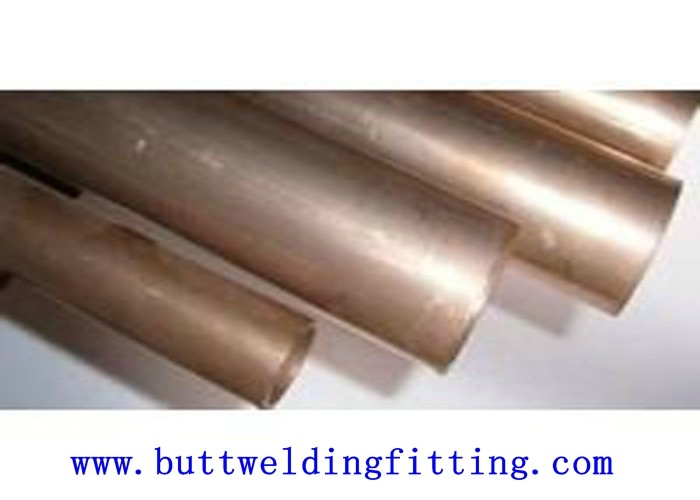

1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe

1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe
1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe
Basic Information
Place of Origin: China
Brand Name: TOBO
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: TOBO-4189
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Wooden case or as request
Delivery Time: 7-15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000000pcs per month
Get Best Price Contact Now
Product Name: TOBO Nickel Copper Alloy Material: C70600
Standard:: ASTM B165 Length: Single Random, Double Random & Cut Length
DN:: 4-50 Grade: NC003,NC010,NC012
Type: Steel Pipe Place Of Origin: China
Highlight:

copper nickel pipe

,

copper nickel tubing



1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube/pipe from China supplierfor air conditioner

Copper Nickel tube C70600 ASTM B111

The seamless copper nickel pipe/tube C70600 which is widely used for Evaporator,Heat Exchanger,Condenser,Distiller.

under standard ASTM B111, we can provide alloy tube C71500, C70600, C71640, etc.



Copper Nickel tubes, 10% – C70600 - exhibits excellent resistance to impingement attack. It is also highly resistant to SCC. This alloy is suitable for Marine condenser tube installations in place of Aluminum Brass, especially where higher water velocities are encountered.



UNS No.

C70600 – BSI No. CN102 – ISO Name CuNi10Fe1Mn

Chemical Comp. (%)

Cu rem / Ni 9 ~ 11 / Pb 0.05 / Fe 1 ~ 1.8 / Zn 1 max / Mg 1 max

ASTM Spec.

B 111, B 395, B 466, B 552

ASME Spec.

SB 111, SB 395, SB 466

Applications

Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing; Salt Water piping.

Temper

O61 Annealed / H55 Light-Drawn



Properties *



Density

0.323 lb/in³

Tensile Strength min.- O61 -/- H55

40 ksi -/- 45 ksi

Yield Strength min.- O61 -/- H55

15 ksi -/- 35 ksi

CTE, linear

9.5 10-6/°F @ 70.0 – 570 °F

Specific Heat Capacity

0.09 BTU/lb-°F @ 70ºF

Thermal Conductivity

26 BTU/ft2/ft/h/°F @ 70.0 °F

Melting Point

2010 – 2100 °F



 1.2mm 1.25mm CuNi 90/10 C70600 Seamless Copper Nickel Tube / Pipe 0

Spec Equivalents: ASTM B151, MIL C15726F

The C71500 COPPER NICKEL "70/30" alloy is the corrosion resistant alloy mainly used in salt water environment. The alloy is the combination of nickle, iron and manganese that helps in maintaining good corrosion resistance and is commonly used in valves, and pump components.

Applications:

  • Industrial Applications : Pump Impellers, Heat Exchanger Tubes, Evaporator Tubes, Distiller Tubes, Condenser Plates, Refrigerators, Process Equipment, Condenser Components, Ferrules, Welding Backing Rings, Flexible Metal Hose, Weld Wire, Boiler Parts, Condensers, Propeller Sleeves, Heat Exchanger Components

  • Marine Applications : Salt Water Flanges, Salt Water Piping, Valve Bodies, Sea Water Service, Fittings, Sea Water Condensers, Salt Water Pipe Fittings, Water Boxes - Salt Water Applications, Pump Bodies and Internal Parts-Sea Water



Specifications

End Product

Specification

Bar

ASTM B122, B151, MILITARY MIL-C-15726, SAE J461, J463

Bolts

ASTM F468

Electrode, Welding

AWS A5.6, MILITARY MIL-E-22200/4

Nuts

ASTM F467

Pipe, Seamless

ASME SB466, ASTM B466

Pipe, Welded

ASTM B608, B467

Plate

ASTM B122, MILITARY MIL-C-15726, SAE J461, J463

Plate, Clad

ASTM B432

Plate, Condenser Tube

ASME SB171, ASTM B171, SAE J463, J461

Rod

ASTM B151, MILITARY MIL-C-15726

Screws

ASTM F468

Sheet

ASTM B122, MILITARY MIL-C-15726, SAE J463, J461

Strip

ASTM B122, MILITARY MIL-C-15726, SAE J461, J463

Studs

ASTM F468

Tube, Condenser

ASME SB111, ASTM B552, B111, MILITARY MIL-T-15005, SAE J463, J461

Tube, Finned

ASME SB359, ASTM B359, MILITARY MIL-T-22214

Tube, Seamless

ASME SB466, ASTM B466, MILITARY MIL-T-16420

Tube, U-Bend

ASME SB395, ASTM B395

Tube, Welded

ASME SB543, ASTM B543

Wire

MILITARY MIL-C-15726


Physical Properties:

Product Property

US Customary

Metric

Coefficient of Thermal Expansion

9.0 ·10-6 per oF (68-572 F)

16.2 ·10-6 per oC (20-300 C)

Density

0.323 lb/in3 at 68 F

8.94 gm/cm3 @ 20 C

Electrical Conductivity

4 %IACS @ 68 F

0.027 MegaSiemens/cm @ 20 C

Electrical Resistivity

225.0 ohms-cmil/ft @ 68 F

37.4 microhm-cm @ 20 C

Melting Point - Liquidus

2260 F

1238 C

Melting Point - Solidus

2140 F

1171 C

Modulas of Elasticity in Tension

22000 ksi

152000 MPa

Modulus of Rigidity

8300 ksi

57230 MPa

Specific Gravity

8.94

8.94

Specific Heat Capacity

0.09 Btu/lb/oF at 68 F

377.1 J/kg · oK at 293 K

Thermal Conductivity

17.0 Btu · ft/(hr · ft2·oF)at 68F

29.4 W/m · oK at 20 C
