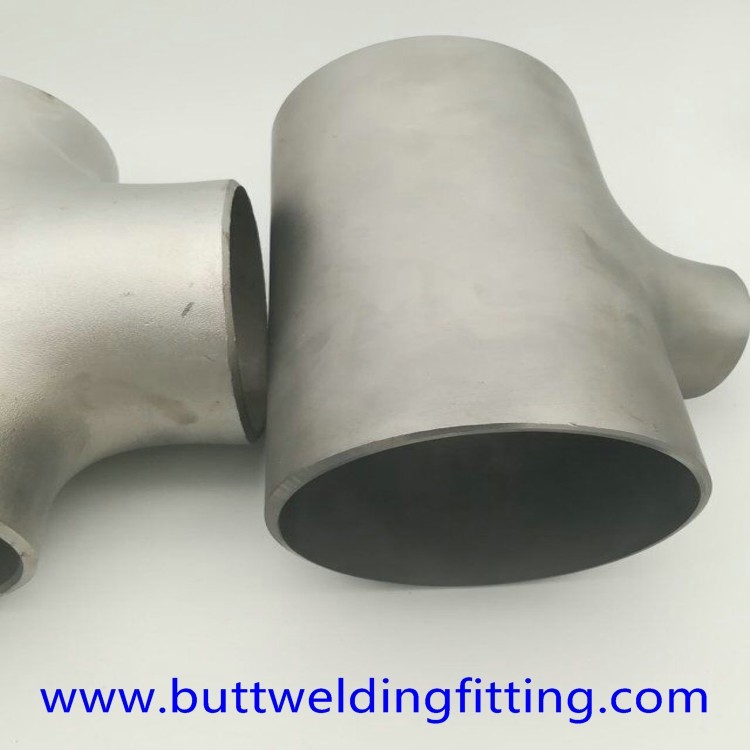

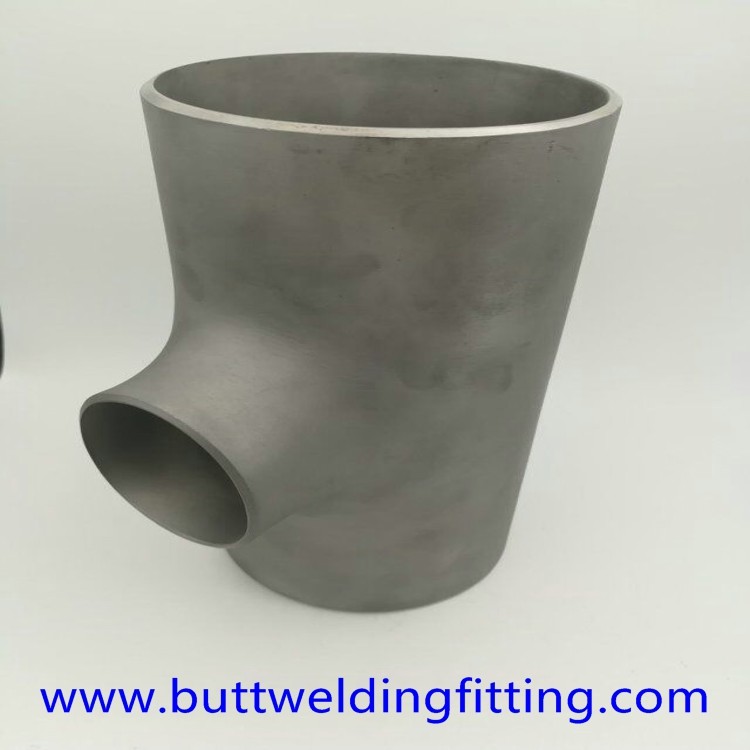

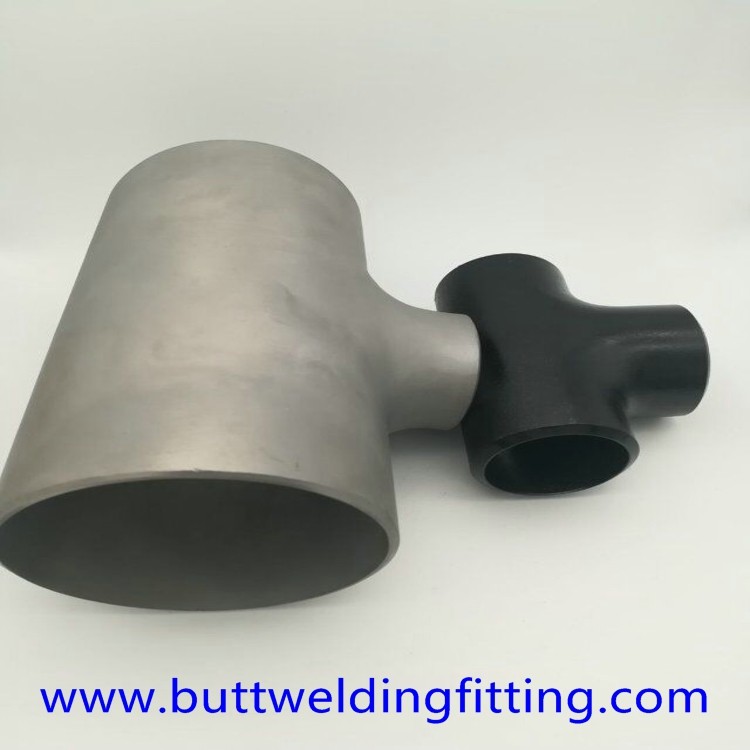

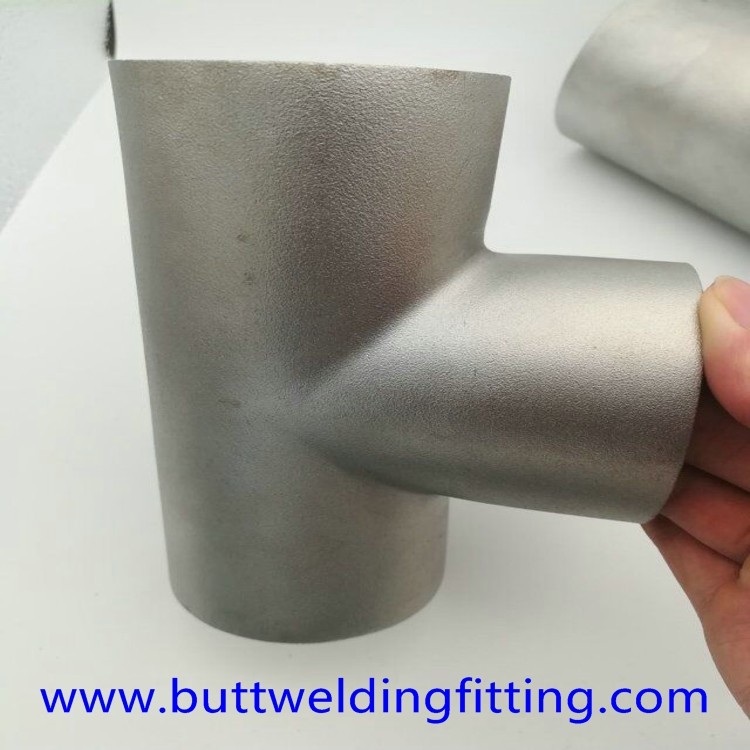

Dn15-3000 Stainless Steel Tee , Astm A234 Gr Wpb Butt Weld Reducing Tee

China Dn15-3000 Stainless Steel Tee , Astm A234 Gr Wpb Butt Weld Reducing Tee supplier
Dn15-3000 Stainless Steel Tee , Astm A234 Gr Wpb Butt Weld Reducing Tee supplier Dn15-3000 Stainless Steel Tee , Astm A234 Gr Wpb Butt Weld Reducing Tee supplier Dn15-3000 Stainless Steel Tee , Astm A234 Gr Wpb Butt Weld Reducing Tee supplier Dn15-3000 Stainless Steel Tee , Astm A234 Gr Wpb Butt Weld Reducing Tee supplier

Large Image :  Dn15-3000 Stainless Steel Tee , Astm A234 Gr Wpb Butt Weld Reducing Tee

Product Details:

Place of Origin: ShangHai
Brand Name: tobo-group
Model Number: 00310

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: USD 1 TON
Packaging Details: According to the customer
Delivery Time: 15
Supply Ability: 10000 TON 15DAYS
Contact Now
Detailed Product Description
Stainless Steel Tee: ASTM A234 GR WPB Pipe Fitting: Tee
Tee: Tee(C) Tee(R)

Stainless Steel Tee ASTM A234 GR WPB , ST37.2 , ST35.8Din 1.4301 , 1.4306 , 1.4401 , 1.4571



Brife introduction:



1. Product Item No.: 005fittings-Cosco Steel

2. Size: NPS 1/2"-120"(DN15-3000)

3. Varieties: SCH5S/10S, SCH20/40/8 Pipe Fitting Stainless steel SMLS reducer tee 0/160, STD/XS/XXS, SGP

4. Material:
Carbon steel: ASTM A234 GR WPB , ST37.2 , ST35.8…
Alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80…
Stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/TP310…

5. Standard: ANSI B16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/ DIN2615/GB-12459/GB-T13401,Gost17376,we can also produce according to drawing by customers.



Surface treatment:


Carbon steel:Shot blasted, black painting, rust-proof oil, transparent oil,galvanizing,, hot galvanizing





Introduction



Brand Name: TOBO
Model Number: ASTM A815 UNS S31803/S32205/S32750/S32760
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin: China





Specification



Norminal Pipe Size Outside Diameter at Bevel Center to End
DN D1 D2 C M
Series A Series B Series A Series B
20×20×15 26.9 25 21.3 18 29 29
25×25×20 33.7 32 26.9 25 38 38
25×25×15 33.7 32 21.3 18 38 38
32×32×25 42.4 38 33.7 32 48 48
32×32×20 42.4 38 26.9 25 48 48
32×32×15 42.4 38 21.3 18 48 48
40×40×32 48.3 45 42.4 38 57 57
40×40×25 48.3 45 33.7 32 57 57
40×40×20 48.3 45 26.9 25 57 57
40×40×15 48.3 45 21.3 18 57 57
50×50×40 60.3 57 48.3 45 64 60
50×50×32 60.3 57 42.4 38 64 57
50×50×25 60.3 57 33.7 32 64 51
50×50×20 60.3 57 26.9 25 64 44
65×65×50 76.1(73) 76 60.3 57 76 70
65×65×40 76.1(73) 76 48.3 45 76 67
65×65×32 76.1(73) 76 42.4 38 76 64
65×65×25 76.1(73) 76 33.7 32 76 57
80×80×65 88.9 89 76.1(73) 76 86 83
80×80×50 88.9 89 60.3 57 86 76
80×80×40 88.9 89 48.3 45 86 73





80×80×32 88.9 89 42.4 38 86 70
90×90×80 101.6 -- 88.9 -- 95 92
90×90×65 101.6 -- 76.1(73) -- 95 89
90×90×50 101.6 -- 60.3 -- 95 83
90×90×40 101.6 -- 48.3 -- 95 79
100×100×90 114.3 -- 101.6 -- 105 102
100×100×80 114.3 108 88.9 89 105 98
100×100×65 114.3 108 76.1(73) 76 105 95
100×100×50 114.3 108 60.3 57 105 89
100×100×40 114.3 108 48.3 45 105 86
125×125×100 139.7 133 114.3 108 124 117
125×125×90 139.7 -- 101.6 -- 124 114
125×125×80 139.7 133 88.9 89 124 111
125×125×65 139.7 133 76.1(73) 76 124 108
125×125×50 139.7 133 60.3 57 124 105
150×150×125 168.3 159 139.7 133 143 137
150×150×100 168.3 159 114.3 108 143 130
150×150×90 168.3 -- 101.6 -- 143 127
150×150×80 168.3 159 88.9 89 143 124
150×150×65 168.3 159 76.1(73) 76 143 121
200×200×150 219.1 219 168.3 159 178 168
200×200×125 219.1 219 139.7 133 178 162
200×200×100 219.1 219 114.3 108 178 156
200×200×90 219.1 -- 101.6 -- 178 152
250×250×200 273 273 219.1 219 216 203
250×250×150 273 273 168.3 159 216 194
250×250×125 273 273 139.1 133 216 191
250×250×100 273 273 114.3 108 216 184
300×300×250 323.9 325 273 273 254 241
300×300×200 323.9 325 219.1 219 254 229
300×300×150 323.9 325 168.3 159 254 219
300×300×125 323.9 325 139.7 133 254 216
350×350×300 355.6 377 323 325 279 270
350×350×250 355.6 377 273 273 279 257
350×350×200 355.6 377 219.1 219 279 248
350×350×150 255.6 377 168.3 159 279 238
400×400×350 406.4 426 355.6 377 305 305



Detail



Dn15-3000 Stainless Steel Tee , Astm A234 Gr Wpb Butt Weld Reducing Tee
