UNS N06022 Stainless Steel Seamless Pipe 3/4" Elbow LR 90 DEG Corrosion Cracking

  • UNS N06022 Stainless Steel Seamless Pipe 3/4" Elbow LR 90 DEG Corrosion Cracking
  • UNS N06022 Stainless Steel Seamless Pipe 3/4" Elbow LR 90 DEG Corrosion Cracking
  • UNS N06022 Stainless Steel Seamless Pipe 3/4" Elbow LR 90 DEG Corrosion Cracking
  • UNS N06022 Stainless Steel Seamless Pipe 3/4" Elbow LR 90 DEG Corrosion Cracking
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number Hastelloy C-22 UNS N06022
Minimum Order Quantity 300 Kilogram/Kilograms
Packaging Details Export standards or customer requirements
Delivery Time 7-30 working days after received deposit
Payment Terms L/C, T/T, Western Union
Supply Ability 50 Metric Ton/Metric Tons per Month
Product Details
Product Name ELBOW Product Type Steel Pipe
Grade 200 Series &300 Series &400 Series Shape Round
OD 168.3 - 3048 Mm Surface Painted
Application Oil Pipe Techinque Cold Drawn
Highlight

marine stainless steel tubing

,

seamless stainless steel tube
Leave a Message
Product Description

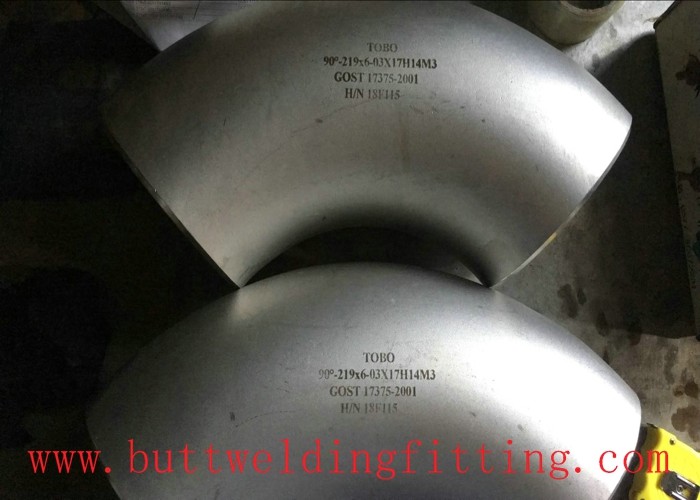

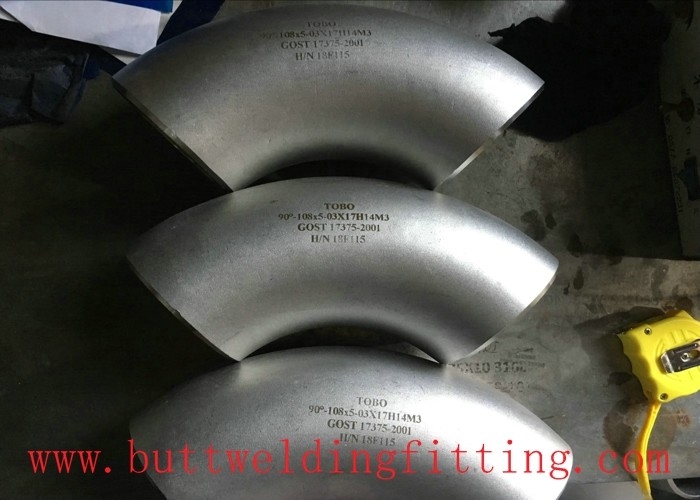

Pipe Fittings Hastelloy C-22 UNS N06022 NACE MR0175 3/4'' ELBOW LR 90 DEG



What are the characteristics of Hastelloy C22?

· Resistant to pitting, crevice corrosion and stress corrosion cracking

· Outstanding resistance to both reducing and oxidizing media

· Excellent resistance to oxidizing aqueous media

· Exceptional resistance to a wide variety of chemical process environments including strong oxidizers such as ferric acids, acetic anhydride, and seawater and brine solutions

· Resists the formation of grain-boundary precipitates in the weld heat-affected zone

· Excellent weldability

Chemical Composition, %

C Cr Co Fe Mn Mo Ni P Si S W V
.010 max 20-22.5 2.5 max 2.0-6.0 .50 max 12.5-14.5 Balance .02 max .08 max .02 max 2.5-3.5 .35 max

In what applications is Hastelloy C22 used?

· Pharmaceutical industries use alloy C-22 fittings and tubing to avoid contamination caused by corrosion related failures

· Cellophane manufacturing

· Chlorination systems

· Pesticide production

· Incineration scrubber systems

· Chemical process industry in equipment like flue gas scrubbers, chlorination systems, sulfur dioxide scrubbers, pulp and paper bleach plants, pickling systems, and nuclear fuel reprocessing

· Waste water processing





Product Specification
Name pipe fitting elbow
Material stainless steel ASTM A240 304 304L 316L 321 321H 347 347H 904L ASTM A789 S31803 S32205 S32750
Carbon Steel ASTM A234 WPB A420 WPL3 WPL6 A516 GR70 GR65 GR60 GR55 ISO3183/API 5L L36/X52 L415/X60 L450/X65 L485/X70?
Alloy Steel ASTM A335 P11 P22 SA387 GR.11 GR.22
Titanium Gr1 Gr2 Gr3 Gr5 Gr7 Gr12
Copper/Brass We can also produce according to customer's requirements
Standard?? ASME B16.9, ANSI B16.9, ASTM , JISB2312,DIN,BS, GBT12459-05, GB13401-05,GOST
ASME B16.9-2007,MSS SP 43-1991,MSS SP-75,ASTM B363
Wall thickness

Sch5S, Sch10S, Sch40S, Sch80S

Sch10,Sch20,Sch30,STD,Sch40,Sch60,XS,Sch80,Sch100,Sch120,Sch140,Sch160,XXS,
Size 1/2"-96" ? DN15-DN2400
Type Butt welded or Seamless
Shape Equal or Reducing
Product

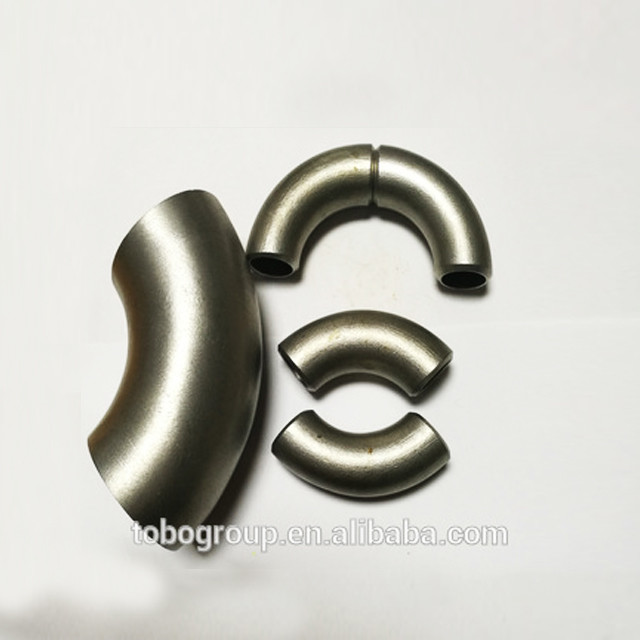

1.Elbow?L/R & S/R (45/90/180 DEG)

according to customer's requirement can produce the other's degree, such as 22.5 degree 30 degree 60 degree etc.
2. Tee(Straight and Reducing)
3. Reducer(Concentric and Eccentric)
4. Cross
5. Cap(Round and Elliptical)
6. Stub End
Quality Control Good quality control system which covers every process of the manufacturing-Raw material inspection,cutting,bending,sizing,shot blasting,beveling,coating,marking,packing,delivery;
Application Pipe fitting is the occupation of installing or repairing piping or tubing systems that convey liquid, gas, and occasionally solid materials. This work involves selecting and preparing pipe or tubing, joining it together by various means, and the location and repair of leaks.
Surface Black painting ; Pickling ; Sand blasting
Certificate ISO9001 ; ISO9001:2008
Package Wood case or Wooden pallets or according to the customer's requirements.
Features

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce pipes with special specifications according to customers' requirements;
Lead Time Within 30 days or according to the customer's requirements.
MOQ 1 Piece
OEM YES





UNS N06022 Stainless Steel Seamless Pipe 3/4" Elbow LR 90 DEG Corrosion Cracking
