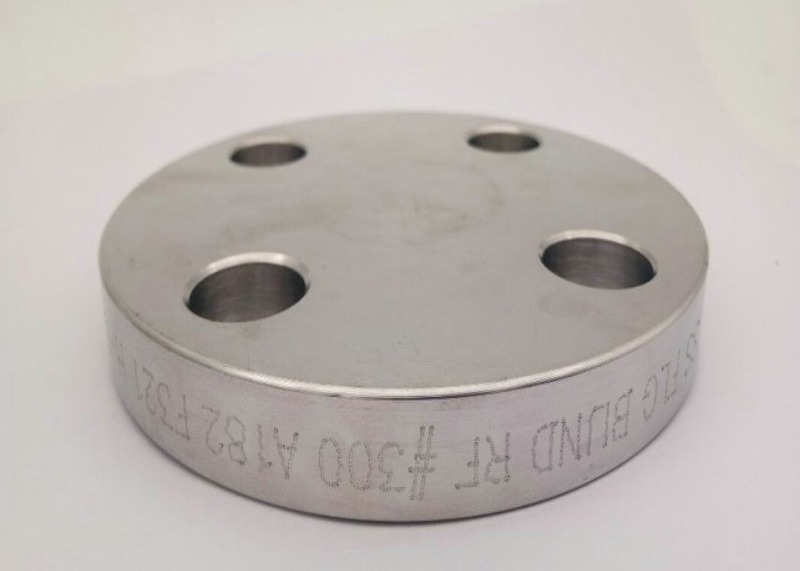

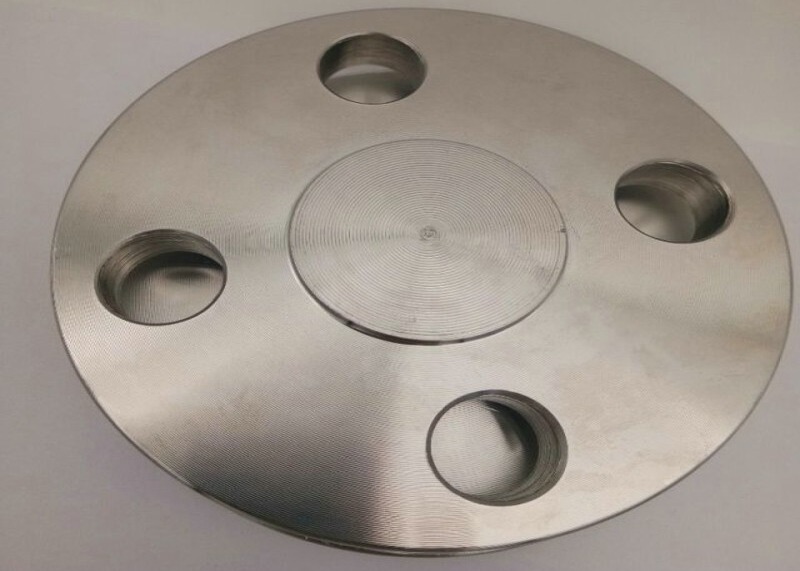

Super Austenitic Stainless Steel Pipe Connect Flanges 1-24" 150#-2500# UNS N08926 B649 N08926 Forging Blind Flange

Basic Information

Place of Origin:	China/Japan/Germany
Brand Name:	TOBO/TPCO/TISCO/VALIN/METAL
Certification:	ISO/PED/TUV/SGS/LR/BV
Model Number:	n4 n6 n7 n8

Minimum Order Quantity:	300 Kilogram/Kilograms
Price:	US $ 10 - 100 / Kilogram
Packaging Details:	Plywood cases or customized
Delivery Time:	7-30days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 Metric Ton/Metric Tons per Month

Get Best Price Contact Now

Product Name:	Nickel Incoloy 926 Steel Flange	Product Type:	Nickel Steel Flange
Grade:	Nickel Alloy	Ni (Min):	24-26%
Ultimate Strength (≥ MPa)::	Rm N/mm2 650	Elongation (≥ %):	40
Application:	Blades, Vanes, Shafts, Tail Cones, Afterburners, Springs, And Fastener	Color:	Shining

Super Austenitic Stainless Steel Pipe Connect Flanges 1-24" 150#-2500# UNS N08926 B649 N08926 Forging Blind Flange

Quick Details

Place of Origin:	Shanghai, China (Mainland)	Type:	Nickel Bar	Application:	refractory
Grade:	nickel alloy	Ni (Min):	24-26%	Resistance (μΩ.m):	more than 140
Powder Or Not:	Not Powder	Ultimate Strength (≥ MPa):	Rm N/mm2 650	Elongation (≥ %):	40
Model Number:	n4 n6 n7 n8 nickel bar	Brand Name:	TOBO	Color:	shining

Packaging & Delivery

Packaging Details:	Plywood cases or customized
Delivery Detail:	7-30days

Specifications

Incoloy 926
1. Size: 16mm-300mm
2. Material: Inconel, incoloy, hastelloy, Monel, super stainless steel etc.

Product Description

Nickel alloy Incoloy 926 bar

Nickel alloy Incoloy 926 Chemical composition:

Alloy	%	Ni	Cr	Fe	C	Mn	Si	Cu	Mo	N	Ti	P	S
926	Min.	24	19	Balance				0.5	6.0	0.15	0.6
926	Max.	26	21	Balance	0.02	2	0.5	1.5	7.0	0.25	1.2	0.03	0.01

Incoloy 926 Physical properties:

Density	8.1 g/cm3
Melting point	1320-1390 °C

Incoloy 926 Alloy Minimum Mechanical properties in the room temperature:

Alloy state	Tensile strength Rm N/mm2	Yield strength RP0.2N/mm2	Elongation A5 %
926	650	295	35

Incoloy 926 Characteristic:
1. It has high resistance to pitting and crevice corrosion when in Halide and H2S contained acid media.
2. In practice, effective in resistance of chloride stress corrosion cracking.
3. A variety of corrosion have good corrosion resistance capability in the normal oxidation and restore environment.
4. Upgrade mechanical properties than Cronifer 1925 LC-Alloy 904 L.
5. Alloys has Improved the stability of metallurgical compared to a range of 18% of the nickel content alloys.
6. With a certification of applied in manufacturing-related pressure vessel (VdTUV-196~400°C and ASME )

Super Austenitic Stainless Steel Pipe Connect Flanges 1-24" 150#-2500# UNS N08926 B649 N08926 Forging Blind Flange 0

Corrosion Resistance:

Incoloy 800, like many austenitic stainless steels, can be sensitized, or made susceptible to intergranular attack in some aggressive media, by exposure to the temperature range of 1000 to 1400F.

Applications:

For services below 600 degree centigrade the use of soft annealed incoloy 800 is suggested. Incoloy 800 has

applications in furnae components and equipment, petrochemical furnace cracker tubes, pigtails,headers

and sheathing for electrical heating elements.

Corrosion Resistance
For many years prior to its application as a brake tubing material, alloy C70600 had been used in ships, power station condensers and hydraulic lines on tankers, and had displayed excellent resistance to saline conditions. Early tests revealed that copper-nickel has almost the same resistance to burst pressure as steel. In testing, however, when exposed to salt spray over 180 days, steel's burst strength decreases significantly. The copper alloy remains consistently resistant.
For tubes covered with a moist, salty mudpack for six months, brazed steel was severely corroded resulting in perforation of the tubing wall; whereas, only superficial general corrosion was found on the copper-nickel tubing. ISO 4038 and SAE J1047 include a corrosion resistance requirement referring to ISO 3768 asking for a minimum burst pressure of 110 MPa after 96 hours in neutral salt spray. Swedish requirements include a resistance at least equal to 25 of zinc. In all cases alloy C70600 easily exceeds the required corrosion resistance.

Copper-nickel brake tubing provides superior reliability and assures both manufacturers and vehicle owners improved durability for effective long-life functioning of the brake system.
