| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOBO |
| Certification: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number: | A403 Wp304 L , Wp316l , Wp321h , Wp347 Wp904L |
| Minimum Order Quantity: | 2PCS |
| Price: | USD 1-30 Per PC |
| Packaging Details: | PLY-WOODEN CASE OR PALLET |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 96660000 PCS PER MONTH |
| Material:: | Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254 | Manufacture Standard:: | ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN |
|---|---|---|---|
| Application: | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc | Marking: | TOBO Logo,Heat Number,Steel Grade,Standard,Size |
| Highlight: | steel pipe tee,butt weld tee |
||

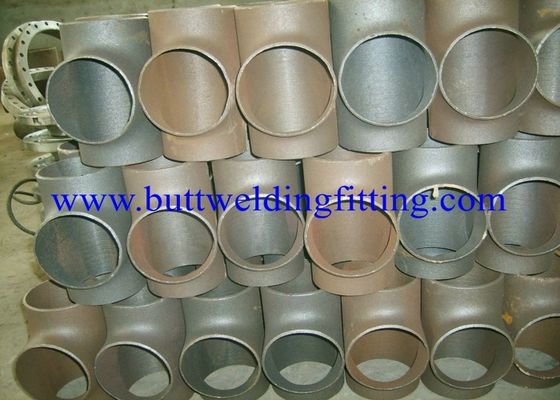

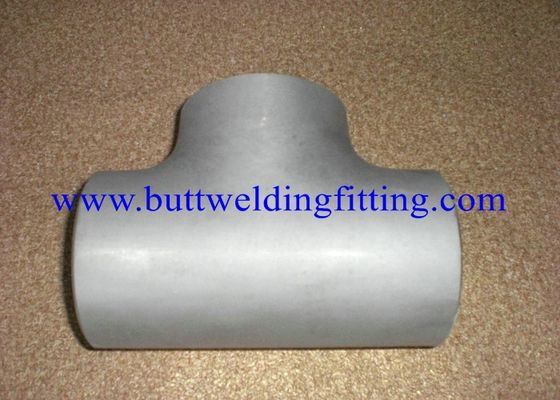

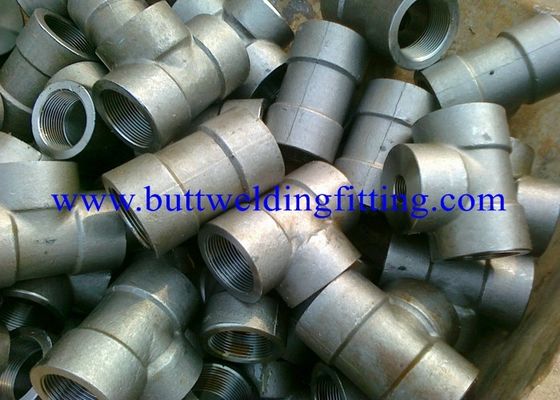

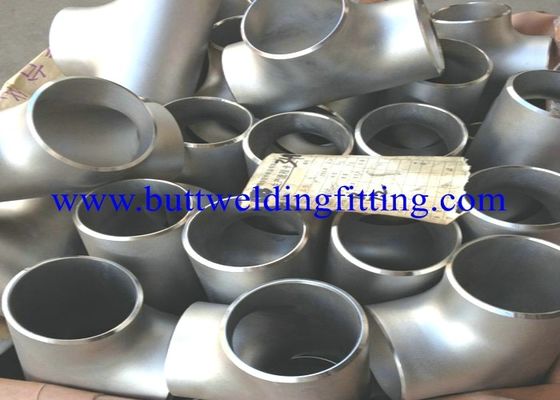

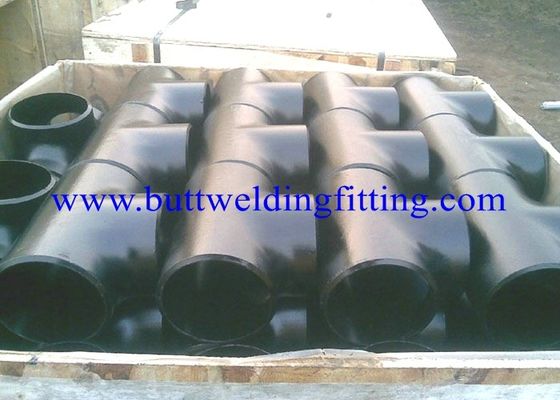

Stainless Steel Tee A403 Wp304 L , Wp316l , Wp321h , Wp347 Wp904L Straight Tee Asme B16.9
Product Name: Stainless Steel Tee
Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760/S32550
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, annealed & pickling,rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection
Specification
|
Norminal Pipe Size |
Outside Diameter at Bevel |
Center to End |
||||
|
DN |
D1 |
D2 |
C |
M |
||
|
Series A |
Series B |
Series A |
Series B |
|||
|
20×20×15 |
26.9 |
25 |
21.3 |
18 |
29 |
29 |
|
25×25×20 |
33.7 |
32 |
26.9 |
25 |
38 |
38 |
|
25×25×15 |
33.7 |
32 |
21.3 |
18 |
38 |
38 |
|
32×32×25 |
42.4 |
38 |
33.7 |
32 |
48 |
48 |
|
32×32×20 |
42.4 |
38 |
26.9 |
25 |
48 |
48 |
|
32×32×15 |
42.4 |
38 |
21.3 |
18 |
48 |
48 |
|
40×40×32 |
48.3 |
45 |
42.4 |
38 |
57 |
57 |
|
40×40×25 |
48.3 |
45 |
33.7 |
32 |
57 |
57 |
|
40×40×20 |
48.3 |
45 |
26.9 |
25 |
57 |
57 |
|
40×40×15 |
48.3 |
45 |
21.3 |
18 |
57 |
57 |
|
50×50×40 |
60.3 |
57 |
48.3 |
45 |
64 |
60 |
|
50×50×32 |
60.3 |
57 |
42.4 |
38 |
64 |
57 |
|
50×50×25 |
60.3 |
57 |
33.7 |
32 |
64 |
51 |
|
50×50×20 |
60.3 |
57 |
26.9 |
25 |
64 |
44 |
|
65×65×50 |
76.1(73) |
76 |
60.3 |
57 |
76 |
70 |
|
65×65×40 |
76.1(73) |
76 |
48.3 |
45 |
76 |
67 |
|
65×65×32 |
76.1(73) |
76 |
42.4 |
38 |
76 |
64 |
|
65×65×25 |
76.1(73) |
76 |
33.7 |
32 |
76 |
57 |
|
80×80×65 |
88.9 |
89 |
76.1(73) |
76 |
86 |
83 |
|
80×80×50 |
88.9 |
89 |
60.3 |
57 |
86 |
76 |
|
80×80×40 |
88.9 |
89 |
48.3 |
45 |
86 |
73 |
|
80×80×32 |
88.9 |
89 |
42.4 |
38 |
86 |
70 |
|
90×90×80 |
101.6 |
-- |
88.9 |
-- |
95 |
92 |
|
90×90×65 |
101.6 |
-- |
76.1(73) |
-- |
95 |
89 |
|
90×90×50 |
101.6 |
-- |
60.3 |
-- |
95 |
83 |
|
90×90×40 |
101.6 |
-- |
48.3 |
-- |
95 |
79 |
|
100×100×90 |
114.3 |
-- |
101.6 |
-- |
105 |
102 |
|
100×100×80 |
114.3 |
108 |
88.9 |
89 |
105 |
98 |
|
100×100×65 |
114.3 |
108 |
76.1(73) |
76 |
105 |
95 |
|
100×100×50 |
114.3 |
108 |
60.3 |
57 |
105 |
89 |
|
100×100×40 |
114.3 |
108 |
48.3 |
45 |
105 |
86 |
|
125×125×100 |
139.7 |
133 |
114.3 |
108 |
124 |
117 |
|
125×125×90 |
139.7 |
-- |
101.6 |
-- |
124 |
114 |
|
125×125×80 |
139.7 |
133 |
88.9 |
89 |
124 |
111 |
|
125×125×65 |
139.7 |
133 |
76.1(73) |
76 |
124 |
108 |
|
125×125×50 |
139.7 |
133 |
60.3 |
57 |
124 |
105 |
|
150×150×125 |
168.3 |
159 |
139.7 |
133 |
143 |
137 |
|
150×150×100 |
168.3 |
159 |
114.3 |
108 |
143 |
130 |
|
150×150×90 |
168.3 |
-- |
101.6 |
-- |
143 |
127 |
|
150×150×80 |
168.3 |
159 |
88.9 |
89 |
143 |
124 |
|
150×150×65 |
168.3 |
159 |
76.1(73) |
76 |
143 |
121 |
|
200×200×150 |
219.1 |
219 |
168.3 |
159 |
178 |
168 |
|
200×200×125 |
219.1 |
219 |
139.7 |
133 |
178 |
162 |
|
200×200×100 |
219.1 |
219 |
114.3 |
108 |
178 |
156 |
|
200×200×90 |
219.1 |
-- |
101.6 |
-- |
178 |
152 |
|
250×250×200 |
273 |
273 |
219.1 |
219 |
216 |
203 |
|
250×250×150 |
273 |
273 |
168.3 |
159 |
216 |
194 |
|
250×250×125 |
273 |
273 |
139.1 |
133 |
216 |
191 |
