A403 Wp321 / Tp321 , Wp310 / Tp310 Stainless Steel Reducing Tee 1” 24” Sch40s

Name: A403 Wp321 / Tp321 , Wp310 / Tp310 Stainless Steel Reducing Tee 1” 24” Sch40s
Brand: TOBO
SKU: A403 Wp321 / Tp321 , Wp310 / Tp310
Price: 0.1 USD
Availability: InStock
Rating: 4.5 (198 reviews)

Basic Information

Place of Origin:	CHINA
Brand Name:	TOBO
Certification:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number:	A403 Wp321 / Tp321 , Wp310 / Tp310

Minimum Order Quantity:	2PCS
Price:	USD 0.1-300 PER PC
Packaging Details:	PLY-WOODEN CASE OR PALLET
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	9600000 PCS

Get Best Price Contact Now

Shape::

Straight Tee Redicer Tee

Surface::

Annealing,picking,hair Line,polished,bright,brush,coated,sand Blast,etc

Steel Grade::

A403 Wp321 / Tp321 , Wp310 / Tp310

Outer Diameter::

15MM-2400MM

Highlight:

stainless steel pipe tee

butt weld tee

A403 Wp321 / Tp321 , Wp310 / Tp310 Stainless Steel Tee Reducing Tee 1” 24” Sch40s

Description:

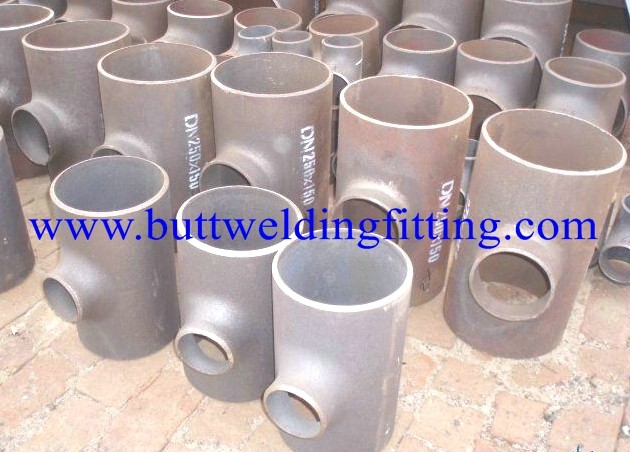

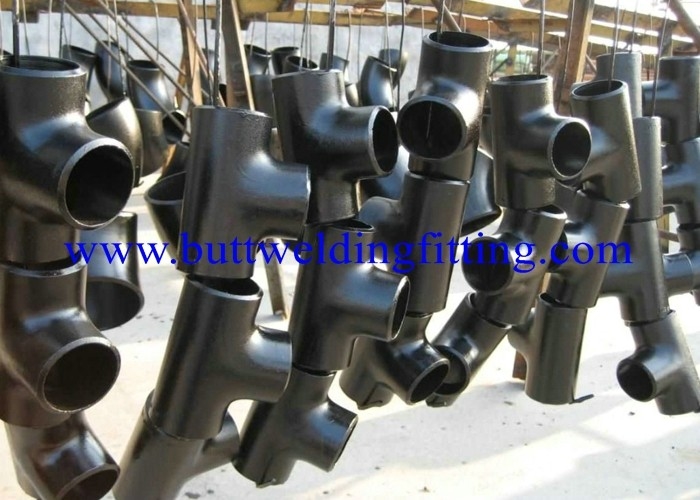

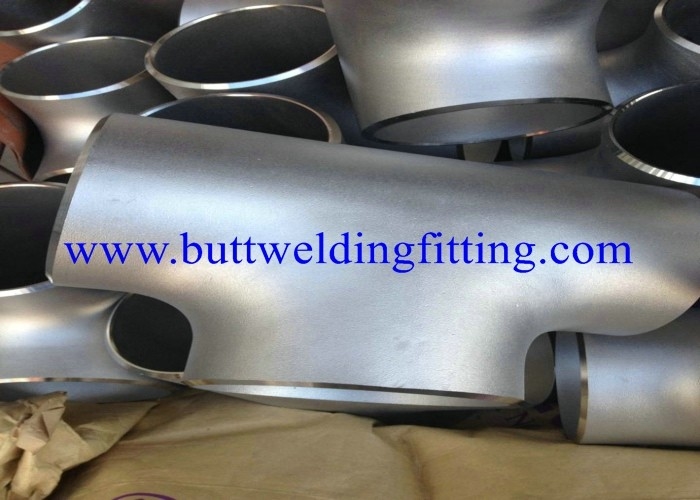

1. Product Item No.: Stainless Steel Tee

2. Size: NPS 1/2"-120"(DN15-3000)

3. Varieties: SCH5S/10S, SCH20/40/8 Pipe Fitting Stainless steel SMLS reducer tee 0/160, STD/XS/XXS, SGP

4. Material:
Carbon steel: ASTM A234 GR WPB , ST37.2 , ST35.8…
Alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80…
Stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316 , WP316L/TP316L, WP321/TP321 , WP310/TP310…

5. Standard: ANSI B16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/ DIN2615/GB-12459/GB-T13401,Gost17376,we can also produce according to drawing by customers.

6. Surface treatment:
Carbon steel:Shot blasted, black painting, rust-proof oil, transparent oil,galvanizing,, hot galvanizing
Alloy steel:Shot blasted, black painting, rust-proof oil, transparent oil, galvanizing,, hot galvanizing
Stainless steel: pickled,

7. Trade term: FOB, CNF&CFR, CIF

8. Usage: Petroleum/ Power/ Chemical use/ Construction use/ Gas/ Metallury/ Shipbuilding

9. Certificate:GB/T19001-2008-ISO 9001:2008

10. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

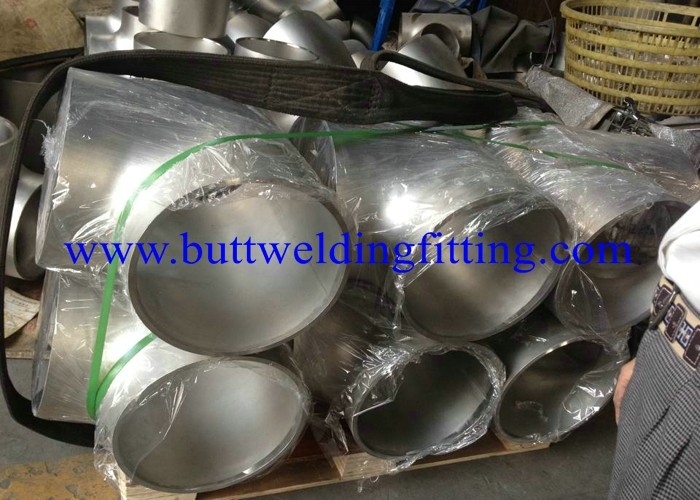

11. Packing: Wooden box or wooden pallet.

12. H.S Code: 73072300

Specification

Norminal Pipe Size	Outside Diameter at Bevel				Center to End
DN	D1		D2		C	M
DN	Series A	Series B	Series A	Series B	C	M
20×20×15	26.9	25	21.3	18	29	29
25×25×20	33.7	32	26.9	25	38	38
25×25×15	33.7	32	21.3	18	38	38
32×32×25	42.4	38	33.7	32	48	48
32×32×20	42.4	38	26.9	25	48	48
32×32×15	42.4	38	21.3	18	48	48
40×40×32	48.3	45	42.4	38	57	57
40×40×25	48.3	45	33.7	32	57	57
40×40×20	48.3	45	26.9	25	57	57
40×40×15	48.3	45	21.3	18	57	57
50×50×40	60.3	57	48.3	45	64	60
50×50×32	60.3	57	42.4	38	64	57
50×50×25	60.3	57	33.7	32	64	51
50×50×20	60.3	57	26.9	25	64	44
65×65×50	76.1(73)	76	60.3	57	76	70
65×65×40	76.1(73)	76	48.3	45	76	67
65×65×32	76.1(73)	76	42.4	38	76	64
65×65×25	76.1(73)	76	33.7	32	76	57
80×80×65	88.9	89	76.1(73)	76	86	83
80×80×50	88.9	89	60.3	57	86	76
80×80×40	88.9	89	48.3	45	86	73
80×80×32	88.9	89	42.4	38	86	70
90×90×80	101.6	--	88.9	--	95	92
90×90×65	101.6	--	76.1(73)	--	95	89
90×90×50	101.6	--	60.3	--	95	83
90×90×40	101.6	--	48.3	--	95	79
100×100×90	114.3	--	101.6	--	105	102
100×100×80	114.3	108	88.9	89	105	98
100×100×65	114.3	108	76.1(73)	76	105	95
100×100×50	114.3	108	60.3	57	105	89
100×100×40	114.3	108	48.3	45	105	86
125×125×100	139.7	133	114.3	108	124	117
125×125×90	139.7	--	101.6	--	124	114
125×125×80	139.7	133	88.9	89	124	111
125×125×65	139.7	133	76.1(73)	76	124	108
125×125×50	139.7	133	60.3	57	124	105
150×150×125	168.3	159	139.7	133	143	137
150×150×100	168.3	159	114.3	108	143	130
150×150×90	168.3	--	101.6	--	143	127
150×150×80	168.3	159	88.9	89	143	124
150×150×65	168.3	159	76.1(73)	76	143	121
200×200×150	219.1	219	168.3	159	178	168
200×200×125	219.1	219	139.7	133	178	162
200×200×100	219.1	219	114.3	108	178	156
200×200×90	219.1	--	101.6	--	178	152
250×250×200	273	273	219.1	219	216	203
250×250×150	273	273	168.3	159	216	194
250×250×125	273	273	139.1	133	216	191
250×250×100	273	273	114.3	108	216	184
300×300×250	323.9	325	273	273	254	241
300×300×200	323.9	325	219.1	219	254	229
300×300×150	323.9	325	168.3	159	254	219
300×300×125	323.9	325	139.7	133	254	216
350×350×300	355.6	377	323	325	279	270
350×350×250	355.6	377	273	273	279	257
350×350×200	355.6	377	219.1	219	279	248
350×350×150	255.6	377	168.3	159	279	238
400×400×350	406.4	426	355.6	377	305	305
400×400×300	406.4	426	323.9	325	305	295
400×400×250	406.4	426	273	273	305	283
400×400×200	406.4	426	219.1	219	305	273
400×400×150	406.4	426	168.3	159	305	264
450×450×400	457.2	478	406.4	426	343	330
450×450×350	457.2	478	355.6	377	343	330
450×450×300	457.2	478	323.9	325	343	321
450×450×250	457.2	478	273	273	343	308
450×450×200	457.2	478	219.1	219	343	298
500×500×450	508	529	457.2	478	381	368
500×500×400	508	529	406.4	426	381	356
500×500×350	508	529	355.6	377	381	356
500×500×300	508	529	323.9	325	381	346
500×500×250	508	529	273	273	381	333
500×500×200	508	529	219.1	219	381	324

Norminal Pipe Size	Outside Diameter at Bevel				Center to End
DN	D1		D2		C	M
DN	Series A	Series B	Series A	Series B	C	M
350×350×300	356	377	324	325	279	270
350×350×250	356	377	273	273	279	257
350×350×200	356	377	219	219	279	248
350×350×150	356	377	168	159	279	238
400×400×350	406	426	356	377	305	305
400×400×300	406	426	324	325	305	295
400×400×250	406	426	273	273	305	283
400×400×200	406	426	219	219	305	273
400×400×150	406	426	168	159	305	264
450×450×400	457	480	406	426	343	330
450×450×350	457	480	356	377	343	330
450×450×300	457	480	324	325	343	321
450×450×250	457	480	273	273	343	308
450×450×200	457	480	219	219	343	298
500×500×450	508	530	457	480	381	368
500×500×400	508	530	406	426	381	356
500×500×350	508	530	356	377	381	356
500×500×300	508	530	324	325	381	346
500×500×250	508	530	273	273	381	333
500×500×200	508	530	219	219	381	324
550×550×500	559	--	508	--	419	406
550×550×450	559	--	457	--	419	394
550×550×400	559	--	406	--	419	394
600×600×550	610	--	559	--	432	432
600×600×500	610	630	508	530	432	432
600×600×450	610	630	457	480	432	419
650×650×600	660	--	610	--	495	483
650×650×550	660	--	559	--	495	470
650×650×500	660	--	508	--	495	457
700×700×650	711	--	660	--	521	521
700×700×600	711	720	610	630	521	521
700×700×550	711	--	559	--	521	508
750×750×700	762	--	711	--	559	546
750×750×650	762	--	660	--	559	546
750×750×600	762	--	610	--	559	533
800×800×750	813	--	762	--	597	584
800×800×700	813	820	711	720	597	572
800×800×650	813	--	660	--	597	572
850×850×800	864	--	813	--	635	622
850×850×750	864	--	762	--	635	597
850×850×700	864	--	711	--	635	597
900×900×850	914	--	864	--	673	660
900×900×800	914	920	813	820	673	648
900×900×750	914	--	762	--	673	648
950×950×900	965	--	914	--	711	711
950×950×850	965	--	864	--	711	698
950×950×800	965	--	813	--	711	686
1000×1000×950	1016	--	965	--	749	749
1000×1000×900	1016	1020	914	920	749	737
1000×1000×850	1016	--	864	--	749	724
1050×1050×1000	1067	--	1016	--	762	711
1050×1050×950	1067	--	965	--	762	711
1050×1050×900	1067	--	914	--	762	711
1100×1100×1050	1118	--	1067	--	813	762
1100×1100×1000	1118	1120	1016	1020	813	749
1100×1100×950	1118	--	965	--	813	737
1150×1150×1100	1168	--	1118	--	851	800
1150×1150×1050	1168	--	1067	--	851	787
1150×1150×1000	1168	--	1016	--	851	775
1200×1200×1150	1220	--	1168	--	889	838
1200×1200×1100	1220	1220	1118	1120	889	838
1200×1200×1050	1220	--	1067	--	889	838
1300×1300×1200	1320	--	1220	--	958	888
1300×1300×1100	1320	--	1120	--	958	862
1300×1300×1200	1320	--	1020	--	958	841
1400×1400×1300	1420	--	1320	--	1027	956
1400×1400×1200	1420	--	1220	--	1027	938
