ASTM B161/ ASME SB161 Alloy Steel Seamless Pipe and Tube 200 & 201
| Place of Origin | China/Japan/Germany |
|---|---|
| Brand Name | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | SN20140404115045875 |
| Minimum Order Quantity | 0.5-1 tons |
| Price | negotiable |
| Packaging Details | in plastic bags then in bundles |
| Delivery Time | According to the qty |
| Payment Terms | T/T,L/C,Western Union,MoneyGram |
| Supply Ability | 6000TONS/MONTH |
Product Details
| Standard | ASTM B161/ ASME SB161 | Color | White Silver Gold |
|---|---|---|---|
| Types | Nickel Alloy Pipe | Outer Diameter | 4mm OD To 219mm OD |
| Highlight | Alloy Steel Seamless Pipe,Steel Round Pipe |
||
Product Description

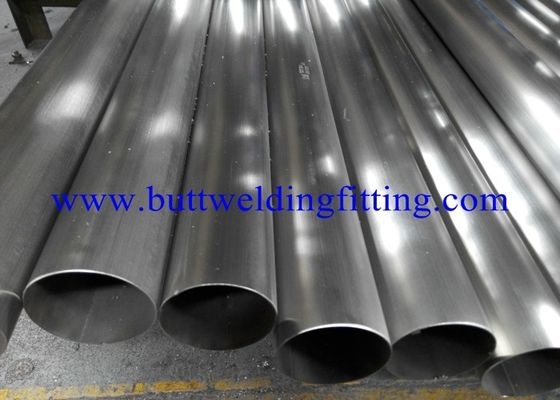

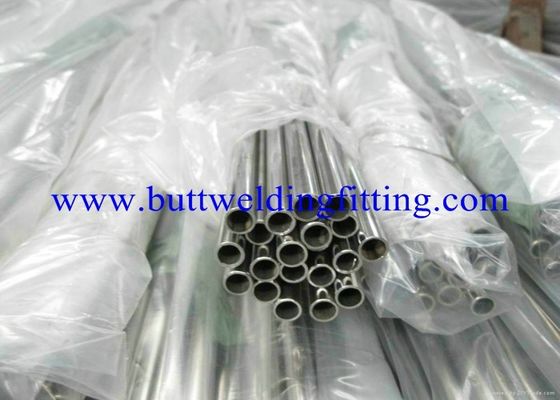

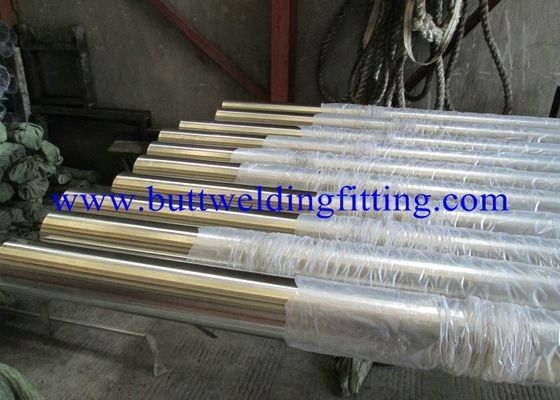

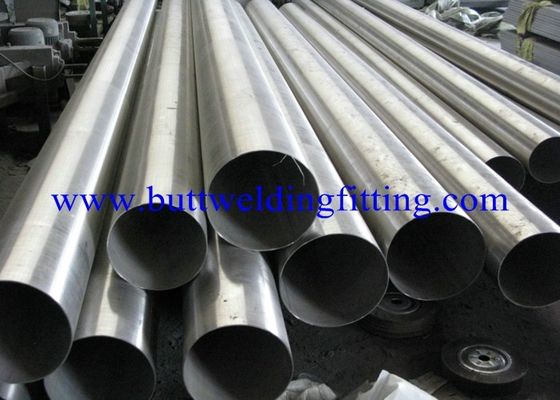

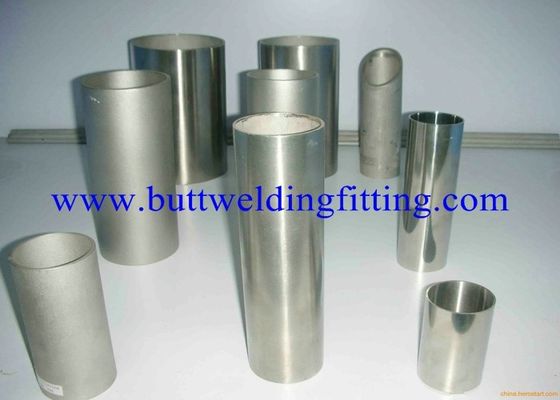

ASTM B161/ ASME SB161 Alloy steel seamless pipe 200 & 201, Nickel Alloy Pipe
Nickel 201 is designated as UNS N02201 and Werkstoff Numbers 2.4061 and 2.4068.
Specifications for Nickel 200 include the following:
Rod and Bar: ASTM B 160; ASME SB 160, DIN 17752, ISO 9723, VdTÜV 345.
Pipe and Tube: ASTM B 161; ASME SB161, ASTM B 163; ASME SB 163, ASTM B 725; ASME SB 725, ASTM B730; ASME SB 730, ASTM B 751; ASME SB 751, ASTM B775; ASME SB 775, ASTM B 829;
ASME SB 829, DIN 17751, ISO 6207, BS 3074 (NA12), VdTÜV 345.
Plate, Sheet & Strip: ASTM B 162/ ASME SB 162, DIN 17750, ISO 6208, BS 3072-3073 (NA12), SAE AMS 5553, VdTÜV 345.
Fittings: ASTM B 366/ ASME SB 366
Forgings: ISO 9725, DIN 17754
Chemical Composition: DIN 17740
Wire: DIN 17753, ISO 9724
Composition of Nickel Alloy 200/201 tubing and pipe
|
Grade |
200 |
201 |
|
UNS Designation |
N02200 |
N02201 |
|
Nickel (Ni) |
99.0 Min. (Plus Cobalt) |
99.0 Min. (Plus Cobalt) |
|
Chromium (Cr) |
— |
— |
|
Iron (Fe) |
0.40 Max. |
— |
|
Molybdenum (Mo) |
— |
— |
|
Titanium (Ti) Max. |
— |
— |
|
Aluminum (Al) Max. |
— |
— |
|
Cobalt (Co) Max. |
— |
— |
|
Tungsten (W) |
— |
— |
|
Vanadium (V) Max. |
— |
— |
|
Copper (Cu) Max. |
0.25 |
0.25 |
|
Manganese (Mn) Max. |
0.35 |
0.35 |
|
Niobium (Nb) plus Tantalum |
— |
— |
|
Carbon (C) Max. |
0.15 |
0.02 |
|
Nitrogen (N) Max. |
— |
— |
|
Silicon (Si) Max. |
0.35 |
0.35 |
|
Sulphur (S) Max. |
0.01 |
0.01 |
|
Phosphorous (P) Max. |
— |
— |
|
Other Elements |
— |
— |
Nickel Alloy 200/201 Product Range
|
Alloy |
UNS Designation |
Werkstoff NR. |
Specifications* |
|
200 |
N02200 |
2.4066 |
B161, B163 |
|
201 |
N02201 |
2.4061 |
B161, B163 |
Nickel Products
NICKEL PIPES and TUBES:
All types of seamless & welded pipes & tubes are available in all sizes and grades.
Grade: Nickel 200 (UNS 02200), Nickel 201 (UNS 02201), Nickel 205 (UNS 205)
Size: 4mm OD to 219mm OD
Wall Thickness: 0.5mm to 20mm
Inconel Pipes
We offer a wide range of inconel pipes made of quality raw material procured from reliable vendors. Known for its high quality, durability and high utility these inconel pipes are widely used in various industries across the globe.
Standards: ASTM / ASME SB 163 / 167 / 517 / 704 / 705
Grades:
• ASTM / ASME UNS 6600 INCONEL 600 Pipes
• ASTM / ASME UNS 6601 INCONEL 601 Pipes
• ASTM / ASME UNS 6625 INCONEL 625 Pipes
• ASTM / ASME UNS 7718 INCONEL 718 Pipes
• ASTM / ASME UNS 7751 INCONEL X-750 Pipes
• ASTM / ASME UNS 8800 INCONEL 800 Pipes
• ASTM / ASME UNS 8810/11 INCOLOY 800H Pipes
• ASTM / ASME UNS 8825 INCOLOY 825 Pipes
