0.5mm to 48mm Thickness Stainless Steel Welded Pipes Solution Annealed & Pickled

China 0.5mm to 48mm Thickness Stainless Steel Welded Pipes Solution Annealed & Pickled supplier
0.5mm to 48mm Thickness Stainless Steel Welded Pipes Solution Annealed & Pickled supplier 0.5mm to 48mm Thickness Stainless Steel Welded Pipes Solution Annealed & Pickled supplier 0.5mm to 48mm Thickness Stainless Steel Welded Pipes Solution Annealed & Pickled supplier 0.5mm to 48mm Thickness Stainless Steel Welded Pipes Solution Annealed & Pickled supplier 0.5mm to 48mm Thickness Stainless Steel Welded Pipes Solution Annealed & Pickled supplier

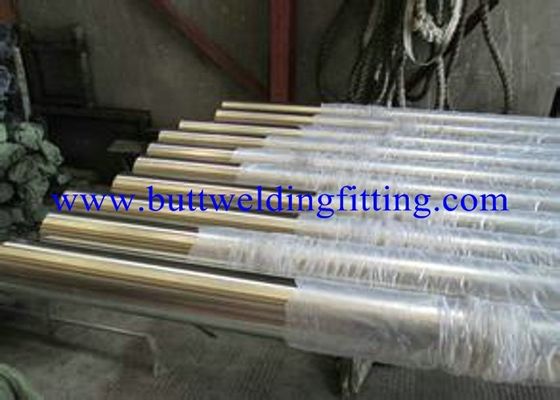

Large Image :  0.5mm to 48mm Thickness Stainless Steel Welded Pipes Solution Annealed & Pickled

Product Details:

Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: TP304,TP304L,TP304H,TP304N,TP310S,TP316,TP316L,TP316Ti,TP316H

Payment & Shipping Terms:

Minimum Order Quantity: 0.5-1 tons
Price: negotiable
Packaging Details: in plastic bags then in bundles
Delivery Time: According to the qty
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 6000TONS/MONTH
Contact Now
Detailed Product Description
Standard:: A312 TP316 316L, ASTM A312 A312M - 12 Color: White Silver Gold
Types:: Stainless Steel Welded Pipe Outer Diameter: 4mm OD To 219mm OD

Stainless Steel Welded Pipes A312 TP304 / 304L, ASTM A790 / A790M - 11, ASTM A269 - 10


Standard Specification

ASTM A249 / A249M - 10a Standard Specification for Welded Austenitic Steel Boiler, Superheater, Heat-Exchanger, and Condenser Tubes
ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked
Austenitic Stainless Steel Pipes
ASTM A358/A358M-08a:Standard Specification for Electric-Fusion-Welded Austenitic
ASTM A778 - 01(2009)e1:Standard Specification for Welded, Unannealed Austenitic Stainless Steel Tubular Products
ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Pipe
We also supply products with BS, JIS , DIN , EN , GOST standard.


Material Grade:



American Standard

Austenitic Steel:

TP304,TP304L,TP304H,TP304N,TP310S,TP316,TP316L,TP316Ti,TP316H,TP317,TP317L,

TP321,TP321H,TP347,

TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...

European Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,

1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

Russian Standard

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2,08Х18Н12Б,10Х17Н13М2Т,

10Х23Н18,08Х18Н10,

08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

Size Range:

Production

 Outside Diameter

Wall Thickness

Welded Pipe

6.00mm to 3600mm

0.5mm to 48mm

Final Finishing:

Solution Annealed & Pickled


Stainless Steel Welded Pipes A312 TP304 / 304L, ASTM A790 / A790M - 11, ASTM A269 - 10, Pickled and Annealed, Plain End - China stainless steel seamless tubes manufacturers,Stainless steel seamless pipes suppliers in china,Stainless steel pipe fittings producers,Stainless steel
Tolerances




AD / OD

Wand / Wall

EN ISO 1127

D1 +/-1,5 %, mind. +/-0,75 mm
D2 +/-1 %, mind. +/-0,50 mm
D3 +/-0,75%, mind. +/-0,30 mm
D4 +/-0,5 %, mind. +/-0,10 mm

T1 +/- 15 %, mind. +/-0,60 mm
T2 +/- 12,5%, mind. +/-0,40 mm
T3 +/- 10 %, mind. +/-0,20 mm
T4 +/- 7,5 %, mind. +/-0,15 mm

ASTM A 999

< 48,26 mm +0,40/-0,79 mm
> 48,26 < 114,3 mm +0,79/-0,79 mm
> 114,3 < 219,1 mm +1,59/-0,79 mm

nicht spezifiziert / not specified +% / -12,5%
