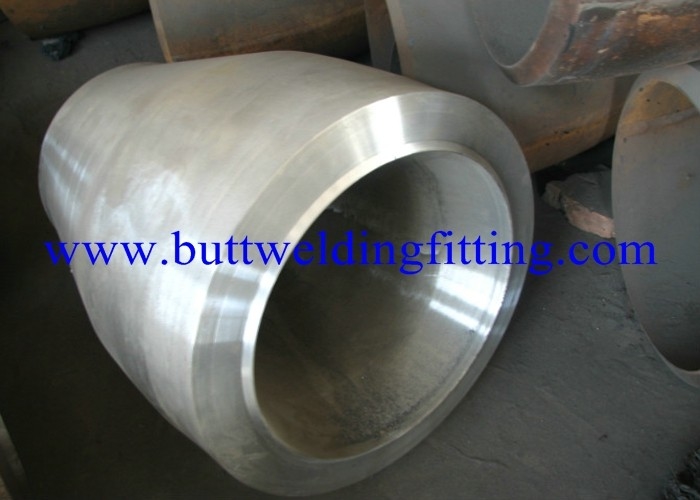

ASTM A403 WP316Ti Pipe Reducer Stainless Steel Cocentric Reducer

ASTM A403 WP316Ti Stainless Steel Reducer Eccentric / Cocentric Reducer



We provide our clients with butt weld fittings that are made from high quality stainless steel by our original manufacturers. Offered in seamless and welded forms, these fittings are precision-made and are offered to our clients in the following specifications:
Form:
1/8" NB TO 48" NB. (Seamless & Welded)
Thickness
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE MR 01-75
Type:
· Elbows in 45 deg, 90 deg, 180 deg, R=1D,1.5D,3D, 5D, 6D, 8D, 10D & 20D.

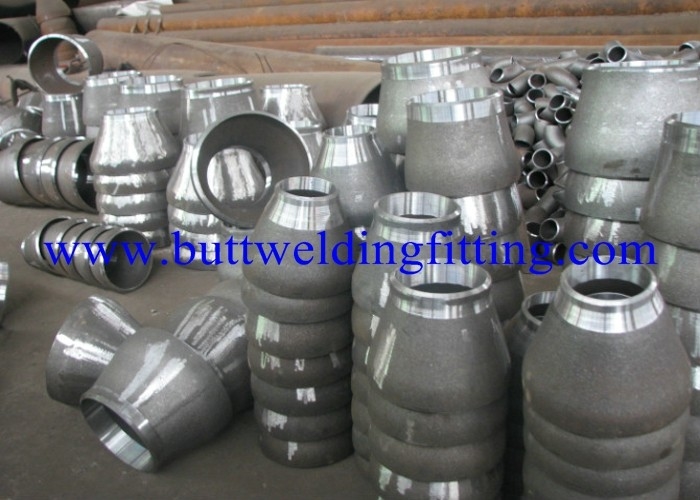

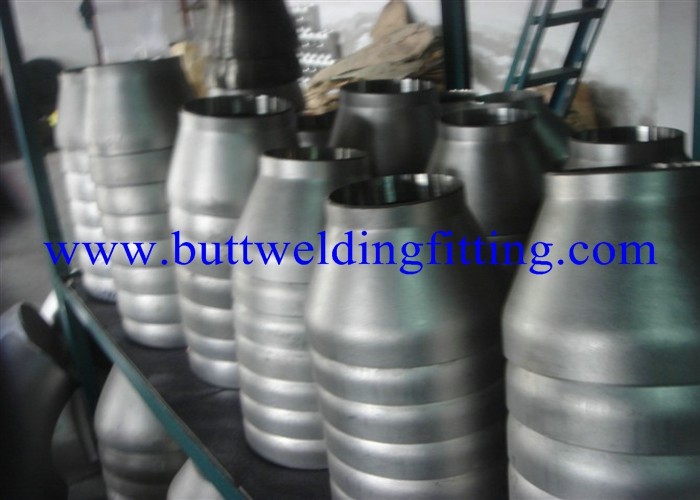

· Eccentric & concentric reducer.
· Caps & crosses.
· Equal & unequal tee.
· Long & short stub end.
Standard:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Material:
Stainless Steel : ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/ etc.
Carbon Steel : ASTM A234 WPB / A420 WPL3/ A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70 etc.
Alloy Steel : ASTM A234 WP1/ WP5/ WP9/ WP11/ WP22/ WP91/ etc.
Other materials : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.

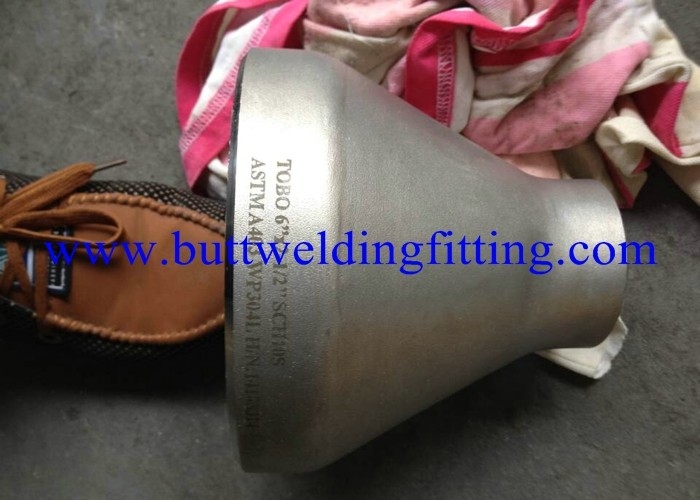

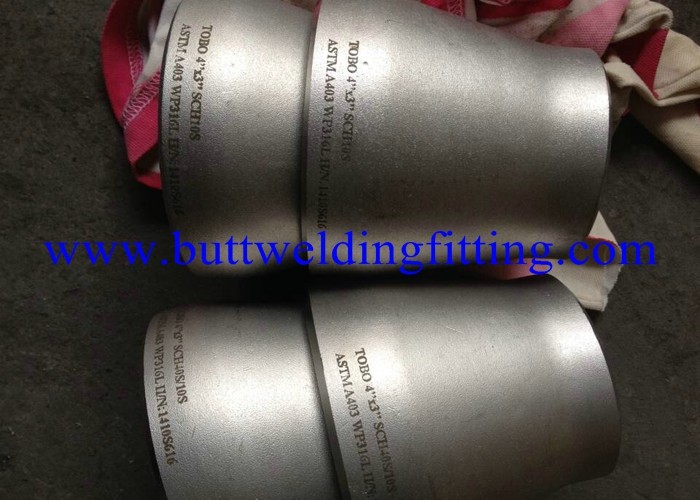

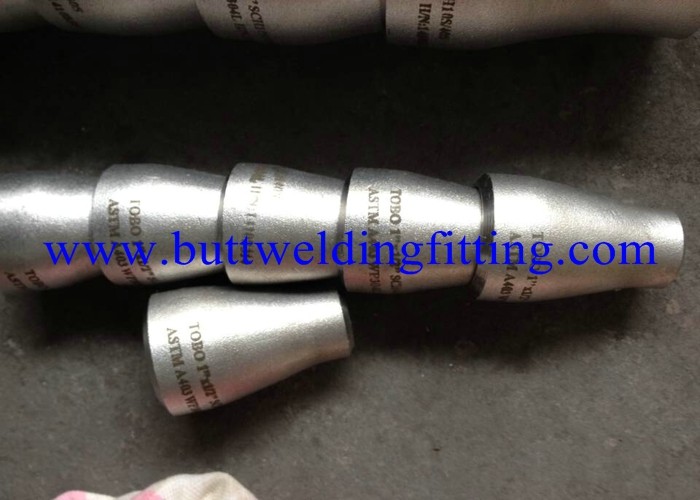

Product name : stainless steel concentric reducer

Item : buttweld-Reducer

Details :

Nominal Diameter Outside Diameter End to End D1*D2 DN NPS Series A Series B H 20×15 3/4×1/2 26.9×21.3 25×18 38 20×10 3/4×3/8 26.9×17.3 25×14 38 25×20 1×3/4 33.7×26.9 32×25 51 25×15 1×1/2 33.7×21.3 32×18 51 32×25 1.1/4×1 42.4×33.7 38×32 51 32×20 1.1/4×3/4 42.4×26.9 38×25 51 32×15 1.1/4×1/2 42.4×21.3 38×18 51 40×32 1.1/2×1.1/4 48.3×42.4 45×38 64 40×25 1.1/2×1 48.3×33.7 45×32 64 40×20 1.1/2×3/4 48.3×26.9 45×25 64 40×15 1.1/2×1/2 48.3×21.3 45×18 64 50×40 2×1.1/2 60.3×48.3 57×45 76 50×32 2×1.1/4 60.3×42.4 57×38 76 50×25 2×1 60.3×33.7 57×32 76 50×20 2×3/4 60.3×26.9 57×25 76 65×50 2.1/2×2 73.0×60.3 76×57 89 65×40 2.1/2×1.1/2 73.0×48.3 76×45 89 65×32 2.1/2×1.1/4 73.0×42.4 76×38 89 65×25 2.1/2×1 73.0×33.7 76×32 89 80×65 3×2.1/2 88.9×73.0 89×76 89 80×50 3×2 88.9×60.3 89×57 89 80×40 3×1.1/2 88.9×48.3 89×45 89 80×32 3×1.1/4 88.9×42.4 89×38 89 90×80 3.1/2×3 101.6×88.9 - 102 90×65 3.1/2×2.1/2 101.6×73.0 - 102 90×50 3.1/2×2 101.6×60.3 - 102 90×40 3.1/2×1.1/2 101.6×48.3 - 102 90×32 3.1/2×1.1/4 101.6×42.4 - 102 100×90 4×3.1/2 114.3×101.6 - 102 100×80 4×3 114.3×88.9 108×89 102 100×65 4×2.1/2 114.3×73.0 108×76 102 100×50 4×2 114.3×60.3 108×57 102 100×40 4×1.1/2 114.3×48.3 108×45 102 125×100 5×4 141.3×114.3 133×108 127 125×90 5×3.1/2 141.3×101.6 - 127 125×80 5×3 141.3×88.9 133×89 127 125×65 5×2.1/2 141.3×73.0 133×76 127 125×50 5×2 141.3×60.3 133×57 127 150×125 6×5 168.3×141.3 159×133 140 150×100 6×5 168.3×114.3 159×108 140 150×90 6×3.1/2 168.3×101.6 - 140 150×80 6×3 168.3×88.9 159×89 140 150×65 6×2.1/2 168.3×73.0 159×76 140 200×150 8×6 219.1×168.3 219×159 152 200×125 8×5 219.1×141.3 219×133 152 200×100 8×4 219.1×114.3 219×108 152 200×90 8×3.1/2 219.1×101.6 - 152 250×200 10×8 273.0×219.1 273×219 178 250×150 10×6 273.0×168.3 273×159 178 250×125 10×5 273.0×141.3 273×133 178 250×100 10×4 273.0×114.3 273×108 178 300×250 12×10 323.9×273.1 325×273 203 300×200 12×8 323.9×219.1 325×219 203 300×150 12×6 323.9×168.3 325×159 203 300×125 12×5 323.9×141.3 325×133 203 350×300 14×12 355.6×323.9 377×325 330 350×250 14×10 355.6×273.0 377×273 330 350×200 14×8 355.6×219.1 377×219 330 350×150 14×6 355.6×168.3 377×159 330 400×350 16×14 406.4×355.6 426×377 356 400×300 16×12 406.4×323.9 426×325 356 400×250 16×10 406.4×273.0 426×273 356 400×200 16×8 406.4×219.1 426×219 356 450×400 18×16 457×406.4 478×426 381 450×350 18×14 457×355.6 478×377 381 450×300 18×12 457×323.9 478×325 381 450×250 18×10 457×273.0 478×273 381 500×450 20×18 508×457 529×478 508 500×400 20×16 508×406.4 529×426 508 500×350 20×14 508×355.6 529×377 508 500×300 20×12 508×323.9 529×325 508 550×500 22×20 559×508 - 508 550×450 22×18 559×457 - 508 550×400 22×16 559×406.4 - 508 550×350 22×14 559×355.6 - 508 600×550 24×22 610×559 - 508 600×500 24×20 610×508 630×529 508 600×450 24×18 610×457 630×478 508 600×400 24×22 610×406.4 630×426 508 650×600 26×24 660×610 - 610 650×550 26×22 660×559 - 610 650×500 26×20 660×508 - 610 650×450 26×18 660×457 - 610 700×650 28×26 711×660 - 610 700×600 28×24 711×610 720×630 610 700×550 28×22 711×559 - 610 700×500 28×20 711×508 720×530 610 750×700 30×28 762×711 - 610 750×650 30×26 762×660 - 610 750×600 30×24 762×610 - 610 750×550 30×22 762×559 - 610 800×750 32×30 813×762 - 610 800×700 32×28 813×711 820×720 610 800×650 32×26 813×660 - 610 800×600 32×24 813×610 820×630 610 850×800 34×32 864×813 - 610 850×750 34×30 864×762 - 610 850×700 34×28 864×711 - 610 850×650 34×26 864×660 - 610 900×850 36×34 914×864 - 610 900×800 36×32 914×813 920×820 610 900×750 36×30 914×762 - 610 900×700 36×28 914×711 920×720 610 950×900 38×36 965×914 - 610 950×850 38×34 965×864 - 610 950×800 38×32 965×813 - 610 950×750 38×30 965×762 - 610 1000×950 40×38 1016×965 - 610 1000×900 40×36 1016×914 1020×920 610 1000×850 40×34 1016×864 - 610 1000×800 40×32 1016×813 1020×820 610 1050×1000 42×40 1067×1016 - 610 1050×950 42×38 1067×965 - 610 1050×900 42×36 1067×914 - 610 1050×850 42×34 1067×864 - 610 1100×1050 44×42 1118×1067 - 610 1100×1000 44×40 1118×1016 1120×1020 610 1100×950 44×38 1118×965 - 610 1100×900 44×36 1118×914 1220×920 610 1150×1100 46×44 1168×1118 - 711 1150×1050 46×42 1168×1067 - 711 1150×1000 46×40 1168×1016 - 711 1150×950 46×38 1168×965 - 711 1200×1150 48×46 1220×1168 - 711 1200×1100 48×44 1220×1118 1220×1120 711 1200×1050 48×42 1220×1067 - 711 1200×1000 48×40 1220×1016 1220×1020 711
