Place of Origin: | China/Japan/Germany |
---|---|
Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
Certification: | ISO/PED/TUV/SGS/LR/BV |
Model Number: | ASME B42 |
Minimum Order Quantity: | 300 Kilogram/Kilograms |
Price: | US $ 10 - 100 / Kilogram |
Packaging Details: | Plywood cases or customized |
Delivery Time: | 7-30days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 50 Metric Ton/Metric Tons per Month |
Product Name: | Copper Tube | Product Type: | Straight Copper Pipe |
---|---|---|---|
Elongation (≥ %): | 40% | Ultimate Strength (≥ MPa): | 205MPA |
Application: | Air Condition Or Refrigerator | Outside Diameter:: | 1.6MM-359MM |
Wall Thickness:: | 0.25mm-10mm | Place Of Origin: | China |
Cu (Min): | 99.9% | ||
Highlight: | Copper Nickel Alloy Pipe,copper nickel pipe |

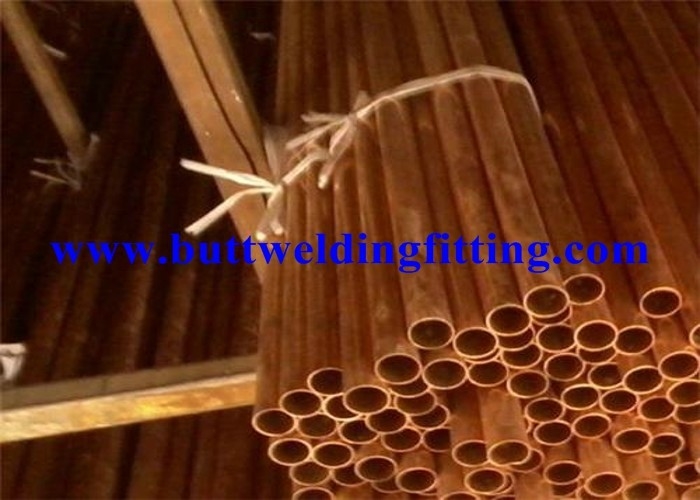

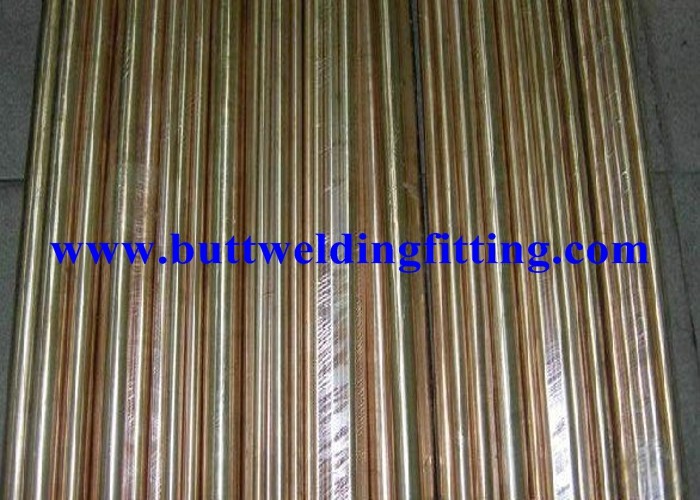

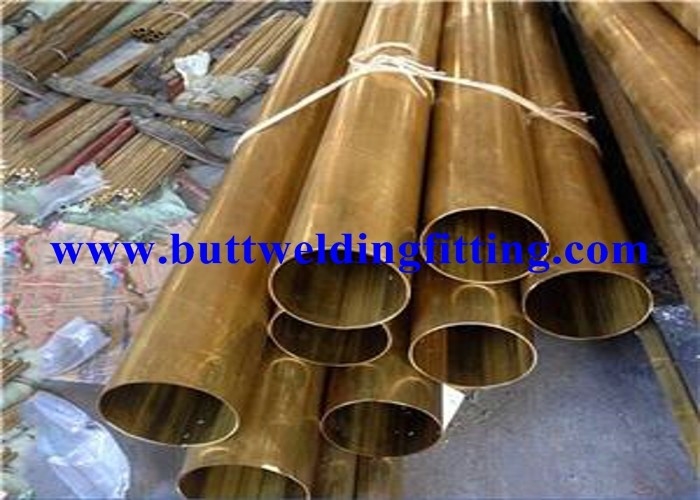

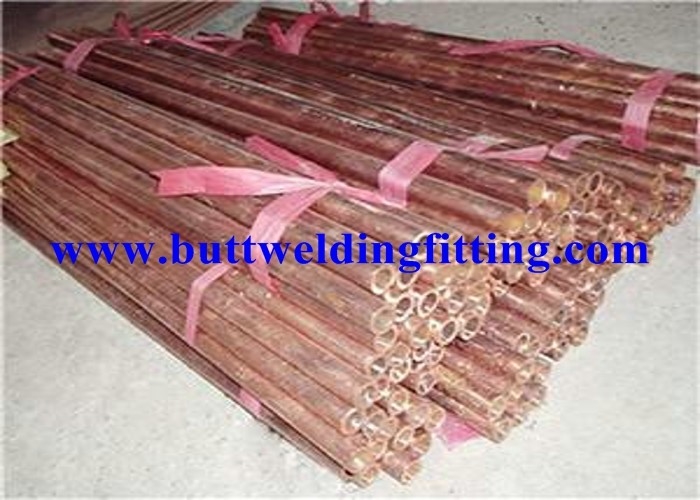

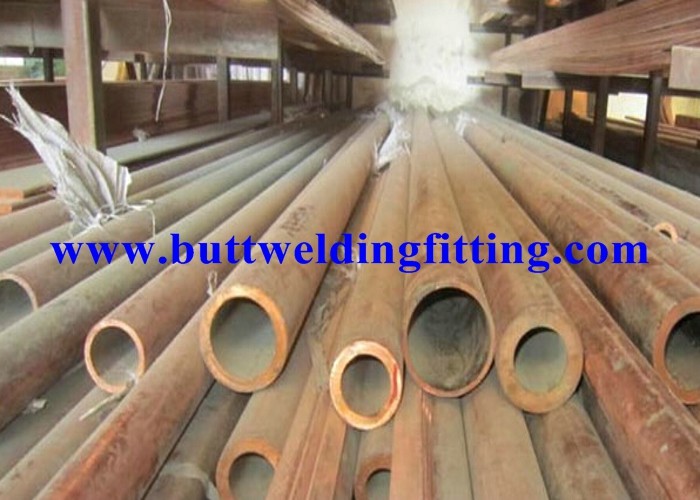

Round Seamless Copper Tube With ASTM B42 For Air Conditioning
Type: |
Straight Copper Pipe
|
Application: |
Air Condition Or Refrigerator
|
Specification: |
ASTM B280,ASTM B88,ASM B75,ASTM B42,JIS H3300,EN1057
|
Outer Diameter: |
1.6MM-359MM
|
Grade: |
Cu+Ag≥99.9% P: 0.015~0.040
|
Thickness: |
0.25mm-10mm
|
Length: |
upto 40meters, custom-made seamless copper tube and pipe
|
Cu (Min): |
99.9%
|
Alloy Or Not: |
Non-alloy
|
Ultimate Strength (≥ MPa): |
205MPA
|
Elongation (≥ %): |
40%
|
Wall Thickness: |
0.25mm-10mm
|
Outside Diameter: |
1.6mm to 359mm
|
Model Number: |
TOBO
|
Place of Origin: |
Shanghai, China (Mainland)
|
Surface Quality: |
Bright Annealing
|
place of origin: |
China
|
Packaging Details: | Bundle, Wooden cases, Steel-framed wooden case; Package size being stronge and waterproof, with size: width around 50cm x height around 50cm x Length; then into 20feet GP or OT or HQ, 40feet GP or OT or HQ, 45 feet HQ; |
Delivery Detail: | Shipped in 40 days after payment |
Seamless Copper Tube Price for Air Condition
1.The seamless copper tube with standard ASTM B280 is specially used for air condition purpose,like: air conditioner or refrigerator or Freezer;
2. Chemical Composition for air-condition seamless copper tube: 99.9% Cu minimum;
3.Temper for air-condtion seamless copper tube: hard, half hard and soft
4.Supply Form for air-condition seamless copper tube: straight type, pancake coil tube, LWC, bunch coil;
5.Our Advantage: Factory direct supply, 100% quality assurance without leaking, Competitve Price, Fast Delivery, Free Usage Guidance from our professional engineers over 10years experience, Professional Service with Over 10 years' export;
Designation | Title |
B42-02 | Standard Specification for Seamless Copper Pipe, Standard Sizes |
B68-02 | Standard Specification for Seamless Copper Tube, Bright Annealed |
B75-02 | Standard Specification for Seamless Copper Tube |
B88-03 | Standard Specification for Seamless Copper Water Tube |
B111-98 | Standard Specification for Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock |
B280-03 | Standard Specification for Seamless Copper Tube for Air Conditioning and Refrigeration Field Service |
B447-02 | Standard Specification for Welded Copper Tube |
B640-00 | Standard Specification for Welded Copper Tube for Air Conditioning and Refrigeration Service |
