But Weld Fittings Lap Joint Stub End Super Duplex UNS S32760 F55 ASTM A182 F55 SA182 F55 DIN 1.4501

China But Weld Fittings Lap Joint  Stub End  Super Duplex UNS S32760 F55 ASTM A182 F55 SA182 F55 DIN 1.4501 supplier

Large Image :  But Weld Fittings Lap Joint Stub End Super Duplex UNS S32760 F55 ASTM A182 F55 SA182 F55 DIN 1.4501

Product Details:

Place of Origin: CHINA
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Duplex UNS S32760 F55 ASTM A182 F55 SA182 F55 DIN 1.4501

Payment & Shipping Terms:

Minimum Order Quantity: 2PCS
Price: Negotiation
Packaging Details: PLY-WOODEN CASE OR PALLET
Delivery Time: 15DAYS
Payment Terms: T/T, L/C, Western Union
Supply Ability: 9980000PCS Per Month
Detailed Product Description
Material: Duplex UNS S32760 F55 ASTM A182 F55 SA182 F55 DIN 1.4501 Standard:: ANSI/ASTM B16.9/ B16.11
Manufacturing Process: Push, Press, Forge, Cast, Etc. Application: Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc
Packaging Details:: Butt Welding Pipe Fitting Commonly Should Be Shipped In Wooden Cases, Wooden Pallets Or As Per Customers Request

But Weld Fittings Lap Joint  Stub End  Super Duplex UNS S32760 F55 ASTM A182 F55 SA182 F55 DIN 1.4501





ZERON 100 Super Duplex



ZERON® 100 (F55 Duplex, 25cr Duplex) is a super duplex stainless steel that complies with UNS S32760, made for use in aggressive environments. Its properties include:

    • Resistant to pitting and crevice corrosion in warm seawater with a guaranteed corrosion performance (PREN > 40)
    • Lower more stable price compared to nickel based alloys
    • Excellent resistance to stress corrosion cracking in both chloride and sour environments
    • Superior resistance to sulfuric acid at most concentrations
    • Improved resistance over austenitic stainless to erosion corrosion and corrosion fatigue

  • High Strength (80,000 psi minimum Yield Strength) permitting designs to reduce weight versus other corrosion resistant alloys
  • Readily weldable using ZERON 100X filler metal

While ZERON 100 complies with UNS S32760, Rolled Alloys tightly controls the chemistry and production of ZERON 100 in strict accordance with the requirements of our in-house which are tighter than standard ASTM specifications.



Performance Profile

ZERON 100 was developed as a seawater resistant material for pump applications in the North Sea as a cast material. Its excellent performance, led to demand for the alloy in a wider range of product forms and the development of wrought product forms. The corrosion resistance and strength properties of ZERON 100 have led to its widespread adoption in a range of industries. Oil and gas applications include process, seawater, firewater and subsea pipework systems, with associated risers, manifolds, pressure vessels, valves and heat exchangers. Applications of ZERON® 100 (UNS S32760) in other industries include pollution control equipment such as flue gas desulfurization equipment (FGD), pulp and paper, power generation, chemical, pharmaceutical, desalination, mining, metallurgical and marine industries.

Optimized versions of ZERON 100 are available for specific applications. These include:

  • ZERON 100 FG (fastener grade) which is a strain hardened bar product available up to 2-1/2 inch diameter for high strength fasteners. ZERON 100 FG is made to ASTM A276 condition S and also meets the tensile properties for ASTM A193 grade B7. It meets charpy impact toughness of 40 Joules (29.5 ft.lbf.) minimum at -50°C (-58°F).
  • ZERON 100X overalloyed weld filler for welding of ZERON 100 to itself and other stainless steels.
  • ZERON 100M matching weld filler for welding ZERON 100 components that will be post weld annealed.
  • ZERON 100HS (high strength) wire for slick line applications in oil and gas.

F55 Duplex

Chemistry

  Cr Ni Mo Cu W C N Mn Si P S Fe
MIN 24.0 6.0 3.0 0.5 0.5 -- 0.2 -- -- -- -- --
MAX 26.0 8.0 4.0 1.0 1.0 0.03 0.3 1.0 1.0 0.030 0.010 Balance

PREN = %Cr + 3.3x%Mo + 16x%N    ZERON 100 PREN > 40

For standards ISO 15156/NACE MR0175 and BS 4515-2 a different PREN formula including tungsten is used.  Using the formula PREN = %Cr 3.3(%Mo + 0.5x%W) + 16x%N, ZERON 100 has a  PREN > 41

Specifications

ASTM A 182, ASTM A 182 (Grade F55), ASTM A 240, ASTM A 276, ASTM A 473, ASTM A 479, ASTM A 790, ASTM A 815, ASTM A314
NORSOK MDS 055
UNS S32760
W. Nr./EN 1.4501



ZERON® 100 Billet, ZERON® 100 Fittings, ZERON® 100 Flanges, ZERON® 100 Pipe, ZERON® 100 Plate, ZERON® 100 Round Bar, ZERON® 100 Sheet, ZERON® 100 Welding Products

Common Trade Names

Super Duplex Stainless, UNS S32760, F55 Duplex, EN 1.4501, 25Cr Duplex, Super Duplex 2507

Mechanical Properties

Temperature, °F 68 212 302 392 482
Ultimate Tensile Strength, ksi 109 102 99 97 94
0.2% Offset Yield Strength, ksi 80 68 65 62 58

Design Stresses – Pressure Vessels (ASME)

ZERON 100 (UNS S32760) is covered for ASME Section VIII, Division 1 construction by code case 2245 and in Section III, Division 1 by Case N-564-2. It is also included in B16.5 (Pipe Flanges and Flanged Fittings), B16.34 (Valves - Flanged, Threaded, and Welding End), 16.47 (Large Diameter Steel Flanges: NPS 26 through NPS 60), B31.3 (process Piping).

Temp, °F 100 200 300 400 500 600
Zeron 1001 31.1 ksi 31.0 ksi 29.4 ksi 29.0 ksi 29.0 ksi 29.0 ksi
22051 25.7 ksi 25.7 ksi 24.8 ksi 23.9 ksi 23.3 ksi 23.1 ksi
AL-6XN®1 27.1 ksi 27.1 ksi 25.7 ksi 24.6 ksi 23.8 ksi 23.3 ksi
ZERON 1002 36.3 ksi 35.9 ksi 34.4 ksi 34.0 ksi 34.0 ksi 34.0 ksi



1 ASME Section VIII, Division 1; 2ASME B31.3



ZERON 100 compares favorably in chloride pitting resistance to more expensive 6% molybdenum alloys and is superior to 2205 or 316L.

Alloy % Mo CCCT, °F CPT, °F PREN
316L 2.1 < 28 68 24
2205 3.1 68 120 35
904L 4.4 75 130 36
ZERON 100 3.5 108 180 41
AL-6XN 6.2 110 172 44
625 9.0 113 - 51
C22 13 - - 64
C-276 15.5 130 > 217 67

* CCCT - 10% FeCl3 6H20, per ASTM G 48 Practice B, CPT - 1 M NaCl, per ASTM G 150, PREN = Cr + 3.3 Mo + 16N

The copper addition in ZERON 100 is responsible for its enhanced resistance to sulfuric acid. ZERON 100 super duplex is superior to the more expensive grades such as alloy 20 or alloy 825 and is superior to duplex 2205 and 2507 super duplex at most concentrations. ZERON 100 super duplex also compares favorably to high silicon austenitic stainless steels, such as ZeCor®, SX, and Saramet in hot concentrated sulfuric acid. The iso-corrosion curves below show the 0.1 mm/year (0.004 ipy) corrosion lines for ZERON 100 super duplex and other alloys in dilute sulfuric and concentrated sulfuric acid





lap joint stub end lap joint stub end lap joint stub end

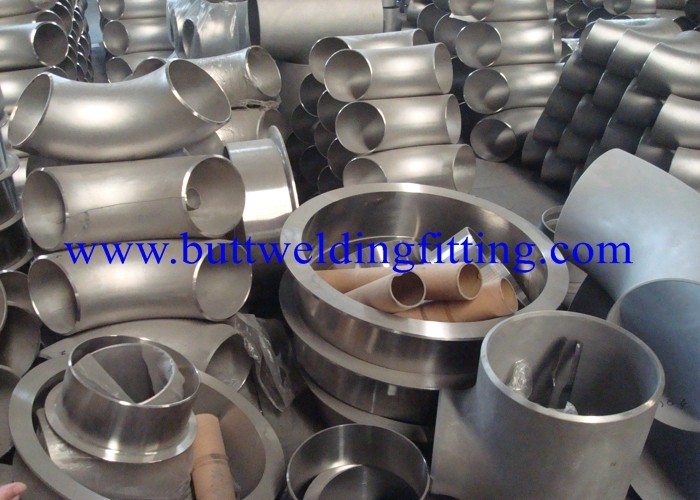

Product name : lap joint stub end
Item : buttweld-Lap Joint Stub End
Details :


Nominal Pipe Size

Outside Diameter at Bevel
Length

Radius of Fillet

Diameter of Lap
A
B
NPS
D
L
R
G
1/2
3/4
1
21.3
26.7
33.4
51
51
51
3.0
3.0
3.0
0.8
0.8
0.8
35
43
51
11/4
11/2
2
42.2
48.3
60.3
51
51
64
5.0
6.0
8.0
0.8
0.8
0.8
64
73
92
21/2
3
31/2
73.0
88.9
101.6
64
64
76
8.0
10.0
10.0
0.8
0.8
0.8
106
127
140
4
5
6
114.3
141.3
168.3
76
76
89
11.0
11.0
13.0
0.8
1.6
1.6
157
185
218

8
10
12

219.1
273.0
323.8
102
127
152
13.0
13.0
13.0
1.6
1.6
1.6
270
324
381
14
16
18
355.6
406.4
457.0
152
152
152
13.0
13.0
13.0
1.6
1.6
1.6
413
470
533
20
22
24
508.0
559.0
610.0
152
152
152
13.0
13.0
13.0
1.6
--
1.6
584
641
692

Minimum lap thickness shall not be less than nominal wall thickness.
Contact faces of stub ends shall have a concentric serration or spiral according to the purchaser's requirements.
These lengths and radius apply for schedule 40s or thinner stainless steel pipes.
Radius of fillet B is only effective to MSS SP-43 lap joint stub ends.
