31254 F44 Stainless Steel Spiral Wound Gasket For High Temperature Water

China 31254 F44 Stainless Steel Spiral Wound Gasket For High Temperature Water supplier
31254 F44 Stainless Steel Spiral Wound Gasket For High Temperature Water supplier 31254 F44 Stainless Steel Spiral Wound Gasket For High Temperature Water supplier 31254 F44 Stainless Steel Spiral Wound Gasket For High Temperature Water supplier 31254 F44 Stainless Steel Spiral Wound Gasket For High Temperature Water supplier 31254 F44 Stainless Steel Spiral Wound Gasket For High Temperature Water supplier 31254 F44 Stainless Steel Spiral Wound Gasket For High Temperature Water supplier

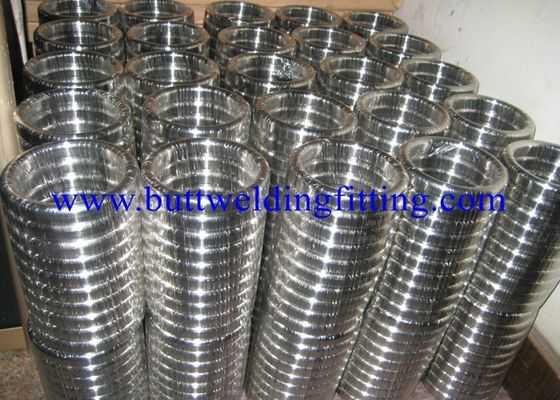

Large Image :  31254 F44 Stainless Steel Spiral Wound Gasket For High Temperature Water

Product Details:

Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: flat gasket; flat ring gasket; flat metal gasket; non graphited compressed white asbestos gasket;natural white rubber gasket;compressed asbestos class gasket;PTFE impregnated asbestos gasket;double jacketed gasket;non-metallic gasket;lens gasket;octagonal

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: 0.1USD

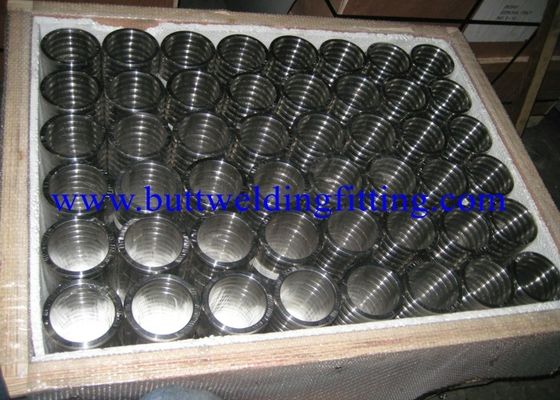

Packaging Details: PLY-Wooden Case
Delivery Time: 3-15workdays
Payment Terms: Western Union, MoneyGram
Supply Ability: 3000000pcs/Year
Contact Now
Detailed Product Description
Product Name: Stainless Steel Gasket Model Number: 311803 Duplex Stainless Steel Gasket
Standard Or Nonstandard: Standard Standard: DlN EN 1514-4
High Light:

Stainless Steel Gasket

,

Flat Ring Gasket

Spiral Wound Gasket ,high quality 31254 F44 corrugated gaskets,flat metal gasket  Stainless Steel Gasket.

1. We are professional manufacturer of Corrugated Metal Gasket.
2. We promise the best quality and fast delivery.
3. Best service will be provided for you!

Corrugated Metal Gasket Description:
As the name suggests, the solid corrugated metal gasket is comprised solely of metal and does not contain any non-metallic fillers in its construction. The temperature limitation of the gasket is only affected by the metal selected.

Style 100, a Corrugated Metal Gasket, has corrugations that provide multi-seals across the face of the gasket. Pitch of of the corrugations can be 1/8", 3/16" or 1/4". Three concentric corrugations on each side of the gasket are suggested. Where practical a flat area should be left on each side of the corrugations.

Style 102, a Single-Jacketed Gasket, is a Corrugated Metal Gasket enclosed in a flat metal jacket that covers the inside and outside diameters of the gasket and the contact surface on one side.

Typically used for high temperature applications and applications involving steam, water, gas, oil etc. up to 1000 psi in the case of Style 129 and 102, and up to 500 psi in the case of Style 100.

Corrugated Metal Gasket Prime Features:
• Surface configuration with corrugations enables the gasket to adapt to rough or irregular flange surfaces w ithout undue compressive load.
• Provides efficient seal under varying conditions of temperature and pressure.
• Can be custom made in any suitable metal.

Corrugated Metal Gasket General Properties:
• Good blow-out resistance
• Economical
• Suitable for high temperatures
• Easy to handle and install

Corrugated Metal Gasket Prime Features:

Surface configuration with corrugations enables the gasket to adapt to rough or irregular flange surfaces without undue compressive load.

Provides efficient seal under varying conditions of temperature and pressure.

Can be custom made in any suitable metal.


Corrugated Metal Gasket Physical Properties:
• Metal core nominal thickness: 0.5mm (standard), 0.6mm and 0.7mm, before corrugating
• In the delivery condition, the total thickness of a gasket with graphite layers amounts to app. 2.3mm, resulting from the 1.3mm corrugated ring and one layer 0.5 graphite each side
• Nominal pitch of corrugations: max. 3mm
• Graphite facing thicknesses: 0.5mm standard and 0.8mm on request
• Also available with a U-Shaped Eyelet fitted to the bore and the outside periphery of the gasket. The eyelet fitted to the bore prevents contamination of the process media and protects the graphite from the process media
• Graphite standard purity, 98% graphite, density 1.0 g. cm³
• Surface identification: size, material and manufacturer


Core Material

Max. Temperature





Stainless Steel

1000-1600°F535-870°C)



Carbob Steel

800°F425°C





Brass

500°F260°C





Copper

600°F315°C)





Aluminum

800°F(425°C





Monel

1500°F(815°C





Nickel

1400°F760°C





Inconel

2000°F1100°C



Facing Material

Max. Temperature

Pressure at Room Temp





Min.Mpa(PSI)

Max.Mpa(PSI)

Flexible Graphite

500°C932°F

17(2500

500(72500)

Non-Asbestos Sheet

400°C752°F

233300

500(72500)

PTFE

260°C500°F

172500

500(72500)




Metal ring gasket is sealed pressure pipe flange ,an applied to oil and gas pressure vessel, submarine, high-speed joint surface, high temperature and high pressure valve cover joint.There are a variety of materials and in a form suitable for the different design and operational requirements, completely compliance with ANSI B16.20. In the new flat type grooved flange, the common black iron, stainless steel elliptical(Oval) and the octagonal can be used interchangeably. the company can in the most short period of delivery.
Note: the metal ring material hardness selected should be lower than 15~20 HB flange, and the old product is not recommended for repeated use, because the material hardening and damage may occur and the flange or the sealing performance.
Hollow metal O - ring is made of high temperature resistant and no corrosion of stainless steel tube production. It could make holes in the inner or outer of the hollow metal o ring, when the pressure goes up,that self sealing function will work. The o ring with the small holes of the ring, especially the application of pressure over 70kgf/cm ², it can handle more pressure than the basic O type ring. The hollow metal ring based on customer needs, as PTFE plated or silver plating and surface.

Material
Max Hardness
HBS    HRB
Max Temperature
Abbreviation
304
160      83
700
304
304L Stainless Steel
150      80
450
304L
316 Stainless Steel
160      83
700
316
316L Stainless Steel
150      80
450
316L
321 Stainless Steel
160      83
700
321
410 Stainless Steel
170      86
650
310
347 Stainless Steel
160      83
700
347
Carbon Steel
-40 -130
5401000
CRS
