Nickel cooper alloy UNS N05500 Monel K-500 Forged Steel Flanges 200"

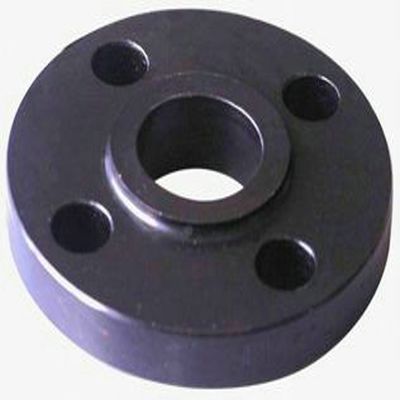

  • Nickel cooper alloy UNS N05500 Monel K-500 Forged Steel Flanges 200"

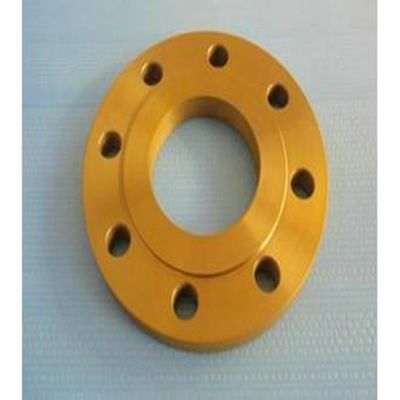

  • Nickel cooper alloy UNS N05500 Monel K-500 Forged Steel Flanges 200"

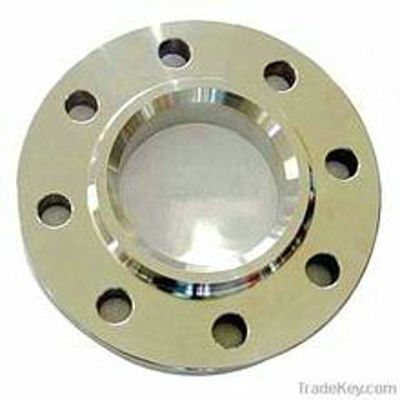

  • Nickel cooper alloy UNS N05500 Monel K-500 Forged Steel Flanges 200"

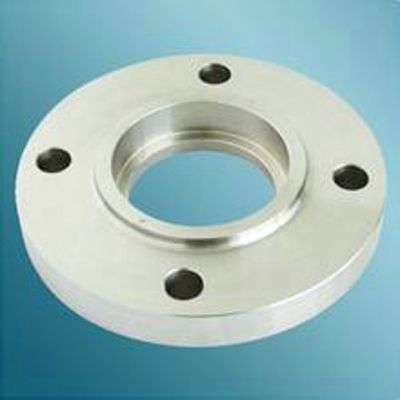

  • Nickel cooper alloy UNS N05500 Monel K-500 Forged Steel Flanges 200"
Place of Origin China
Brand Name TOBO
Certification ABS ,CC ,TUV,CC ,GL ,BV ,ISO14001 ,ISO9001 ,OHSMS
Model Number TOBO-0054
Minimum Order Quantity 1PCS
Price 55 USD per pcs
Packaging Details Wooden cases, pallets, nylon bags or according to the customers' requirements
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 1118000 pcs per month
Product Details
Product Name TOBO Butt Welding Fitting Flange Material 90/10 Copper Nickel Alloy
Standard ANSI,DIN,JIS,BS,EN1092-1 Application For Seal Or Connect Of Pipe/tub-e Lines
Size DN15 (1/2") To DN5000 (200") Technics Forged
Place Of Origin China Type Flange
Highlight

forgings flanges and fittings

,

butt weld flanges
Leave a Message
Product Description

Nickel cooper alloy UNS N05500 Monel K-500 flange monel 400 flange in Nickel

Model NO.:TOBO GROUP
Standard:ANSI, DIN, GB, JIS, Bs En1092-1
Type:Welding Flange
Material:90/10 Copper Nickel Alloy
Structure:Flanges
Connection:Flanged
Manufacturing Way:Forging
Export Markets:Global


MONEL®alloy K-500 (UNS N05500/ W.Nr. 2.4375) is a nickel-copper alloy which combines the excellent
corrosion resistance of MONEL alloy 400 with the added advantages of greater strength and hardness.

The increased properties are obtained by adding aluminum and titanium to the nickel-copper base,

and by heating under controlled conditions so that submicroscopic particles of Ni 3 (Ti, Al) are precipitated

throughout the matrix. The thermal processing used to effect precipitation is commonly called age hardening oraging. The composition of the alloy is given in Table 1. Typical applications for MONEL alloy K-500
products are chains and cables, fasteners and springs for marine service; pump and valve components for
chemical processing; doctor blades and scrapers for pulp processing in paper production; oil well drill
collars and instruments, pump shafts and impellers, non-magnetic housings, ety lifts and valves for oil
and gas production; and sensors and other electronic components.

Additional Info.

Trademark:as request
Packing:Pallets
Standard:DIN/ANSI
Origin:China
HS Code:75894612000
Production Capacity:100000PCS/Month



Product Description

Characteristics of Copper Nickel Alloy ;

  • Good Resistance to stress corrosion & cavitation erosion.
  • Excellent resistance to sea water
  • Good thermal stability (up to approx. 300 )
  • Good cold - workability
  • Good Welding and solder properties.

Nickel cooper alloy UNS N05500 Monel K-500 Forged Steel Flanges 200"



Comparison Table of Standard Specifications for Cu-Ni 90/10 FLANGE



Specification



UNS W.Nr
N05500 2.4375





Chemical composition



Grade % Ni Cu Al Ti Fe Mn S C Si
K500 Min 63 27.0 2.30 0.35
Max   33.0 3.15 0.85 2.0 1.5 0.01 0.25 0.5





Mechanical properties:(Minimum value at 20°C)



Tensile Strength

σb/MPa

Yield Strength

σp0.2/MPa

Elongation

σ5 /%
1100 790 20






DIN 17664

2.0872

DIN 86019

2.1972

BS 2871

CN 102

EEMUA

144-1987

UNS C7060x

MIL-T-16420K

ASTM B 466

C 70600

JIS H 3300

C 7060T

Cu+Ni+Fe

Cu%

Ni%

Fe%

Mn%

C %

Pb%

S %

P%

Zn%

Other imp.

rem.

9.0 - 11.0

1.0 - 2.0

0.5 - 1.0

max. 0.05

max. 0.03

max. 0.02

max. 0.02

max. 0.50

max. 0.30

rem.

9.0 - 11.0

1.5 - 1.8

0.5 - 1.0

max. 0.05

max. 0.01

max. 0.005

max. 0.02

max. 0.05

max. 0.20

rem.

10.0 - 11.0

1.0 - 2.0

0.5 - 1.0

max. 0.05

max. 0.01

max. 0.05

-

-

max. 0.30

rem.

10.0 - 11.0

1.5 - 2.0

0.5 - 1.0

max. 0.05

max. 0.01

max. 0.02

max. 0.02

max. 0.20

max. 0.30

rem.

9.0 - 11.0

1.0 - 1.8

max. 1.00

max. 0.05

max. 0.02

max. 0.02

max. 0.02

max. 0.50

-

rem.

9.0 - 11.0

1.0 - 1.8

0.2 - 1.0

-

max. 0.05

-

-

max. 0.50

Cu+Ni+Fe+Mn : min 99.5%





Comparison Table of Standard Specifications for Cu-Ni 70/30 Pipe





DIN 17664

2.0882

BS 2871

CN 107

MIL-T-16420K

ASTM B 466

C 71500

JIS H 3300

C 7150T

Cu%

Ni%

Fe%

Mn%

C %

Pb%

S %

P%

Zn%

Other imp.

rem.

30.0 - 32.0

0.4 - 1.0

0.5 - 1.5

max. 0.05

max. 0.03

max. 0.02

max. 0.02

max. 0.50

max. 0.30

rem.

30.0 - 32.0

0.4 - 1.0

0.5 - 1.5

max. 0.06

max. 0.01

max. 0.08

-

-

-

rem.

29.0 - 33.0

0.4 - 1.0

max. 1.00

max. 0.05

max. 0.02

max. 0.02

max. 0.02

max. 0.50

-

rem.

29.0 - 33.0

0.4 - 1.0

0.2 - 1.0

-

max. 0.05

-

-

max. 0.50

Cu+Ni+Fe+Mn : min 99.5%





Material



90/10 Copper Nickel Alloy

DIN 86013 2.1972, DIN 17664 2.0872

BS2871, 2872, 2875 CN102

EEMUA 144

ASTM B466, B467, C70600, MIL-T-16420K C70600

JIS H3300 C7060T



70/30 Copper Nickel Alloy

DIN 17664 2.0882

BS2871, 2872, 2875 CN107

ASTM B466, B467, C71500, MIL-T-16420K C71500

JIS H3300 C7150T



Dimension

DIN 86011, 86087, 86088, 86089, 86090

BS1640

ANSI B16.9, B16.28

JMS 7354





Size - 10 mm OD to 400 mm OD

Thickness - 1 mm to 10 mm

Grade - UNS NO. C70600 (CU-NI 90/10), UNS C71500 (CU -NI 70/30).

Flange

1. Application:

For seal or connect of pipe/tub-e lines

2. Material:

90/10 Copper Nickel Alloy 304,304L,316,316L,carbon steel or other material on request

3. Standard:

ANSI,DIN,JIS,BS,EN1092-1

4. Size:

DN15 (1/2") to DN5000 (200")

5. Type:

Threaded Flanges, Socket Welding Flanges, Blind Flanges, Other Flanges



Quick Details

Place of Origin:

China (Mainland)

Application:

Gas & Oil extraction, Valve

Grade:

Nickel Base Alloy

Ni (Min):

63

Resistance (μΩ.m):

0.615

Powder Or Not:

Not Powder

Ultimate Strength (≥ MPa):

140

Elongation (≥ %):

30

Model Number:

Monel K-500

Brand Name:

TOBO
Packaging & Delivery

Packaging Details

Export standard wooden box

Delivery Time

35 Days
