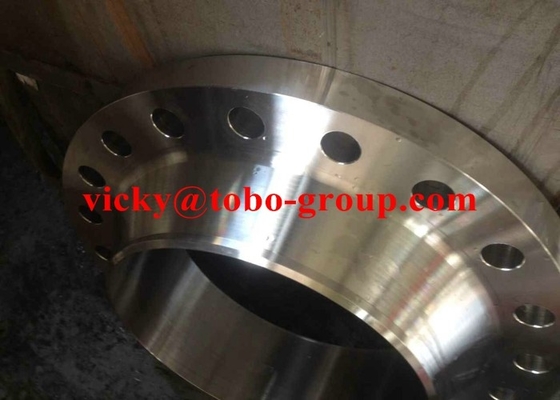

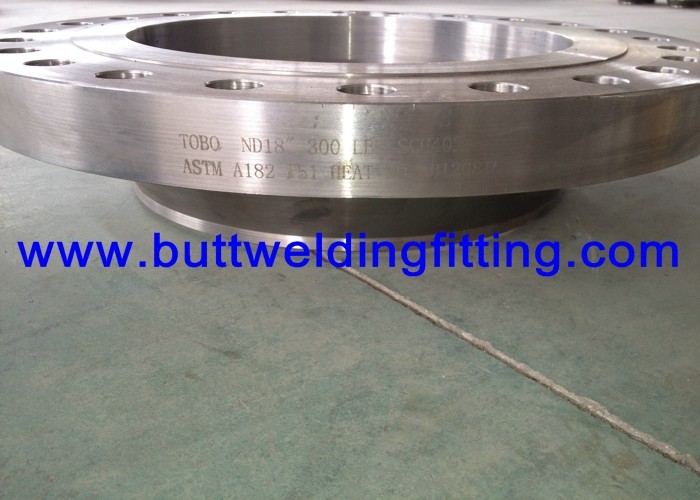

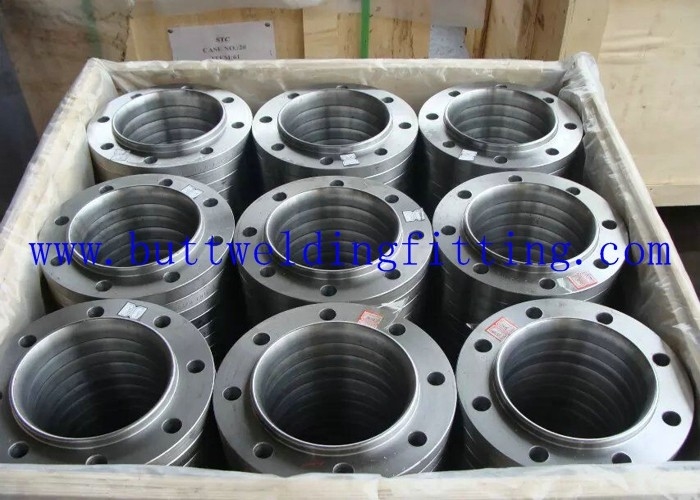

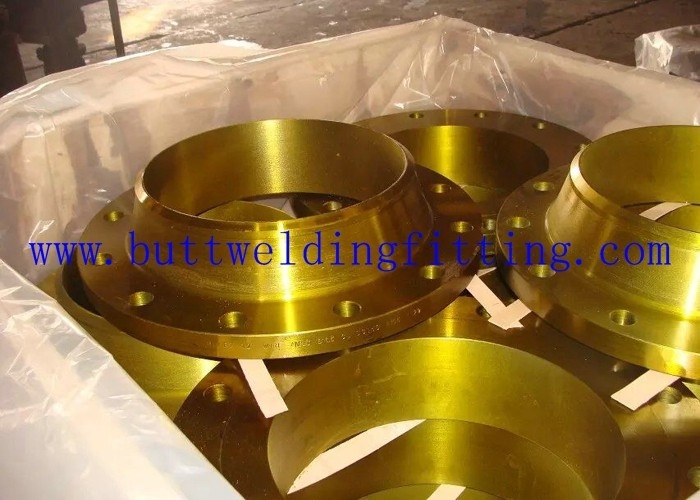

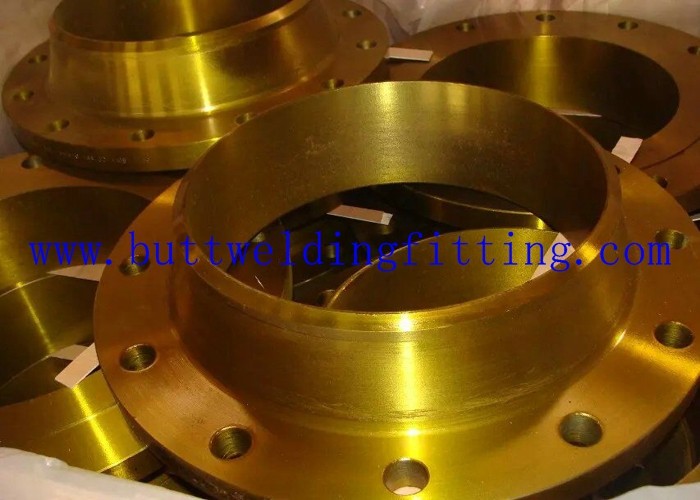

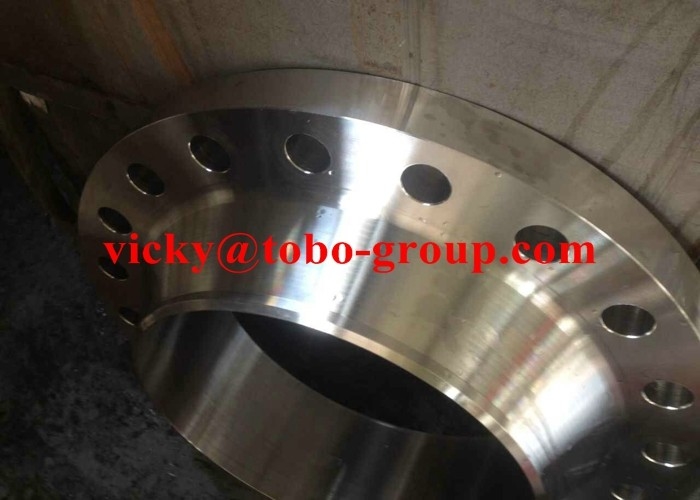

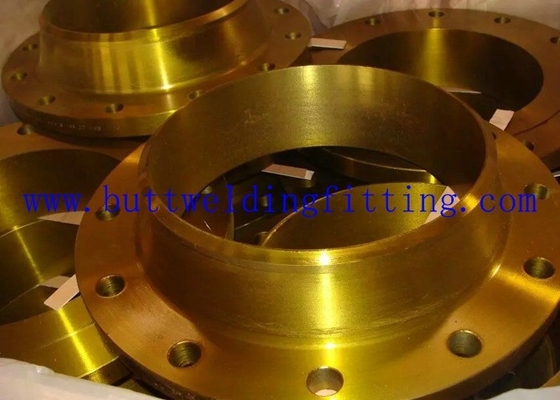

PN16 DN50 Forged Steel Flanges
| Place of Origin | China, India, USA, Korea, UE |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | ASTM, JIS, DIN, ANSI, ASTM, JIS, |
| Minimum Order Quantity | 100KGS |
| Price | negotiable |
| Packaging Details | in plastic bags then in bundles |
| Delivery Time | 15days-> |
| Payment Terms | T/T, L/C, Western Union, |
| Supply Ability | 1500 tons per month |
Product Details
| Standard | ANSI, BS, DIN, JIS And MSS | Color | White, Silver |
|---|---|---|---|
| Outside Diameter | DN15-DN1000 | Type | WELDING NECK FLANGE |
| Highlight | forgings flanges and fittings,forged fittings and flanges |
||
Product Description
PN16 DN50 1/2''-48'' Forged Welding Neck Steel Pipe Flanges Drawing GOST 12821
Product Description
WE CAN SUPPLY THE FLANGES OF THE FOLLOWING FORM AND PRODUCE FLANGES
FOLLOWING DRAWINGS
|
Flange Standard |
Flange Size |
Flange Pressure |
Flange Type |
|
ANSI B16.5 |
1/2''-48'' |
Class150 Class300 |
Blind Plate Slip on Welding Neck |
|
ASME B16.5 |
Class600 Class900 |
Socket weling Threaded RTJ(tring type joint ) |
|
|
ASA B16.5 |
Class1500 Class2500 |
Facing: FF (flat face) RF (raised face) |
|
|
ANSI B16.47 (A) |
1/2''-60'' |
Class150,300 |
Slip on Welding neck RTJ(ring type joint) |
|
Class400,600,900 |
Facing: FF (flat face) RF (raised face) |
||
|
ANSI B16.5 (B) |
26''-60'' |
Class75,150,300 |
Slip on Welding neck RTJ(ring type joint) |
|
Facing: FF (flat face) RF (raised face) |
|||
|
ANSI B16.36 |
1"-24" |
Class300,400,600 |
Slip on Welding neck Threaded RTJ |
|
Class900,1500,2500 |
Facing: FF (flat face) RF (raised face) |
||
|
DIN EN1092-1 Type01 |
DN10-DN2000 |
pn6 pn10 pn16 pn25 pn40 |
Plate flange |
|
DIN EN1092-1 Type05 |
DN10-DN3000 |
pn6 pn10 pn16 pn25 pn40 |
Blind flange |
|
DIN EN1092-1 Type11 |
DN15-DN3000 |
pn6 pn10 pn16 pn25 pn40 |
Welding neck flange |
|
DIN EN1092-1 Type13 |
DN10-DN150 |
pn6 pn10 pn16 pn25 pn40 |
Threaded flange |
|
DIN EN1092-1 Type02 |
DN15-DN1000 |
pn6 pn10 pn16 |
Loose flange |
|
GOST 12820-80 |
DN15-DN2000 |
pn0.6MPa 1.0MPa 1.6MPa |
Plate flange |
|
pn2.5MPa 4.0MPa 6.4MPa |
FF(flate face) RF(raised face) |
||
|
GOST 12821-80 |
DN15-DN2000 |
pn0.6MPa 1.0MPa 1.6MPa |
Welding neck flange |
|
pn2.5MPa 4.0MPa 6.4MPa |
FF(flate face) RF(raised face) |
||
|
GOST 12836 |
DN15-DN2000 |
pn0.6MPa 1.0MPa 1.6MPa |
Blind flange |
|
pn2.5MPa 4.0MPa |
FF(flate face) RF(raised face) |
|
NAME |
Pipe fittings |
|
OUR OTHER PRODUCTS |
Elbows,reducers,pipe tees,bends,pipe caps |
|
MATERIAL |
Carbon steel,stainless steel,alloy steel We can produce according to materials appointed by you. |
|
STANDARD |
ANSI,ASME,API5L,DIN,JIS,BS,GOST,GB we can also produce according to drawing by you. |
|
WALL THICKNESS |
Sch5-Sch160 XS XXS STD
|
|
SIZE |
1/2"~80" |
|
RANGE OF APPLICATION |
Chemical industry, petroleum industry, construction industry, domestic installation and other |
|
SURFACE TREATMENT |
Shot blasted, rust-proof black oil |
|
RADIUS OF CURVATURE |
1D-10D |
|
CERTIFICATES |
ISO-9001:2000,API,CE |
Why choose us!
1. We are the specialized supplier of stainless steel materials, can provide the best price!
2. We have more than 30 years experience in exporting products to worldwide countries, can provide the high quality products!
3. We have three thousand tons of stock in warehouses with abundant capital. Furthermore, we offer charge sales, credit and 7-day 24-hour services.
4. Wide excellent experiences with after-sale service.
5. Every process will be checked by responsible QC which insures every product's quality.
6. Professional packing teams which keep every packing ely.
7. Trial order can be done in very short time.
8. Samples can be provided as your requirements.
