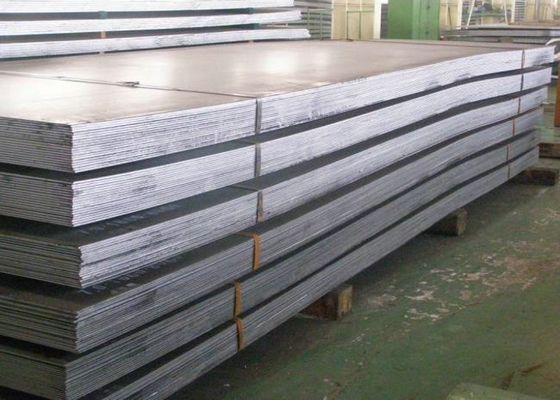

Aerospace ASME SB424 550MPa UNS N06625 Incoloy 625 Plate
| Place of Origin | China/Japan/Germany |
|---|---|
| Brand Name | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | Incoloy 625 UNS N06625 |
| Minimum Order Quantity | 1 Ton/Tons neogotiationTrial Order |
| Packaging Details | Wooden Cases |
| Delivery Time | delivery time is according to the actual order |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3000 Ton/Tons per Week neogotiation |
Product Details
| Product Name | Incoloy 625 UNS N06625 Steel Plate | Product Type | Steel Plate |
|---|---|---|---|
| Standard | AISI, ASTM, BS, DIN, GB, JIS | Grade | Ni-Cr-Fe Alloy |
| Ultimate Strength (≥ MPa) | 550 | Ni (Min) | 38 |
| Elongation (≥ %) | 35 | Application | Nitrate Condenser,Steam Heating Pipes,etc |
| Length | 1000-12000mm | ||
| Highlight | 550MPa Incoloy 625 Plate,UNS N06625 Incoloy 625 Plate,ASME SB424 Incoloy Plate |
||
Product Description
Incoloy 625 UNS N0665 steel plate JIS, AISI, ASTM, GB, DIN, EN
Quick Details
Packaging & Delivery
SpecificationsIncoloy 625 UNS N06625 steel plate: Incoloy 825 UNS NO8825 steel plate :
1)Size:1000mm x 2000mm 2)Thk:1mm-60mm 3)Standard:ASTM B424/ASME SB424,ASTM B906/ASME SB906 Chemical Composition, %
In what applications is Inconel 625 used?· Aircraft ducting systems · Aerospace · Jet engine exhaust systems · Engine thrust-reverser systems · Specialized seawater equipment · Chemical process equipment Fabrication with Inconel 625Alloy 625 has excellent forming and welding characteristics. It may be forged or hot worked providing temperature is maintained in the range of about 1800-2150° F. Ideally, to control grain size, finish hot working operations should be performed at the lower end of the temperature range. Because of its good ductility, alloy 625 is also readily formed by cold working. However, the alloy does work-harden rapidly so intermediate annealing treatments may be needed for complex component forming operations. In order to restore the best balance of properties, all hot or cold worked parts should be annealed and rapidly cooled. This nickel alloy can be welded by both manual and automatic welding methods, including gas tungsten arc, gas metal arc, electron beam and resistance welding. It exhibits good restraint welding characteristics.
ASTM Specifications
Mechanical PropertiesRepresentative Tensile Properties, bar, 1800° F anneal
|
