TOBO GROUP
TOBO International Trading(Shanghia)Co.,Ltd Tianda Oil Pipe Co., Ltd
TOBO Pipeline Equipment Co.,Ltd TPCO & TISCO Pipe(Tianjin)Co.,Ltd.
| Place of Origin: | China/Japan/Germany |
|---|---|
| Brand Name: | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification: | ISO/PED/TUV/SGS/LR/BV |
| Model Number: | UNS 32750 / UNS 32760 |
| Minimum Order Quantity: | 300 Kilogram/Kilograms |
| Price: | US $ 10 - 100 / Kilogram |
| Packaging Details: | in bulk in bundles plastic outside in bundles as customer's request. |
| Delivery Time: | 20 working days after receive deposit for ASTM A240 ASME SA-240 |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 Metric Ton/Metric Tons per Month |
| Product Name: | UNS 32750 Stainless Steel Plate | Surface: | 2B , BA , NO.1 , NO.4 , 8K Mirror , PVC Coated |
|---|---|---|---|
| Grade: | 300 Series | Thickness: | 0.3mm-60mm |
| Standard: | JIS, AISI, ASTM, GB, DIN, EN | Width:: | 600-1219 1250 1500 1524 1800 2000 Or According To Your Requirment |
| Application: | Shipping Cars Aerospace Building Industry | Technology: | Cold Rolled/Hot Rolled |
| Length: | Any Length | ||
| Highlight: | Stainless Steel Coils,Stainless Steel Flat Sheets |
||

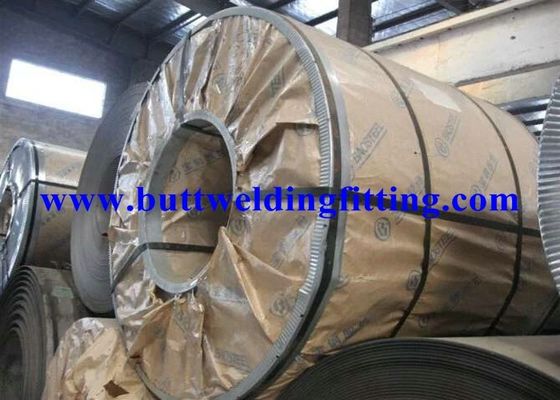

TISCO Stainless Steel Coils UNS 32750 / UNS 32760 0.3mm - 60mm Thickness
| Grade: |
300 Series
|
Standard: |
JIS, AISI, ASTM, GB, DIN, EN
|
Length: |
any length
|
| Thickness: |
0.2mm-20mm
|
Width: |
600-1219 1250 1500 1524 1800 2000 or according to your requirment
|
Place of Origin: |
Shanghai, China (Mainland)
|
| Brand Name: |
TISCO
|
Model Number: |
2101 S32101 2304 S32304 2205 S31803 2507 S32750, S32101 2304 S32304 2205 S31803 2507 S32750
|
Type: |
Coil
|
| Application: |
shipping cars Aerospace Building industry
|
Certification: |
ISO
|
Certificate: |
ISO9001:2008 BV
|
| Technique: |
Cold Rolled/Hot Rolled
|
Tolerance: |
+/-0.1mm
|
Weight/coil: |
5-8tons
|
| Packaging Details: | Employment of waterproof and damp-proof materials. Damage avoided with protecting plank and shim. Coil loosing and scratching preventded as a result of vertical and horizontal typing up between coil layers. |
| Delivery Detail: | within 20-25 days after received the deposit according quantity |
super duplex stainless steel uns 32750 / uns 32760
1China largest stainless steel plant
2Quality assurance for lifetime
super duplex stainless steel uns 32750 / uns 32760
A brief description of super duplex stainless steel uns 32750 / uns 32760
1China largest stainless steel plant
2Quality assurance for lifetime
3Annual capacity:100milion
4stock
5thickness :0.2-20mm
6width:200-2000mm
Detailed description of super duplex stainless steel uns 32750 / uns 32760
Chemical composition of super duplex stainless steel uns 32750 / uns 32760
Material Code |
Mass percent(%) | |||||||||
| C | Si | Mn | P | S | Cr | Ni | Mo | N | ||
| 2101(S32101,1.4162) | ASTM | ≤0.040 | ≤1.00 | 4.00-6.00 | ≤0.040 | ≤0.030 | 21.0-22.0 | 1.35-1.70 | 0.1-0.8 | 0.20-0.25 |
| Typicalvalue | 0.028 | 0.071 | 5.03 | 0.028 | 0.001 | 21.5 | 1.55 | 0.3 | 0.22 | |
| 2304(S32304,1.462) | ASTM | ≤0.030 | ≤1.00 | ≤2.50 | ≤0.040 | ≤0.030 | 21.5-24.5 | 3.0-5.5 | 0.05-0.60 | 0.05-0.20 |
| Typicalvalue | 0.026 | 0.5 | 1.28 | 0.028 | 0.001 | 23.5 | 4.05 | 0.3 | 0.12 | |
|
2205 1.4462) |
ASTM a | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.020 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | 0.08-0.20 |
| ASTM b | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.020 | 22.0-23.0 | 4.5-6.5 | 3.0-3.5 | 0.14-0.20 | |
| Typicalvalue | 0.025 | 0.55 | 1.2 | 0.028 | 0.001 | 22.1 | 5.10 | 3.10 | 0.17 | |
| 2507(S32750,1.4410) | ASTM | ≤0.030 | ≤1.00 | ≤1.20 | ≤0.035 | ≤0.020 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | 0.24-0.32 |
| Typicalvalue | 0.026 | 0.55 | 0.78 | 0.028 | 0.001 | 25.5 | 7.40 | 4.10 | 0.28 | |
Mechanical Properties of super duplex stainless steel uns 32750 / uns 32760
| Material Code | Rp0.2/MPa | Rm/MPa | A/% | HB | |
| 2101(S32101,1.4162) | ASTM | ≥450 | ≥620 | ≥25 | ≤293 |
| Typicalvalue | 530 | 720 | 33 | 240 | |
| 2304(S32304,1.4362) | ASTM | ≥400 | ≥600 | ≥25 | ≤293 |
| Typicalvalue | 520 | 710 | 35 | 245 | |
| 2205(S31803. S32205.1.4462) |
ASTMa | ≥450 | ≥620 | ≥25 | ≤293 |
| ASTMb | ≥450 | ≥655 | ≥25 | 255 | |
| Typicalvalue | 550 | 750 | 33 | ≤293 | |
| 2507(S32750.1.4410) | ASTM | ≥550 | ≥795 | ≥15 | 260 |
| Typicalvalue | 580 | 850 | 31 | ≤310 |
