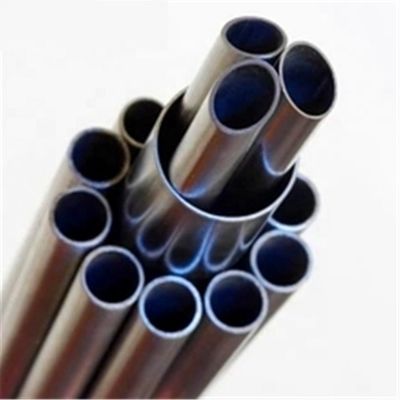

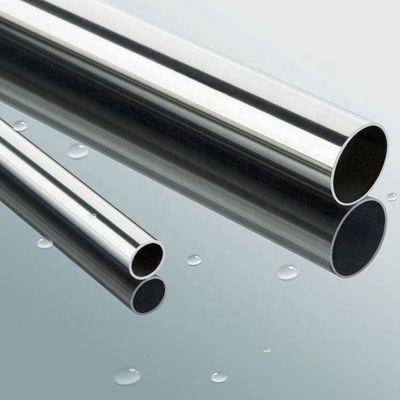

Nickel Pipe Inconel 800 series UNS S08811 Inconel 800 800H 800Ht Nickel Tube & Pipe
| Place of Origin | China/Japan/Germany |
|---|---|
| Brand Name | TOBO/TPCO/TISCO/VALIN/METAL |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | 1.4835 Stainless Steel Seamless Pipe |
| Minimum Order Quantity | 0.5-1 tons |
| Price | negotiable |
| Packaging Details | in plastic bags then in bundles |
| Delivery Time | 15days-> |
| Payment Terms | T/T, L/C, Western Union, |
| Supply Ability | 7500 tons per year |
Product Details
| Standard | DIN, ANSI, ISO, GB, JIS | Sample | Provided,Free,Available Free Within 7days |
|---|---|---|---|
| Application | Fluid Pipe,Structure Pipe | Outer Diameter | 6-813mm |
| Surface | Annealed & Pickled, Bright Annealing, Polished | Thickness | 0.5-100mm |
| Material | Carbon Steel,Stainless Steel,alloy Steel,Brass,copper | Types | Seamless |
| Highlight | Nickel Seamless Steel Pipe,Inconel 800 Nickel Alloy Tube,800Ht Nickel Round Bar |
||
Product Description
Nickel Pipe Inconel 800 series UNS S08811 Inconel 800 800H 800Ht Nickel Tube & Pipe
Overview
Nickel and Nickel alloy referred to the alloy’s main elemental contents of Ni, Cu, Cr, Fe and Mo.
Those all characterized by its combination performance of high corrosion resistance and heat ability at temperature 650 ~ 1000 °C.
According to main alloy elements content can divide:
Ni –Cr – Mo alloy (Inconel 600 Series)
Ni-Cr-Fe alloy (Incoloy 800 Series)
Ni - Mo – Ni – Cu – (Hastelloy Series)
Pure Nickel and low alloy nickel (Nickel 200/201)
Application:
- High temperature process
- Chemical and Petrochemical field
- Food field
- Power plants
Material List:
Incoloy 800, Incoloy 800H, Incoloy 825, Inconel 600, Hastelloy B, Hastelloy B2, Hastelloy C, Hastelloy C276,
Hastelloy C4, Hastelloy C22, Inconel 625, Inconel 718, Monel 400, Nickel 200
Inconel 800 Series
Alloy 800 (UNS N08800), Alloy 800H (UNS 08810) and alloy 800AT (UNS N08811) have the same content of Nickel, Chromium and iron, what makes the difference is the combined titanium and aluminium levels (0.85 to 1.2%) to ensure optimum high temperature properties.
Chemical Composition:
| Alloy | Ni | Cr | Fe, Min | C, Max | Al | Ti | Al+Ti |
| Alloy 800 | 30-35 | 19-23 | 39.5 | 0.10 | 0.15-0.60 | 0.15-0.60 | 0.30-1.20 |
| Alloy 800H | 30-35 | 19-23 | 39.5 | 0.05-0.10 | 0.15-0.60 | 0.15-0.60 | 0.30-1.20 |
| Alloy 800HT | 30-35 | 19-23 | 39.5 | 0.06-0.10 | 0.25-0.60 | 0.25-0.60 | 0.85-1.20 |
Mechanical Property:
| Density, g/m2 | 7.94 |
| Melting range, °C | 1357~1385 |
| Tesile Strength, Min , Mpa | 550 |
| Yield Strength, Min , Mpa | 240 |
| Elongation, % , Min | 30 |
 |
 |
 |
 |
| Hastelloy C22 | Inconel 600 | Inconel 625 | Inconel 718 |
 |
 |
 |
 |
| Inconel 800 | Nickel 200 | Nickel 400 | Nickel alloy C276 |
FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.
contact us.
Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.
Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.
Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.
Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
