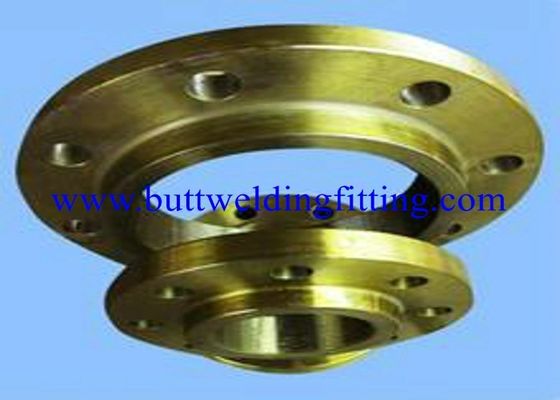

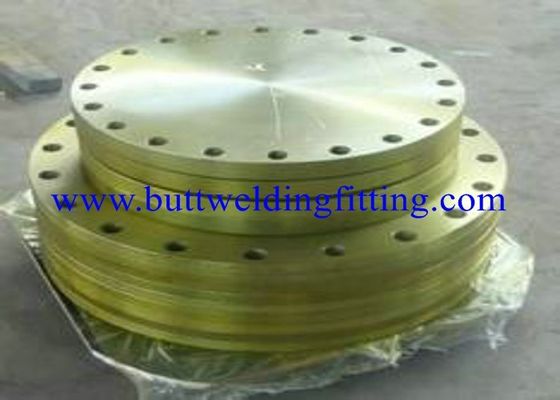

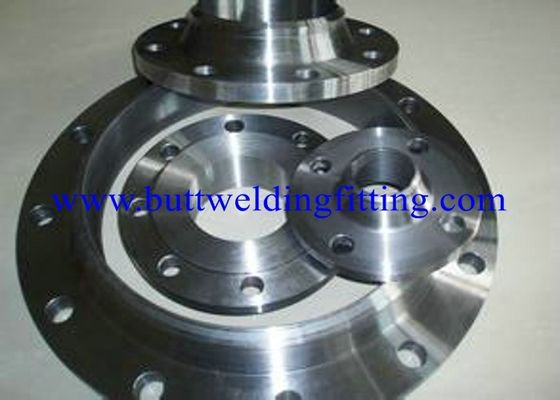

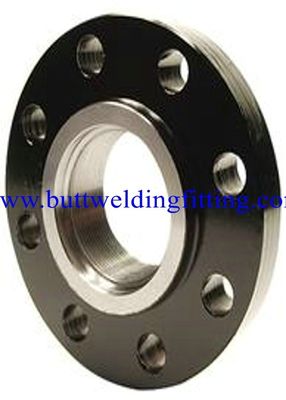

Steel Flange ,Swivel-Ring, ASME B16.5, MSS SP-44, A694 F52 to F65

  • Steel Flange ,Swivel-Ring, ASME B16.5, MSS SP-44, A694 F52 to F65
  • Steel Flange ,Swivel-Ring, ASME B16.5, MSS SP-44, A694 F52 to F65
  • Steel Flange ,Swivel-Ring, ASME B16.5, MSS SP-44, A694 F52 to F65
  • Steel Flange ,Swivel-Ring, ASME B16.5, MSS SP-44, A694 F52 to F65
  • Steel Flange ,Swivel-Ring, ASME B16.5, MSS SP-44, A694 F52 to F65
Place of Origin SHANGHAI
Brand Name TOBO
Certification ISO
Model Number Steel Flange ,Swivel-Ring, ASME B16.5, MSS SP-44, A694 F52 to F65
Minimum Order Quantity 1PC
Price USD1-10/PC
Packaging Details WOOD PACKAGES
Delivery Time 10--30DAYS
Supply Ability 10000000/PC/MONTH
Product Details
Highlight

forgings flanges and fittings

,

butt weld flanges
Leave a Message
Product Description

Steel Flange ,Swivel-Ring, ASME B16.5, MSS SP-44, A694 F52 to F65



Detailed Product Description

Product: The RSR Swivel-Ring Flange Sets Material: ASME B16.5,API 6A, API 17D, MSS SP-44,ASTM A105, A694 F52 To F65, A350 LF2, AISI 4130, A182 F51&F53
Certification: API , ABS, DNV, GL , LR, NK, ....




Steel Flange ,Swivel-Ring, ASME B16.5,API 6A, API 17D, MSS SP-44, A694 F52 to F65, A350 LF2, AISI 4130, A182 F51&F53





Swivel-Ring Flange ,ASME B16.5,API 6A, API 17D, MSS SP-44,ASTM A105, A694 F52 to F65, A350 LF2, AISI 4130, A182 F51&F53



The RSR Swivel-Ring Flange sets consist of a 360°rotation outer ring and a hub, the design make it easy to align the bolt holes when attaching to a mating standard flange. For subsea applications, this capability is important when align and make up the flange connections; it will save much time for installation, save time means save money. Swivel-Ring Flanges can be designed for most size and pressure rating as per ASME B16.5, API 6A, API 17D, MSS SP-44 or Norsok L-005. Swivel-Ring Flanges raw materials are available in ASTM A105, A694 F52 to F65, A350 LF2, AISI 4130, and A182 F51 & F53. Also we can supply flanges with other materials such as A694 F70, AISI 8630 and so on. Reference, dimensional data for ANSI and MSS RTJ Swivel-Ring Flanges are given in the tables below.

  • Design Specifications
Swivel-Ring Flanges are designed in accordance with ASME Pressure Vessel Code, Section VIII, Division 2, DNV OS F101, API 6A and API 17D unless otherwise specified, and applicable sections of the flange specification to which it will mate. Finite element analysis: ANSYS FEA to verify the design integrity before manufacture
  • Ordering Information
Please provide the following information on any purchase order or request for quotation:
Nominal pipe size
Pipe wall thickness or bore size
Pipe material grade
Design pressure
Design temperature
Other forces (when calculation requested)
Specification of mating flange
Sealing face type
Weld overlay & Cladding
External Coating Specification





Test Certificate

Manufacturer Test Certificate as per EN 10204 / 3.1B
