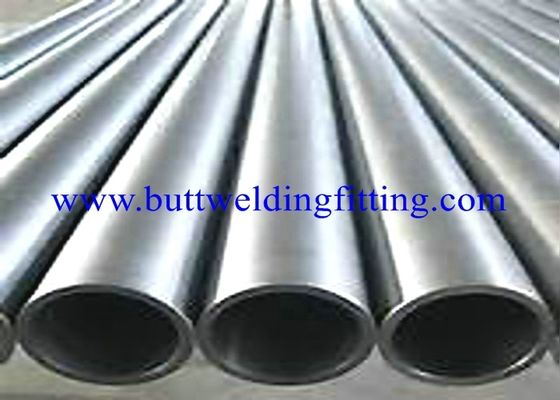

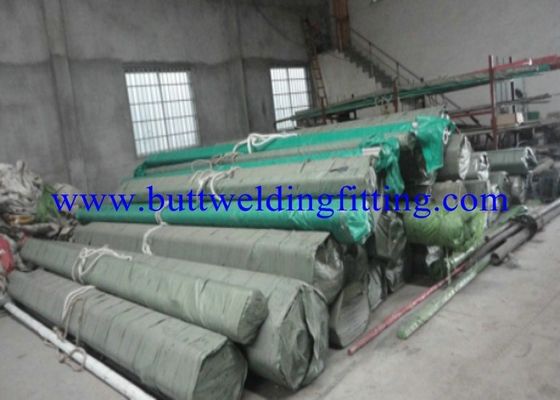

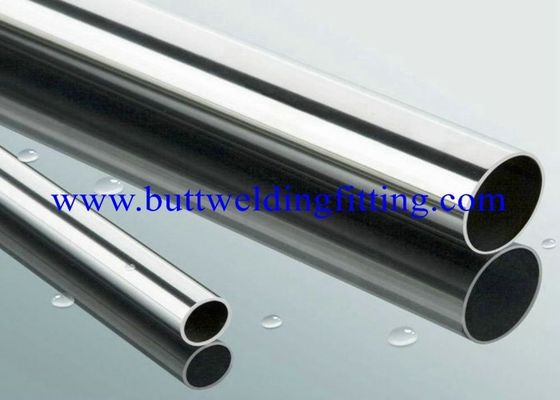

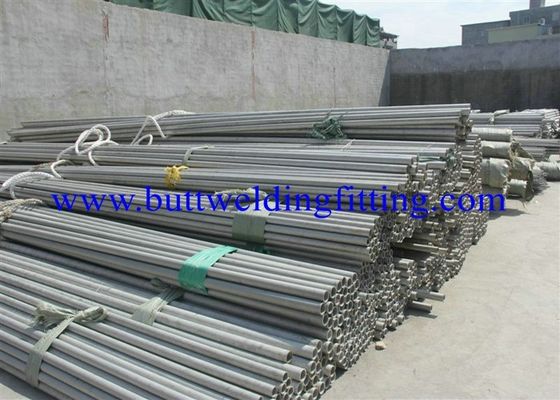

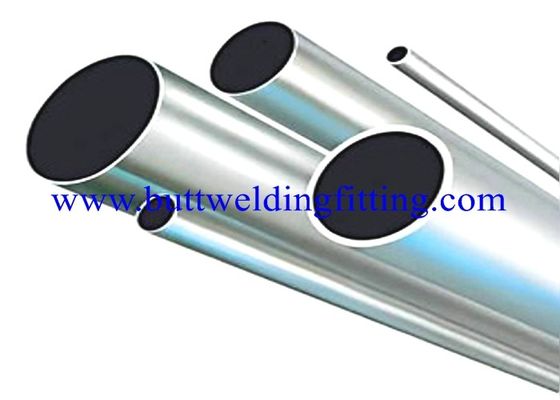

Class 1 Class 2 Class 3 Stainless Steel Welded Pipe Pickled and Annealed

  • Class 1 Class 2 Class 3 Stainless Steel Welded Pipe Pickled and Annealed
  • Class 1 Class 2 Class 3 Stainless Steel Welded Pipe Pickled and Annealed
  • Class 1 Class 2 Class 3 Stainless Steel Welded Pipe Pickled and Annealed
  • Class 1 Class 2 Class 3 Stainless Steel Welded Pipe Pickled and Annealed
  • Class 1 Class 2 Class 3 Stainless Steel Welded Pipe Pickled and Annealed
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number A3358 Class 1 , Class 2, Class 3
Minimum Order Quantity 100KGS
Price negotiable
Packaging Details Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Delivery Time 10days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 1500 tons per month
Product Details
Standard ASTM A312 TP317L , A3358 Class 1 , Class 2, Class 3 Color White Silver Gold
Types Stainless Steel Welded Pipe Size 8 In. To 48 In
Highlight

SS Welded Tube

,

Large Stainless Steel Pipe
Leave a Message
Product Description

Stainless Steel Welded Pipe,ASTM A312 TP317L , A3358 Class 1 , Class 2, Class 3


Stainless Steel Welded Round Pipe
1. Thickness: 0.1mm~30mm
2. OD range: 1.5mm~2000mm


Stainless Steel Welded Square Pipe

1. Thickness: 0.2mm~8mm
2. OD range: S4mm~S300mm


Stainless Steel Welded Rectangular Pipe
1. Thickness: 0.2mm~8mm
2. OD range: (4x6)mm ~ (200x400)mm



Features of  Stainless Steel Welded Pipe

1. Uniform wall thickness
2. High brightness for tube appearance
3. Arbitrary dimension as your requirement
4. Economy & beautiful





TOBO GROUP deal with stainless steel welded pipe and tube already more than 30 years, every
year sell more than 5000 tons of stainless steel pipe and tube. Our client already cover more than 45
countries. Our stainless steel seamless pipe and tube was width used in Mining, Energy,

Petrochemical,
Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc.

Standard Specification:
ASTM A249 / A249M - 10a Standard Specification for Welded Austenitic Steel Boiler, Superheater,
Heat-Exchanger, and Condenser Tubes
ASTM A269 - 10:Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing
for General Service
ASTM A312 / A312M - 12:Standard Specification for Seamless, Welded, and Heavily Cold Worked
Austenitic Stainless Steel Pipes
ASTM A358/A358M-08a:Standard Specification for Electric-Fusion-Welded Austenitic
ASTM A778 - 01(2009)e1:Standard Specification for Welded, Unannealed Austenitic Stainless
Steel Tubular Products
ASTM A789 / A789M - 10a:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Tubing for General Service
ASTM A790 / A790M - 11:Standard Specification for Seamless and Welded Ferritic Austenitic Stainless Steel Pipe
Others like BS, JIS , DIN , EN , GOST standard we all can supply .

Material Grade:

American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:

TP405,TP409, TP410, TP430, TP439,...

Europen Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

Russia Standard

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

Size Range:

Production

Outside Diameter

Wall Thickness

Welded Pipe

6.00mm to 3600mm

0.5mm to 48mm

Final Finishing:

Solution Annealed & Pickled

Specifications of Stainless Steel Welded Pipe


Product name:

Stainless Steel Welded Pipe/Tube

Standard:

ASTM, DIN, GOST, GB, JIS

Grade:

08Х18Н10, 08Х18Н10Т, 12Х18Н10Т, 201,202,301,304,304L,316L,etc

OD range:

1.5mm-2000mm

Wall thickness range:

0.1mm-30mm

Application

Window,Door,Handrail,Curtain rail,Towel rail,Flagpole,Lamp pole,Sanitary Instrument,Billboard,Decoration,Upholstery,
Construction,Accessory,Airport,Bus Stop.

Surface finish:

pickling, annealing, manual polish and mechanical polish, mirror polish

Class 1 Class 2 Class 3 Stainless Steel Welded Pipe Pickled and AnnealedClass 1 Class 2 Class 3 Stainless Steel Welded Pipe Pickled and AnnealedClass 1 Class 2 Class 3 Stainless Steel Welded Pipe Pickled and Annealed
