A403 WP317L /904L Stainless Steel Pipe Cap Tube End Caps Sch10s To Sch160 ASME B16.9

  • A403 WP317L /904L Stainless Steel Pipe Cap Tube End Caps Sch10s To Sch160 ASME B16.9
  • A403 WP317L /904L Stainless Steel Pipe Cap Tube End Caps Sch10s To Sch160 ASME B16.9
  • A403 WP317L /904L Stainless Steel Pipe Cap Tube End Caps Sch10s To Sch160 ASME B16.9
  • A403 WP317L /904L Stainless Steel Pipe Cap Tube End Caps Sch10s To Sch160 ASME B16.9
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number A403 WP317L /904L
Minimum Order Quantity 3PCS
Price USD1-60 Per PC
Packaging Details PLY-WOODEN CASE OR PALLET
Payment Terms T/T, L/C, D/A, D/P, Western Union
Supply Ability 9800000PCS PER MONTH
Product Details
Material A403 WP317L /904L Technics Butt Weld ,Forged
Place Of Origin China (Mainland) Certifications ISO9001/2008,ISO14001,OHSMS18000
Highlight

butt weld pipe cap

,

stainless steel pipe end caps
Leave a Message
Product Description

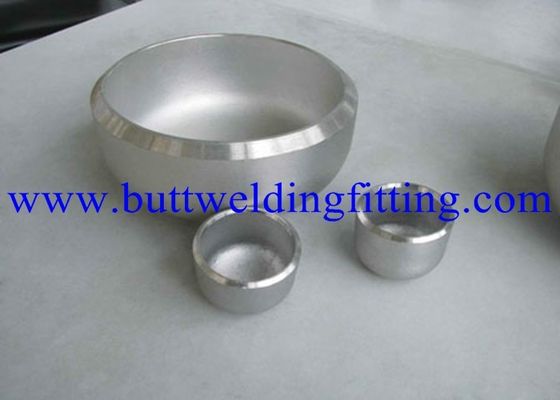

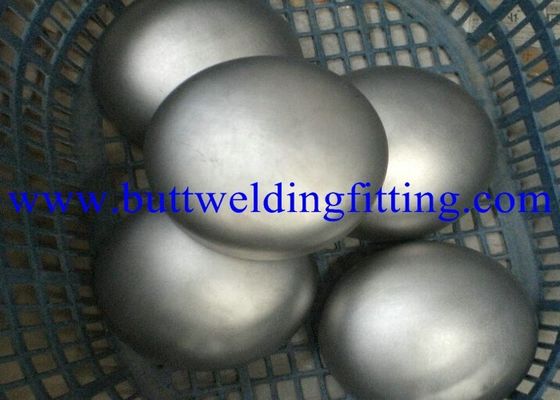

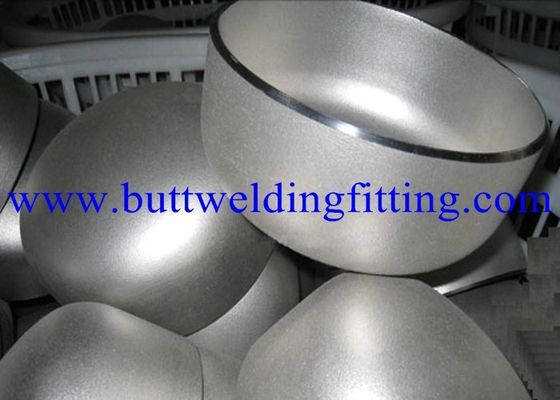

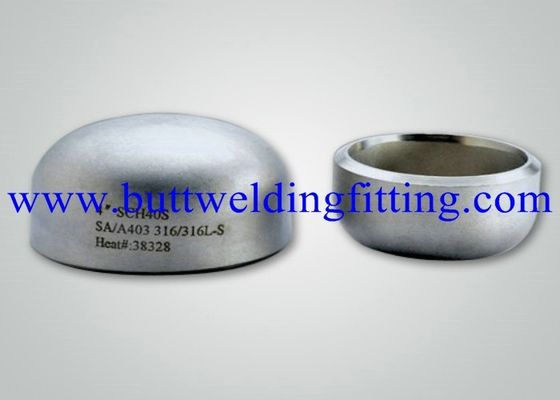

A403 WP317L /904L Stainless Steel Cap Pipe End Cap Sch10s To Sch160 ASME B16.9



Size : 1/2"NB TO 72"NB
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : End Cap
Materials
Stainless Steel End Cap – SS Cap
ASTM A403 WP Gr. 304, 304H, 304L, 309, 310, 316, 316H, 316L, 316TI, 317L, 321, 347, 904L
Carbon Steel End Cap – CS Cap
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Low Temperature Carbon Steel End Cap – LTCS Cap
ASTM A420 WPL3 / A420WPL6
Alloy Steel End Cap – AS Cap
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Duplex Steel End Cap
ASTM A 815 UNS NO S 31803, S 32205, S 32760, S 32750.
Copper Nickel
C70600(90:10), C71500(70:30), C71640.
Nickel Alloy End Cap :
Standard
ASTM / ASME SB 336.
UNS 10276 (HASTELLOY C 276 Cap)
UNS 2200 (NICKEL 200 Cap ),
UNS 2201 (NICKEL 201 Cap ),
UNS 4400 (MONEL 400 Cap ),
UNS 8020 (ALLOY 20 Cap)
UNS 8825 INCONEL (825 Cap ),
UNS 6600 (INCONEL 600 Cap ),
UNS 6601 (INCONEL 601 Cap ),
UNS 6625 (INCONEL 625 Cap),
Tags : End Cap
Test Certificate
Mill Test Certificate as per EN 10204 / 3.1


A403 WP317L /904L Stainless Steel Pipe Cap Tube End Caps Sch10s To Sch160 ASME B16.9

Nominal Diameter

Outside Diameter at Bevel

Back to End



Series A

Series B

E

T



DN

NPS



15

1/2

21.3

18

25

4.57



25

1

33.7

32

38

4.57



40

1.1/2

48.3

45

38

5.08



50

2

60.3

57

38

5.59



65

2.1/2

76.1(73)

76

38

7.11



80

3

88.9

89

51

7.62



100

4

114.3

108

64

8.64



125

5

139.7

133

76

9.65



150

6

168.3

159

89

10.92



200

8

219.1

219

102

12.70



300

12

323.9

325

152

12.70



350

14

355.6

377

165

12.70



400

16

406.4

426

178

12.70



450

18

457.2

478

203

12.70



500

20

508.0

529

229

12.70



550

22

559

-

254

12.70



600

24

610

630

267

12.70



When T is less the dimension in parentheses, the height E is available. Otherwise E1 is available.
 Above dimensions acc.to GB/T12459,GB/T13401,ASME B16.9,SH3408,SH3409,HG/T21635,HG/T21631,SY/T05010
