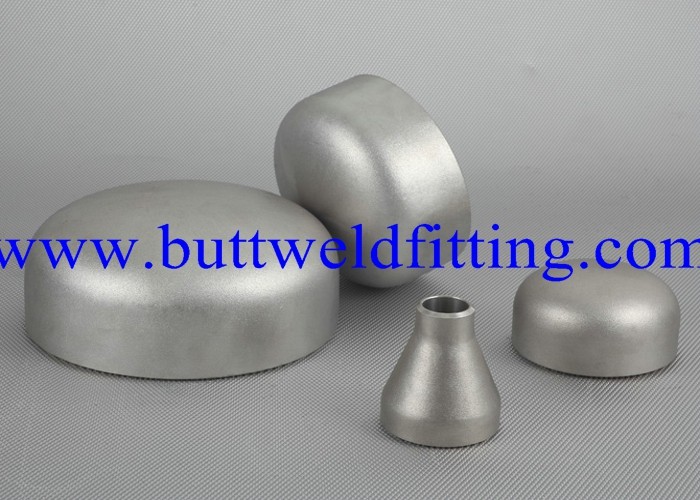

Butt Weld Stainless Steel Pipe Cap



Stainless Steel Cap Pipe End Cap A403 WP304L / TP316L / WP321 / WP310 Sch40s To Sch80s




Product Description

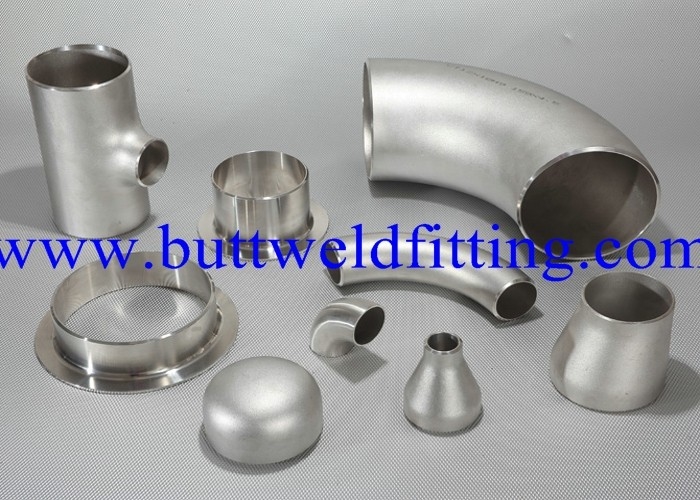

Buttweld Fittings
We are engaged in offering wide range of Buttweld Fittings such as Bend and Buttweld Elbows, A403 Elbows, 304L Elbows, Steel Buttweld Fittings, Buttweld Equal Tee, Reducing Tee, Long and Short Stubend and Swage Nipple and Barrel Nipple. These are available in different specifications and grades to meet the requirements of engineering & construction, oil & gas, aircraft & aerospace and chemical industries. Our range is known for high tensile strength, dimensional accuracy and excellent finish.
Elbows
We offer Bend and Elbow in stainless steel, carbon steel and alloy steel material. These fittings are also available in monel, nickle, inconel, hastalloy, copper, brass, titanium material to meet the requirements of clients. Our range is designed in line with international quality standard and is widely used in different applications across industries.
Form : Elbows in long & short radius in 45 deg, 90 deg, 180 deg
Size : 1/8" NB to 48" NB (Seamless & Welded)
Wall thickness : Sch.5S to Sch: XXS.
Grades offered :-
Stainless Steel : ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Carbon Steel : ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel : ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91
Equal Tee
Equal Tee is a T-shaped device which has three openings that act as an outlet for the pipe. All the three ends of the equal tee are of the same size. We can offer equal in different metals such as monel, nickle, inconel, hastalloy, copper, brass and titanium material. Custom made equal can be developed to befit the specific application requirement of the clients.
Size : 1/8" NB to 48" NB (Seamless & Welded)

Grades Available :
Stainless Steel : ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Carbon Steel : ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
Alloy Steel : ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

Reducing Tee
Stainless Steel : ASTM A 182, A 240
Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L,
Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel : ASTM A 105, ASTM A 181
Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276

Long & Short Stub End
Our Long and Short Stubend Buttweld Fittings are widely used in ship building, drilling & well building and aircraft & aerospace industries. These are designed in line with international quality standards to ensure long service life. Our range is available in long stub end & short stub end forms to meet the requirements of clients.
Size : 1/8"NB to 48"NB IN
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / welded / fabricated
Form : Long stub end & short stub end

Swage Nipple & Barrel Nipple
We offer Swage Nipple and Barrel Nipple, specially designed to withstand high temperature and pressure. These can be used for permanent welded connection or detachable thread connection. Our range is available in varied specifications to suit the application based requirements of the clients.

Concentric & Eccentric Reducers
We are offering our clients with concentric / eccentric reducers that are used in petrochemical, power, nuclear and electronic industries. Known for their close tolerances, these stainless steel concentric and eccentric reducers are designed with precise configurations. These reducers are ideal for critical applications that involve high pressure, impulse, vibration and temperature

BUTTWELD, SOCKETWELD & THREADED FITTINGS & FLANGES ARE OFFERED CONFIRMING TO FOLLOWING STANDARDS

ANSI B 16.9   Wrought Steel Buttwelding Fittings
ANSI B 16.28  Wrought Steel Buttwelding S.R.Elbows & Returns.
ANSI B 16.11  Forged Steel Fittings Socket Welding & Threaded.
ANSI B. 16.5 Pipe Flanges and Flanged Fittings
ANSI B. 16.25  Butt Welding Ends
MSS SP-43     Wrought Stainless Steel Buttwelding Fittings.
MSS SP-75  High Test Wrought Buttwelding Fittings
DIN 2605  Tubes Bends for Butt Welding Steel tubes.
DIN 2605  Tubes Bends Steel for But welding Steel Type 5D.
DIN 2615 But Welding Steel Fittings Tees.
DIN 2616  Butt Welding STeel Fittings Reducers.
DIN 2617 Butt Welding Steel Fittings Caps.
BS 1640 Steel Butt Welding Pipe Fittings for the Petroleum Industry
ASTM A105 Forgings, Carbon Steel for piping components.
ASTM A182  Forged & Rolled Alloy Steel Pipe Flanges, Forged Fittings & Valves and parts for high temperature services.
ASTM A 234  Piping fittings of wrought carbon steel & Alloy Steel for moderate and elevated temperatures.
ASTM A 350  Carbon & Low Alloy Steel, requiring notch toughness testing for piping components.
ASTM A 403  Wrought Austenities stainless steel piping fittings.
ASTM A420  Pipes fittings of wrought carbon steel and alloy steel for low temperature services
JIS B2311  Steel Butt Welding pipe fittings for ordinary use.
JIS B2311  Steel Butt Welding Pipe fittings for special use
IS 1239  Mild Steel Tubes Tubulars & other wrought steel fittings
ASTM A 694  Specification for Carbon & Alloy Steel forgings for pipe flanges, fittings, valves & parts for high pressure transmission service.
ASTM A 860   Specification for wrought High Strength Low Alloy Steel butt welding fittings.


Butt Weld Fittings
Range: 15 NB till 3000 NB

SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS available with NACE MR 01-75

Form:
l Seamless
l Welded

Type:
l Elbows in long (LR) & short radius (SR) in 45 deg, 90 deg, 180 deg, R=3D, 5D, 6D, 8D, 10D & 20D.
l Reducer: Eccentric & concentric
l Caps & crosses.
l Tee.: EQUAL TEE, REDUCING TEE, BARRED TEE
l Long & short stub end.
l SWAGE NIPPLESCAPS: CONCENTRIC AND ECCENTRIC SWAGE NIPPLES
l PIPE NIPPLES
l INDUCTION BENDS

Stainless steel Butt Weld Fittings
Standard: ASTM / ASME A/SA 403 GR WP "S" / "W" / " WX"/ASTM A420
Grade: WP304, ,304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904, 904L, 409, 410, 430, 440C

Nickel Alloy Butt Weld Fittings
Standard: ASTM / ASME SB 336.
Grade: UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20) CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

Carbon Steel & Alloy Steel Butt Weld Fittings
Standard: ASTM / ASME A/SA 234 / 860/MSS-P75
Grade: WPB, WPC, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 ,WPHY 70. WPHY 100

Standard: ASTM / ASME A/SA 234
Grade: WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 23, WP 91 & WPL3, WPL6

Copper Alloy & Duplex Steel Butt Weld Fittings
Standard: ASTM / ASME SB 111 / 466/ASTM A403
Grade: UNS NO. C 10100, 10200, 10300, 10800, 12000, 12200, 70600 ( CU -NI- 90/10) , 71500( CU -NI- 70/30).

 Standard: ASTM / ASME A/SA 815
 Grade: UNS NO S 31803, S 32205, S 32550, S 32750, S 32760.

TECHNICAL DATA FOR PIPE FITTINGS

 STAINLESS STEEL

AUSTENITIC

ASTM/ASME SA 403 WP 304 (L) (H) (LN) (N)



ASTM/ASME SA 403 WP 321 (H)



ASTM/ASME SA 403 WP 316 (L) (H) (LN) (N) (TI)



ASTM/ASME SA 403 WP 347 (H)



ASTM/ASME SA 403 WP 317 (L)



ASTM/ASME SA 403 UNS-S-31254 (6% Mo)

AUSTENITIC/ FERRITIC

ASTM/ASME SA 815 UNS-S-31803 (22% CR)



ASTM/ASME SA 815 UNS-S-32760 (25% CR)

CARBON STEEL

FOR MODERATE TEMPERATURE

ASTM/ASME SA 234 WPB



ASTM/ASME SA 234 WPC

FOR LOW TEMPERATURE

ASTM/ASME SA 420 WPC6

CARBON/ NIKEL FOR LOW TEMPERATURE

ASTM/ASME SA 420 WPL3

HIGH YIELD MATERIALS

MSS-SP75 WPHY 42



MSS-SP75 WPHY 46



MSS-SP75 WPHY 52



MSS-SP75 WPHY 56



MSS-SP75 WPHY 60



MSS-SP75 WPHY 65



MSS-SP75 WPHY 70

ALLOY STEEL

FOR ELEVATED TEMPERATURE

ASTM/ASME SA 234 WP1



ASTM/ASME SA 234 WP12



ASTM/ASME SA 234 WP11



ASTM/ASME SA 234 WP22



ASTM/ASME SA 234 WP5



ASTM/ASME SA 234 WP9



ASTM/ASME SA 234 WP91

NON FERROUS ALLOYS

ALUMINIUM BASE

ASTM B361 GR. 3003-6061



ASTM B366 MONEL 400



ASTM B366 INCONEL 600



ASTM B366 INCOLOY 800



ASTM B366 INCOLOY 825



ASTM B366 HASTELLOY B, C, X

COPPER BASE

CUPRONICKEL 90 –10 AND 70-30

TITANIUM

ASTM B363 WPT2

MANUFACTURING PROGRAM

SOCKETWELD AND

45 & 90 DEG. LR ELBOWS

1/4" TO 4" NB

THREADED FITTINGS

TEES & REDUCING TEES

1/4" TO 4" NB

PRESSURE RATINGS

COUPLINGS

1/4" TO 4" NB

2000#, 3000#, 6000#, 9000#

CAPS

1/4" TO 4" NB



UNION

1/4" TO 4" NB



CROSSES

1/4" TO 4" NB



PLUGS

1/4" TO 4" NB



BUSHES

1/4" TO 4" NB



BOSS

1/4" TO 4" NB

BUTTWELD FITTINGS

SEAMLESS

45 & 90 DEG. LR/SR ELBOWS

1/2" TO 24" NB



TEES & REDUCING TEES

1/2" TO 24" NB



ECC/ CONC. REDUCERS

1/2" TO 24" NB



CAPS

1/2" TO 36" NB

WELDED

45 & 90 DEG. LR/SR ELBOWS

4" TO 36" NB



TEES & REDUCING TEES

4" TO 36" NB



ECC/ CONC. REDUCERS

4" TO 48" NB



CAPS

26" TO 48" NB

WALL THICKNESSES

ALL SCHEDULES TO ANSI B36, 10 AND UPTO 100 mm



SPECIAL PRODUCTS

BENDS RADIUS 2.5D, 3D, 5D, 10D & OTHER SPECIAL RADIUS



REDUCING ELBOWS



U BENDS OF SPECIAL CROSSES



LATERALS 'Y' PIECES



WELDOLETS, SWEEPOLETS, LATEROLETS, SOCKOLETS



ELBOWLETS & THREADOLETS



SPECIAL FITTINGS ACCORDING TO DRAWINGS



PRE-FABRICATED PIPING COMPONENTS AS PER DRAWING.

MANUFACTURING STANDARDS

ASME B1639 - B16.28 - B16.25



MSS-SP75 - 43 – 87



DIN 2605 - 2606 - 2615 - 2616 – 2617

DESIGN CODES

ASME I - ASME III DIV. 1 SUB NB



ASME I - ASME III DIV. 1 SUB NC



ASME I - ASME III DIV. 1 SUB ND



ASTM B31, 1 - B-31.4 - B31.8



Buttweld Fittings

We supply a wide range of Buttweld Fittings. Widely used in Oil, Gas, Filtration, Refrigeration, Refining, Petrochemical and Offshore Industries.

Buttweld Fittings are used in a piping system to change a direction or function, which is mechanically joined to the system. Probably the simplest way to achieve this would be to bend the pipe in the direction required, but this process will stretch and thin the outer wall of the pipe whilst thickening and wrinkling the inner wall of the pipe. This results in flow resistance and accelerated wall erosion.

A second method sometimes used is a mitred joint, where steel Buttweld Fittings are cut to the correct angle and welded together to achieve the desired change. Whilst the cross-section area and wall thickness are maintained a great deal of efficiency is lost due to friction and turbulence resulting from the severe change in direction; for example a single-mitred bend offers about six times the resistance of a swept elbow.






Buttweld Elbow Fitting

The Buttweld Elbow Fitting is a pipe fitting installed between two lengths of pipe or tube allowing a change of direction, usually 180°, 90° or 45°. The ends are machined for Butt Welding when the two ends differ in size, it is called a Reducing or Reducer Elbow.

Most elbows are available in short radius or long radius of types. The short radius elbows have a center to end distance equal to the NPS in inches, while the long radius is 1.5 times the NPS in inches.






Buttweld Tee Fitting

Buttweld Tee Fittings are widely used in industrial tubing to merge or divide fluids and do not require special tubing preparation before applications. Available in different threading specifications and various grades Buttweld Tee Fittings are engineered to close tolerances and precise dimensions.





Buttweld Cross Fitting

Buttweld Cross Fittings are used in several industries for providing leak free and torque free sealing in any piping or tubing connection. Offered in various grades Buttweld Cross Fittings are reckoned for their close tolerances and excellent finishes.

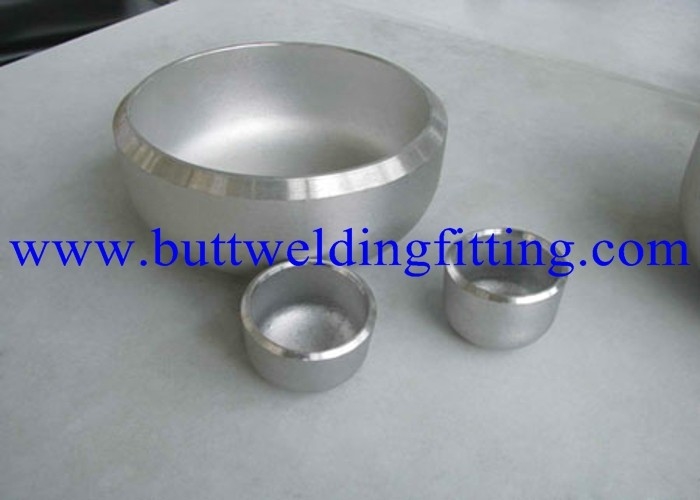

Buttweld Cap Fitting

The function of a Buttweld End Cap Fitting is to block off the end of a line in a piping system. The Buttweld Cap is fitted by placing the end cap over the open line and welding around the joint.



Buttweld Stub End Fitting

Stub Ends are installed in pairs and mated together with two Lap Joint Flanges. The surface of the stub end has a phonographic serrated gasket surface which prevents leakage at the joint. Using stub ends allows sections of the line to be opened for cleaning, inspection or quick replacement etc, without the need to re-weld.



 Eccentric / Concentric Reducer Fitting

There are two options available, of Concentric Reducer or Eccentric Reducer.

 An Eccentric Reducer, also called a Bell reducer, has two female (inside) threads of different sizes with centers so designed that when they are joined, the two pieces of pipe are not in line with each other, but they can be installed so as to provide optimum drainage of the line.

The fitting is designed with the smaller outlet off center to the larger end, allowing it to align with only one side of the inlet. The reducer fittings are designed to be welded with ease and offer superior strength and leak resistance.

Eccentric Reducer must be installed with straight side up to prevent trapping air at the pump suction. They are designed to allow simple connection of different sized pipes. These can be used as pipe reducers, flexible connectors and vibration eliminators.

Eccentric Reducers eliminate noise and isolate vibration in the pipeline, reduces stress, eliminates electrolysis and protects against start-up surges.

 A Concentric Reducer joins the tube sections on the same axis. They connect unequal size pipes that have a common centerline and are used for TC transitions in vertical tubing.

A Concentric Reducer has different size ends to mate hose or tubing of different diameter that joins tube sections on the same axis. Since virtually all piping systems go through changes in diameter either in the run or at the equipment connections, a reducer serves the dual purpose of changing the piping diameter and at the same time that of handling the expansion, misalignment or vibration problem.

While there are published transition sizes and face to face dimensions, it is seldom that the cataloged sizes refer to what is required on the jobsite. Hence, the face to face dimensions as well as the two flange sizes are varied to fit the application. Thus, Custom reducers are easily manufactured as per the specifications.



1.1.1     Dimensions for Buttweld Fittings:

- BS 1640/ANSI - ASME B16.9 - B16.28 - B16.25
- Seamless, EFW, ERW, DSAW and Forged

1.1.2     Material Grades for Buttweld Fittings

All buttweld fittings are available in the following material grades:

·         Stainless Steel

·         A403 304/L

·         310

·         316/L

·         321/H

·         347/H

·         410

·         440

·         904L

·         Carbon Steel

·         A234 WPB, WPC

·         Low Temperature Steel

·         A420 WPL6, WPL3

·         Alloy Steel

·         A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

·         High Yield

·         WPHY42, 52, 60, 65, 70

·         Duplex & Super Duplex

·         A815 UNS 31803, UNS 31254, UNS S32750

·         UNS S32760

·         Nickel Alloys

·         200, 400, K500, 600, 625, 800, 825

·         Alloys

·         ALLOY 20

·         ALLOY C

·         ALLOY C276

·         ALLOY B2

·         Aluminium

·         5083, 5154, 5251, 6061, 6063, 6082

·         Unusual Grades

·         Bronze, Brass, Copper

·         Cupro Nickel

·         Titanium
