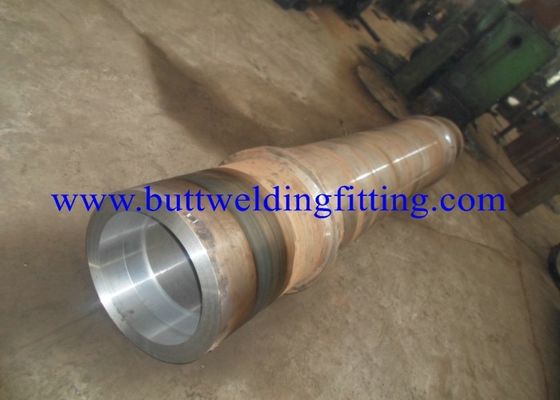

Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045

  • Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045
  • Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045
  • Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045
  • Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045
  • Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number DIN, DIN 2391
Minimum Order Quantity 100KGS
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 1500 tons per month
Product Details
Standard DIN, DIN 2391 Color White, Silver
Material Carbon Steel Type Tube
Highlight

copper nickel pipe

,

copper nickel tubing
Leave a Message
Product Description



Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045

Quick Details

Standard:
DIN, DIN 2391
 Grade:
10#-45#, Cr-Mo alloy, ST35-ST52, 45#, 30CrMo, 34CrMo4, St52, St52.4
 Thickness:
0.8 - 50 mm
Section Shape:
Round
 Outer Diameter:
10 - 325 mm
 Place of Origin:
China
Secondary Or Not:
Non-secondary
 Application:
Hydraulic Pipe
 Technique:
Cold Drawn
Certification:
ISO9001-2008 or Third party
 Surface Treatment:
Internal honing,internal skiving and roller burnishing,external machin
 Special Pipe:
Thick Wall Pipe
Alloy Or Not:
Non-alloy
 material-1:
carbon steel like SAE1020,SAE1045,C45E
 material-2:
low alloy steel like E355,St52,SAE1026
material-3:
alloy steel like SAE4130,SAE4140,25CrMo4,

Packaging & Delivery

Packaging Details: Tubes will be tied in bundles by steel strips, Internal and external oil coating, and end plastic caps. External packing by knit bags.
Delivery Detail: 30 Days




Product Description

1. Commodity: Honed hydraulic cylinder tube

2. Types:  honed tubes, skived and roller burnished tubes

3. Manufacture method: Cold rolled, Hydraulic cold drawn

4. Internal surface treatment method: honing or skiving and roller burnishing.

5. Size range: 40mm*30mm - 325mm*300mm

6. Standard&material: EN10305-1 E355,C45E,34CrMo4,42CrMo4,DIN2391-2 ST52,ST52.3,ST52.4,ASTM A519 SAE1020,SAE1045,SAE1026,SAE4130,SAE4140,etc.

7. Delivery condition: BK(+C), BKW(+LC), BKS(+SR), GBK(+A), NBK(+N).

8. OD tolerance: as per DIN2391-1, EN10305-1, ASTM A519 or as per customer's requirement.

9. ID tolerance: H7,H8,H9,H10 or given by customer.

10. Roughness of internal surface: 0.35um max for honed tubes, 0.25um max for skived&roller burnished tubes.

10. Wall Thickness tolerance (eccentricity): +/-5%

11. Ovality of OD: 0.15mm max for tubes with OD below 150mm, 0.25mm max for tubes with OD above 150mm.

12. Straightness: 0.5mm/1000mm max for tubes below 3000mm, 0.8mm/1000mm max for tubes between 3000mm and 6000mm, 1.2mm/1000mm for tubes above 6000mm.



Tolerance of ID of skived&roller burnished tubes:



ID / MM

H7

H8

H9

H10

30<ID≤50

+0.025/-0

+0.039/-0

+0.062/-0

+0.100/-0

50<ID≤80

+0.030/-0

+0.046/-0

+0.074/-0

+0.120/-0

80<ID≤120

+0.035/-0

+0.054/-0

+0.087/-0

+0.140/-0

120<ID≤180

+0.040/-0

+0.063/-0

+0.100/-0

+0.160/-0

180<ID≤250

+0.046/-0

+0.072/-0

+0.115/-0

+0.185/-0

250<ID≤315

+0.052/-0

+0.081/-0

+0.130/-0

+0.210/-0

315<ID≤400

+0.057/-0

+0.089/-0

+0.140/-0

+0.230/-0

400<ID≤500

+0.063/-0

+0.097/-0

+0.155/-0

-







TOBOGROUP deal with stainless steel welded pipe and tube already more than 10 years, every year sell
more than 80000 tons of stainless steel pipe and tube. Our client already cover more than 45 countries.
Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical
 Industry, Food plant, Paper plant, Gas and Fluid Industry etc.

Why choose us!
1. We are the specialized supplier of stainless steel materials, can provide the best price!
2. We have more than 30 years experience in exporting products to worldwide countries, can provide the high quality products!
3.  We have three thousand tons of stock in warehouses with abundant capital. Furthermore, we offer charge sales, credit and 7-day 24-hour services.
4. Wide excellent experiences with after-sale service.
5. Every process will be checked by responsible QC which insures every product's quality.
6. Professional packing teams which keep every packing ely.
7. Trial order can be done in very short time.
8. Samples can be provided as your requirements.



Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045
