Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045

China Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045 supplier
Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045 supplier Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045 supplier Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045 supplier Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045 supplier Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045 supplier

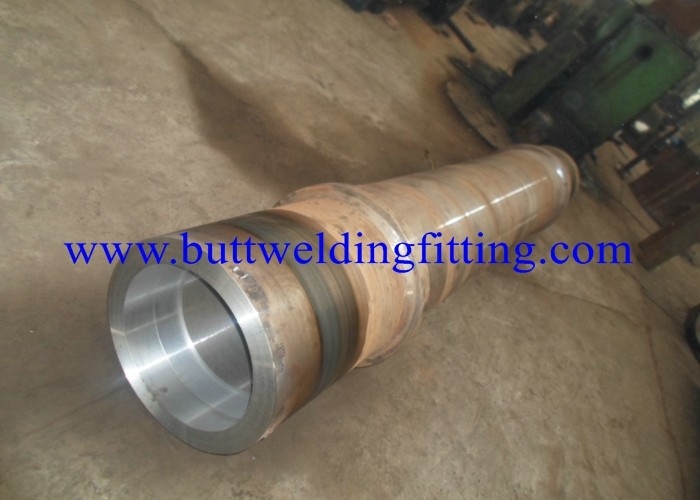

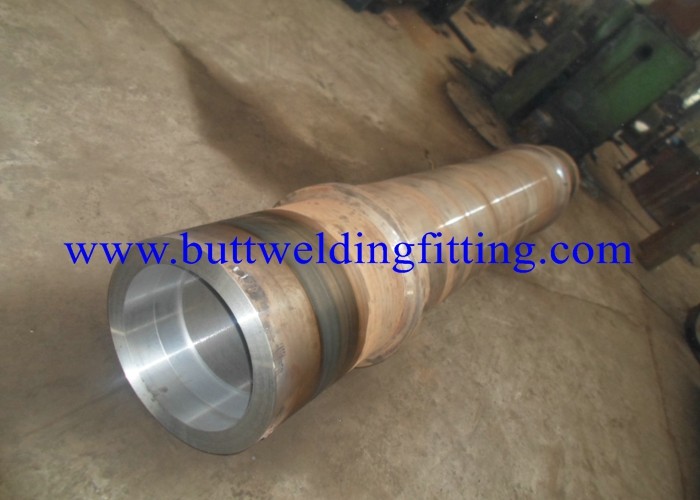

Large Image :  Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045

Product Details:

Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: DIN, DIN 2391

Payment & Shipping Terms:

Minimum Order Quantity: 100KGS
Price: negotiable
Packaging Details: in plastic bags then in bundles
Delivery Time: 15days->
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1500 tons per month
Contact Now
Detailed Product Description
Standard: DIN, DIN 2391 Color: White, Silver
Material: Carbon Steel Type: Tube



Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045

Quick Details

Standard:
DIN, DIN 2391
Grade:
10#-45#, Cr-Mo alloy, ST35-ST52, 45#, 30CrMo, 34CrMo4, St52, St52.4
Thickness:
0.8 - 50 mm
Section Shape:
Round
Outer Diameter:
10 - 325 mm
Place of Origin:
China
Secondary Or Not:
Non-secondary
Application:
Hydraulic Pipe
Technique:
Cold Drawn
Certification:
ISO9001-2008 or Third party
Surface Treatment:
Internal honing,internal skiving and roller burnishing,external machin
Special Pipe:
Thick Wall Pipe
Alloy Or Not:
Non-alloy
material-1:
carbon steel like SAE1020,SAE1045,C45E
material-2:
low alloy steel like E355,St52,SAE1026
material-3:
alloy steel like SAE4130,SAE4140,25CrMo4,

Packaging & Delivery

Packaging Details: Tubes will be tied in bundles by steel strips, Internal and external oil coating, and end plastic caps. External packing by knit bags.
Delivery Detail: 30 Days




Product Description

1. Commodity: Honed hydraulic cylinder tube

2. Types:  honed tubes, skived and roller burnished tubes

3. Manufacture method: Cold rolled, Hydraulic cold drawn

4. Internal surface treatment method: honing or skiving and roller burnishing.

5. Size range: 40mm*30mm - 325mm*300mm

6. Standard&material: EN10305-1 E355,C45E,34CrMo4,42CrMo4,DIN2391-2 ST52,ST52.3,ST52.4,ASTM A519 SAE1020,SAE1045,SAE1026,SAE4130,SAE4140,etc.

7. Delivery condition: BK(+C), BKW(+LC), BKS(+SR), GBK(+A), NBK(+N).

8. OD tolerance: as per DIN2391-1, EN10305-1, ASTM A519 or as per customer's requirement.

9. ID tolerance: H7,H8,H9,H10 or given by customer.

10. Roughness of internal surface: 0.35um max for honed tubes, 0.25um max for skived&roller burnished tubes.

10. Wall Thickness tolerance (eccentricity): +/-5%

11. Ovality of OD: 0.15mm max for tubes with OD below 150mm, 0.25mm max for tubes with OD above 150mm.

12. Straightness: 0.5mm/1000mm max for tubes below 3000mm, 0.8mm/1000mm max for tubes between 3000mm and 6000mm, 1.2mm/1000mm for tubes above 6000mm.



Tolerance of ID of skived&roller burnished tubes:



ID / MM

H7

H8

H9

H10

30<ID≤50

+0.025/-0

+0.039/-0

+0.062/-0

+0.100/-0

50<ID≤80

+0.030/-0

+0.046/-0

+0.074/-0

+0.120/-0

80<ID≤120

+0.035/-0

+0.054/-0

+0.087/-0

+0.140/-0

120<ID≤180

+0.040/-0

+0.063/-0

+0.100/-0

+0.160/-0

180<ID≤250

+0.046/-0

+0.072/-0

+0.115/-0

+0.185/-0

250<ID≤315

+0.052/-0

+0.081/-0

+0.130/-0

+0.210/-0

315<ID≤400

+0.057/-0

+0.089/-0

+0.140/-0

+0.230/-0

400<ID≤500

+0.063/-0

+0.097/-0

+0.155/-0

-







TOBOGROUP deal with stainless steel welded pipe and tube already more than 10 years, every year sell
more than 80000 tons of stainless steel pipe and tube. Our client already cover more than 45 countries.
Our stainless steel seamless pipe and tube was width used in Mining, Energy, Petrochemical, Chemical
 Industry, Food plant, Paper plant, Gas and Fluid Industry etc.

Why choose us!
1. We are the specialized supplier of stainless steel materials, can provide the best price!
2. We have more than 30 years experience in exporting products to worldwide countries, can provide the high quality products!
3.  We have three thousand tons of stock in warehouses with abundant capital. Furthermore, we offer charge sales, credit and 7-day 24-hour services.
4. Wide excellent experiences with after-sale service.
5. Every process will be checked by responsible QC which insures every product's quality.
6. Professional packing teams which keep every packing safely.
7. Trial order can be done in very short time.
8. Samples can be provided as your requirements.



Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045Honed Hydraulic Cylinder Tube DIN DIN 2391 Carbon Steel Like SAE1020 SAE1045
