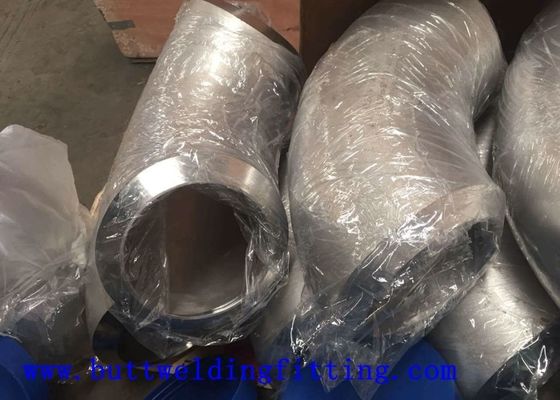

ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow THK SCH5S - SCH160 XXS

  • ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow THK SCH5S - SCH160 XXS
  • ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow THK SCH5S - SCH160 XXS
  • ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow THK SCH5S - SCH160 XXS
  • ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow THK SCH5S - SCH160 XXS
  • ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow THK SCH5S - SCH160 XXS
Place of Origin China, India, USA, Korea, UE
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM B366 UNS N10276 Hastelloy C276
Minimum Order Quantity 100KGS
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union,
Supply Ability 1500 tons per month
Product Details
Standard ASTM B366 UNS N10276 Hastelloy C276 Color White, Silver
Material UNS N10276 Hastelloy C276 Type ELBOW
Highlight

Butt Welding Elbow

,

Pipe Fittings Elbow
Leave a Message
Product Description

ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow



Quick Details

Material: Hastelloy C276, etc Technics: Forged Type: Hastelloy C276 45 Degree Elbow
Place of Origin: China Head Code: Round Brand Name: TOBO
Connection: Welding Shape: Equal

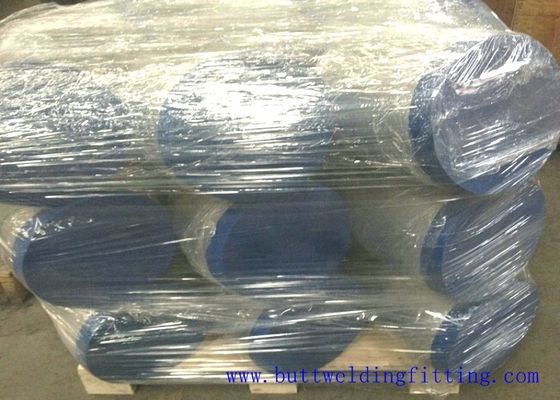

Packaging & Delivery

Packaging Details: plywood case or fumigation woodern case
Delivery Detail: 2 - 10 days



Specifications

ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow

1) Size: 1/2"~48" (DN15 - DN1200)

2) THK: SCH5S - SCH160 XXS

3) Material: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,

Hastelloy C276, Hastelloy C276, Hastelloy B1/B2/B3, Alloy 20, etc

ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow is mainly used for connecting two pipes or tubes,

allowing a change of direction. We can provide short radius elbows and long radius elbows.

Usually, 45 Degree Elbow is made of duplex stainless steels, stainless steels, alloy steels, and more.

ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow

Type 45 Degree Elbow
Size

SMLS Elbow 1/2"~24" (DN15 - DN600)

Welded Elbow 1/2"~48" (DN15 - DN1200)
Wall thickness

sch10, sch20, sch30, std, sch40, sch60,

xs, sch80, sch100, etc
Standards ASME, ASTM, DIN, JIS, etc
Material

Carbon Steel: ASTM: SA105N/A105, ASTM SA350 LF2,etc

Stainless Steel: ASTM A182 F304/304L/316/316L, etc

Alloy Steel: ASTM A182 F1/F5/F9/F11/F22/F91, Etc.

Duplex stainless steel: ASTM A182 F51/F53/F55/F60, etc

Nicke alloys: Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800,

Hastelloy C276, Hastelloy C276, Hastelloy B1/B2/B3, Alloy 20, etc

Cu-Ni: 90/10,70/30, etc
Surface treatment Transparent oil, rust-proof black oil or hot galvanized
Applications Petroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc



Specifications - ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow

ASTM B619, B366, B564
ASME SB619, SB366, SB564









ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow THK SCH5S - SCH160 XXS

Chemical Composition - ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow

C Co Cr Fe Mn Mo Ni P S Si V W
Max Max     Max     Max Max Max Max
0.01% 2.5%

14.5%

-16.5%

 4-7% 1.0% 15 -17% BAL .04% 0.03% 0.08% 0.35% 3-4.5%













Mechanical & Physical Properties Of ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow

Density 8.89 g/cm3
Melting Point 1370 °C (2500 °F)
Tensile Strength Psi – 1,15,000 , MPa – 790
Yield Strength (0.2%Offset) Psi – 52,000 , MPa – 355
Elongation 40 %

What are the characteristics of Hastelloy C276?

1,Excellent corrosion resistance in reducing environments

2,Exceptional resistance to strong solutions of oxidizing salts, such as ferric and cupric chlorides

3,High nickel and molybdenum contents providing good corrosion resistance in reducing environments

4,Low carbon content which minimizes grain-boundary carbide precipitation during welding to in heat-affected zones of welded joints

5,Resistance to localized corrosion such as pitting and stress-corrosion cracking

6,One of few materials to withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide



Design Features - UNS N10276 Hastelloy C276

1,Outstanding corrosion resistance and oxidizing environments.

2,Excellent resistance to pitting and stress-corrosion cracking.

3,Maintains corrosion resistance in welded joints.



Application of UNS N10276 Hastelloy C276

1. They are manufactured to be used in flow lines for gases, fluids in industrial processes, medical, construction and many other specialized applications.

2. The UNS N10276 45 Degree Elbows are constructed of heavy materials for rigid applications like extreme high/low temperature resistance etc.

3. The UNS N10276 45 Degree Elbows are specifically designed for use on process and control systems, instrumentation, and equipment used in chemical, petroleum, fluid power, electronic and pulp and paper plants.





ASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow THK SCH5S - SCH160 XXSASTM B366 UNS N10276 Hastelloy C276 45 Degree Elbow THK SCH5S - SCH160 XXS
