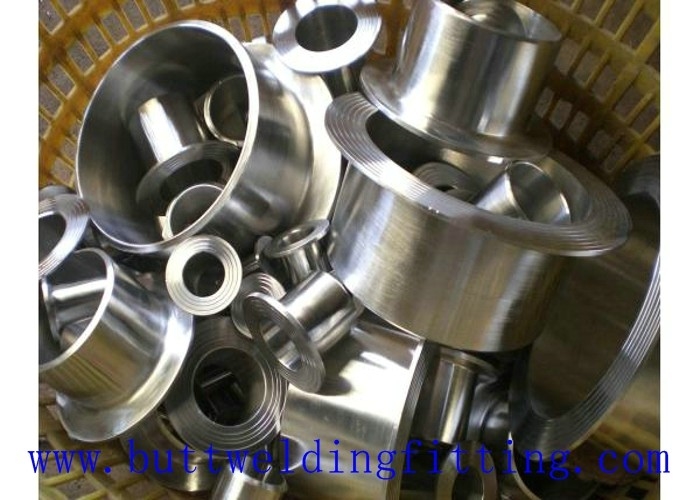

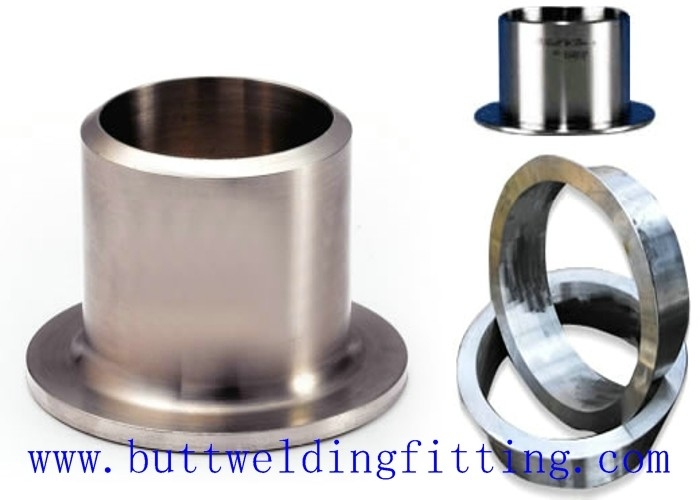

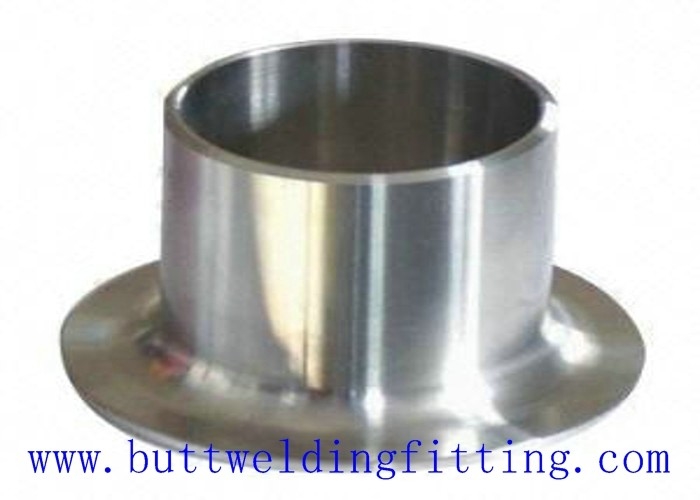

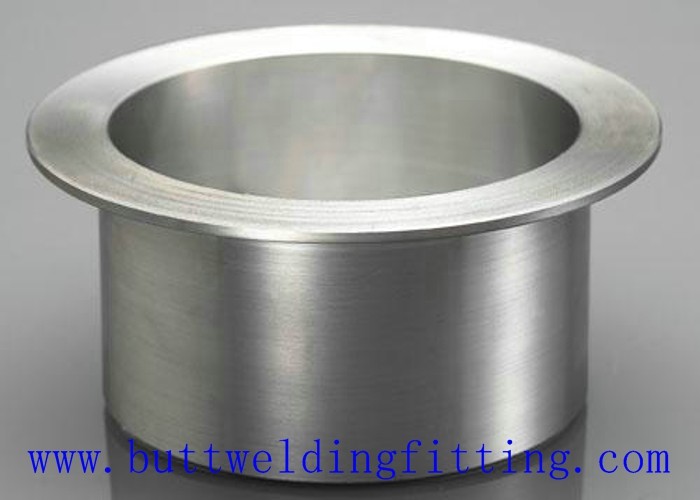

Material UNSS31803 Stainless Steel Stub Ends

  • Material UNSS31803 Stainless Steel Stub Ends
  • Material UNSS31803 Stainless Steel Stub Ends
  • Material UNSS31803 Stainless Steel Stub Ends
  • Material UNSS31803 Stainless Steel Stub Ends
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Seamless or weld
Minimum Order Quantity 1pc
Price USD
Packaging Details Wooden case
Delivery Time 10-100 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 8000 pcs per month
Product Details
Material Grrade UNSS31803 Size 1-48inch
Standard ASME B16.9 Type Seamless Or Weld
DN 15-1200
Highlight

SS Stub End

,

Stub End Fittings
Leave a Message
Product Description

Stainless Steel Stub Ends ASME B16.9 UNSS31803 Size 1-48inch



1.Material: ASME B 16.9 304 304l 316L 321 310s
2.Technics: Cold Forming
3.Type: Elbow , Tee,Reducer,caps
4.Place of Origin: Zhejiang China (Mainland)

5.Standard: ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH

6.Certs: ISO 9001 2008, CE, TUV

7.Delivery Time:10days-20days


Monthly Production Volume: 20000 Pieces



Base on excellente quality, satisfactory service and reasonable prcie, our products have exported to USA, Russia, Korea, Brazil, Chile, Peru and MId East, more than 20 countries.



Certification: ISO 9001:2008;



ASME/ANSI B16.9 stainless steel stub end

Type Butt welded pipe fittings
Size Seamless 1/2" To 24" Welded To 72"
Wall thickness Sch5S-Sch160, XS,XXS
Standards ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc
Material

Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L

Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, 46, 52, 56, 60, 65, 70, 80

Alloy Steel: ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 Low Temperature: ASTM A420 WPL 1, WPL 3, WPL 6
Surface treatment Black painting,anti-rust varnish,anti-rust oil,hot galvanized,3PE coating, epoxy coating.
Packing wooden case, pallet or as customers’ requirement
Applications Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc
Min order 50 pieces
Delivery time 7 after receipt of advanced payment
Certificate API, CCS,and ISO9001:2000
Productivity 150000 ton per year
Keywords:

stainless steel pipe fitting.



Specifications

Product Name: Butt Welding Stainless Steel Fitting Stub end

Size Range:
DN15-DN600 (1/2"-24") Seamless Type
DN15 - DN1200 (1/2"- 48" ) Welded type
Wall Thickness: SCH5 to SCH160
Material:
Carbon Steel: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 etc
Stainless Steel: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Alloy Steel: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760
DIN 1.4301,1.4401,1.4404,1.4541,1.4401,1.4571 etc
Manufacture Standard:
ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
End Bevel: According to the standard or the customer's requirements

Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection



APPLICATIONS :

1. Pipe and Tubes for petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry



Other Features:



1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce pipes with special specifications according to customers’ requirements;







Material UNSS31803 Stainless Steel Stub Ends
