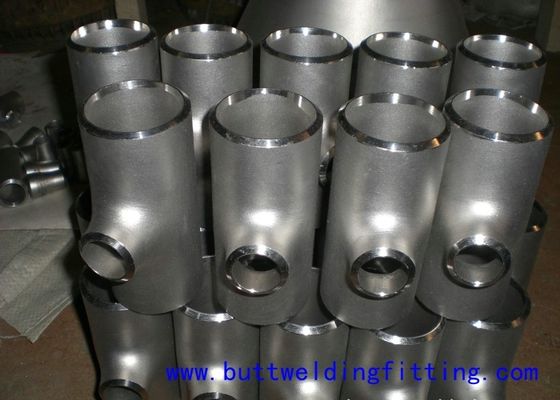

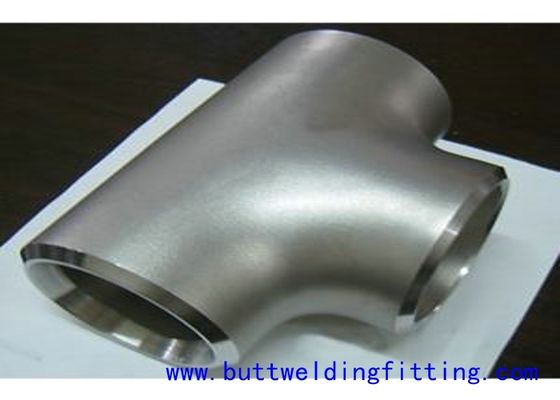

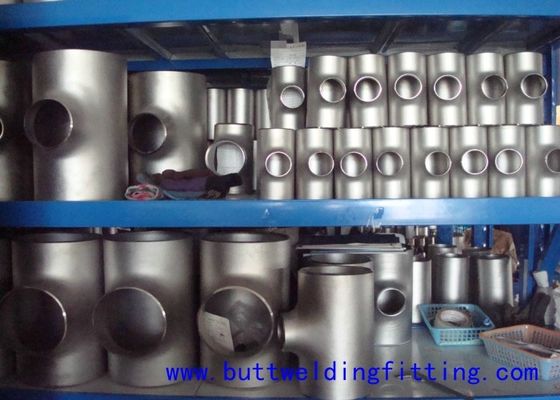

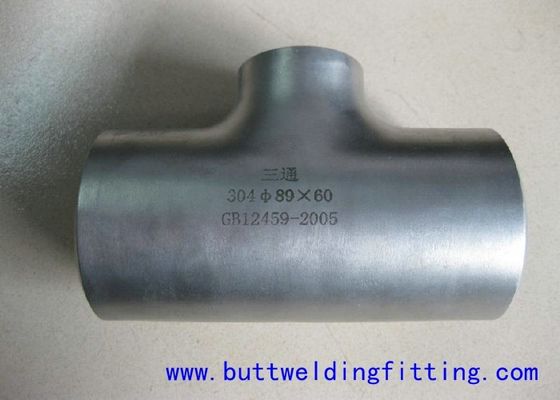

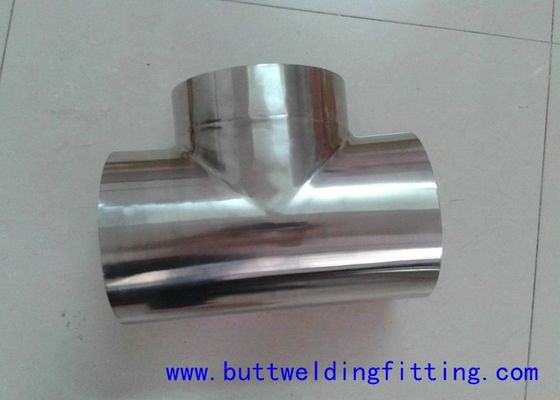

Stainless Steel Tee Butt Welding Tee ASTM A403 ASME B16.9 WPXM-19

  • Stainless Steel Tee Butt Welding Tee ASTM A403 ASME B16.9 WPXM-19
  • Stainless Steel Tee Butt Welding Tee ASTM A403 ASME B16.9 WPXM-19
  • Stainless Steel Tee Butt Welding Tee ASTM A403 ASME B16.9 WPXM-19
  • Stainless Steel Tee Butt Welding Tee ASTM A403 ASME B16.9 WPXM-19
  • Stainless Steel Tee Butt Welding Tee ASTM A403 ASME B16.9 WPXM-19
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number Stainless Steel Tee
Minimum Order Quantity 1pc
Price USD Depending on quantity
Packaging Details Wooden case
Delivery Time 10-100 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 8500 pcs per month
Product Details
Material A403 Size 1/2-48inch
Standard ASME B16.9 Type Seamless Or Weld
DN 15-1200 Thinckness Sch10- 160
Highlight

stainless steel pipe tee

,

butt weld tee
Leave a Message
Product Description

Stainless Steel Tee Butt-welding Tee ASTM A403 WPXM-19 1/2-48''sch40 ASME B16.9



DESCRIPTION
A403 is a high-alloy austenitic stainless steel with low carbon content. The grade is intended for use under severe corrosive conditions.



Standardized and approved for pressure vessel use in several countries. Structurally, 403

is fully austenitic and is less sensitive to precipitation ferrite and sigma phases than conventional austenitic grades with high molybdenum content. Characteristically, due to the combination of relatively high contents of chromium, nickel, molybdenum and copper 904L has good resistance to general corrosion, particularly in sulfuric and phosphoric conditions.





TENSILE REQUIREMENTS
KSI 70 KSI 25 KSI can be converted to MPA (Megapascals) by multiplying by 6.895.

Unit : inch
Nominal
Pipe
Size		 Outside Dia.
(OD)		 Wall Thickness (T) Tees Center To Ends C.M
    Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.00
3/4 1.050 0.065 0.083 0.113 0.154 1.13
1 1.315 0.065 0.109 0.133 0.179 1.50
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25
2 2.375 0.065 0.109 0.154 0.218 2.50
2-1/2 2.875 0.083 0.120 0.203 0.276 3.00
3 3.500 0.083 0.120 0.216 0.300 3.38
4 4.500 0.083 0.120 0.237 0.337 4.13
5 5.563 0.109 0.134 0.258 0.375 4.88
6 6.625 0.109 0.134 0.280 0.432 5.63
8 8.625 0.109 0.148 0.322 0.500 7.00
10 10.750 0.134 0.165 0.375 0.500 8.50
12 12.750 0.156 0.180 0.375 0.500 10.00
14 14.000 0.156 0.250 0.375 0.500 11.00
16 16.000 0.165 0.250 0.375 0.500 12.00
18 18.000 0.165 0.250 0.375 0.500 13.50
20 20.000 0.188 0.250 0.375 0.500 15.00
24 24.000 0.218 0.250 0.375 0.500 17.00

Dtailed Production Description

1)Size: Seamless: 1/2”-60" SCH10s-XXS

2)Standard: ANSI B16.9/B16.11/B16.28, DIN, JIS, ISO

3)Material:carbon steel:A234-WPB WPC,

alloy steel :A420-WPL6, A234-WP11, A234-WP12, A234-WP5,A234-WP9,A234-WP22,15Mo3,15CrMoV,35CrmoV

stainless steel:A403 WP 304-304L-304H-304LN-304N

A403 WP 316-316L-316H-316LN-316N-316Ti

A403 WP 321-321H

A403 WP 347-347H

low tempture steel: A402 WPL3-WPL6

high performance steel: A860 WPHY 42-46-52-60-55-70

4)Surface treatment: carbon steel: shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,hot galvanizing

alloy steel: Shot blasted, black painting, rust-proof oil,transparent oil, galvanizing,hot galvanizing

stainless steel: pickled ,Polish

5)Nominal wall thickness:SCH5-SCH160, STD, XS, XXS

6)Packing: Wooden case or wooden pallet according to the size of fittings

7)Delivery time:7-10 days for a 20 ft container

8)Others:1) Special design available 2)All the production process are made under the ISO 9001:2000 strictly.

Application

Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical), chemical

and pharmaceutial, pulp and paper, fertilizer, desalination, nuclear, electrict power, boiler,heat exchanger,metallurgy, refinery,

machinery,steel fabrication,shipbuilding, water disposal, construction, aviation,textile,ect.

our advangtage

1) Raw material use 100% material steel

2) good service

3) Competive price

4) Fast delivery

5)High quality products

other products

we can provide steel butt weld pipe fittings such as elbow, tee, reducer,cap,bend and so on. Good quality, competitive price

and excellence service are your best choice.
