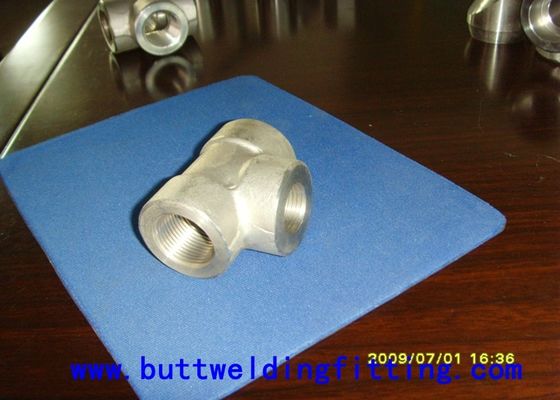

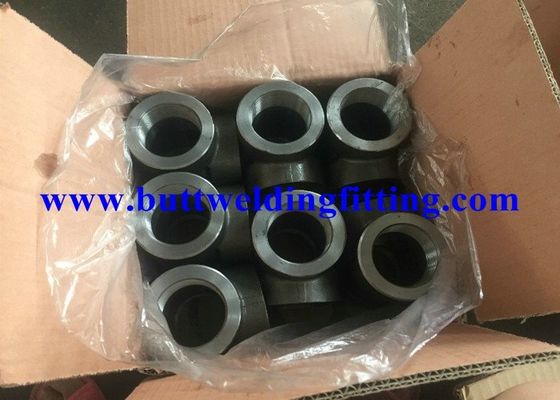

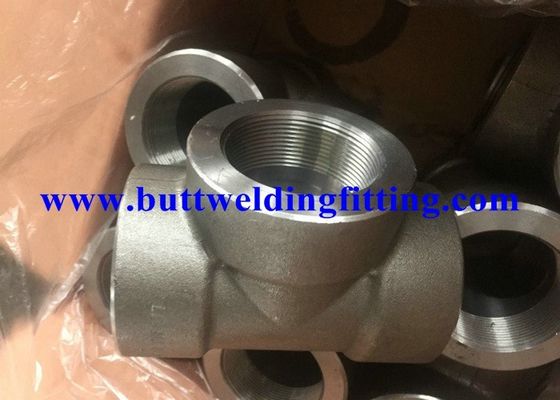

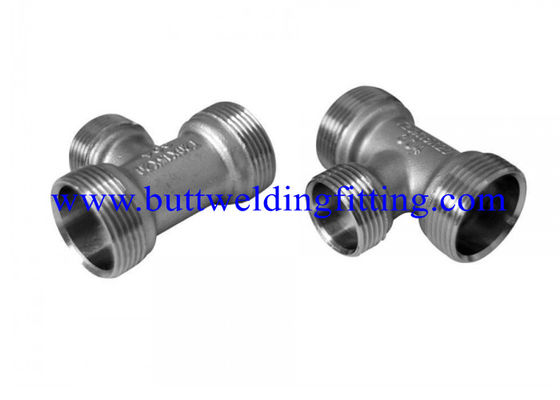

1 ” Equal Tee Forged Pipe Fittings

  • 1 ” Equal Tee Forged Pipe Fittings
  • 1 ” Equal Tee Forged Pipe Fittings
  • 1 ” Equal Tee Forged Pipe Fittings
  • 1 ” Equal Tee Forged Pipe Fittings
  • 1 ” Equal Tee Forged Pipe Fittings
Place of Origin CHINA
Brand Name TOBO
Certification ISO-9001:2000, API,CCS
Model Number ASTM A105
Minimum Order Quantity 3PCS
Price USD0.1-30 PER PC
Packaging Details PLY-WOODEN CASE
Payment Terms T/T
Supply Ability 10000000 PCS PER MONTH
Product Details
NAME Forged Pipe Fittings Connection NPT
Standard ASME , ANSI , JIS , DIN Application Petroleum, Chemical, Machinery, Electric Power, Shipbuilding, Papermaking, Construction Etc
Technics Forged Head Code Round
Shape Equal Color Silver
OEM Accepted
Highlight

forged steel pipe fittings

,

stainless steel forged fittings
Leave a Message
Product Description

Carbon Steel Forged Steel Pipe Fittings 1” Equal Tee – 6000 PSI NPT A105



Quick Details

Material: Carbon Steel Technics: Forged Type: equal tee
Place of Origin: Shanghai, China (Mainland) Model Number: 1" equal tee Brand Name: TOBO
Connection: NPT Shape: Hexagonal Head Code: Round
color: silver material: carbon steel
size: 1"  category: pipe fitting qualification: ISO , API , CE
standard: ASME , ANSI , JIS , DIN

Packaging & Delivery

Packaging Details: wooden cases or as requested
Delivery Detail: 7-10 days

Specifications

Carbon Steel Forged Steel Pipe Fittings 1” Equal Tee – 6000 PSI NPT A105

1. Forged Fittings Type: Elbow, cross, elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, Sage nipple, bull plug, reducer insert, pipe nipple etc.

2. Connection: Socket Welded, Threaded

3. Size Range: 1/8" - 4"(6mm - 100mm)

4. Pressure Rating:
Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS
Socket welding Wog 3000, 6000, 9000 LBS

5. Specifications:
1) Standard: ASME B 16.11, MSS-SP-79 83 9597
2) Material: ASTM A105, ASTM A182(F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91).
3) Size of raw material: Dia.19-85mm round bar.

6. Technology: Forged

7. Packing: Wooden cases or wooden pallet or as per customers requirement

8. Delivery Time: 15 days after order conformed

9. Payment: By T/T

10. Applications range: Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction etc



Carbon Steel Forged Steel Pipe Fittings 1” Equal Tee – 6000 PSI NPT A105

TYPE

A:ELBOW,TEE,COUPLING,HALCOUPLING,CAP,PLUG,BUSHING,UNION,

OUTLET,SWAGE NIPPLE,BULL PLUG,REDUCER INSERT AND HEX

NIPPLE,STREET ELBOWS,BOSS...ETC.
B:SOCKET-WELD,THREADED(NPT or PT TYPE),BUTT-WELDING,
SIZE NPS 1/8"-4"; DN6-100
RATING PRESSURE:THREADED END -2000/3000/6000LBS.
SOCKET-WELD END -3000/6000/9000/LBS.
BUTT WELD END -SCH40/SCH80/SCH160/XXS.

SPECIFICATIONS

STANDARD

A.DIM.SPEC.:ASME B16.11-2009(REVISION OF ASME B16.11-2005);

MSS SP- 79,83,95,97and BS3799.

B.ASTM A105, A350 LF2, A106, A312, A234, A403, ASTM A182(F304,

F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22,91).
C.SIZE of RAW MATERIAL: DIA. 19-85MM ROUND BAR.
MARKING A.CARBON and ALLOY STEEL: MARKED BY STAMPING.

B.STAINLESS STEEL:MARKED BY ELECTRO-ETCHED,JET PRINTED or

STAMPING.
C.3/8"UNDER: BRAND ONLY.

D.1/2"to 4":MARKED WITH BRAND,MATERIAL,HEAD CODE,

B16(FOR ASME B16.11PRODUCT),RATING AND SIZE.
E:AS THE REQUIREMENT of CUSTOMER.
PACING IN WOODEN CASES or PALLETS, or AS PER CLIENTS’ REQUIREMENTS.
APPLICATION

PETROLEUM,CHEMICAL,MACHINERY,ELECTRIC POWER,SHIPBULING,

CONSTRUCTION, ECT.
Special design available as the requirement of customer




1 ” Equal Tee Forged Pipe Fittings
