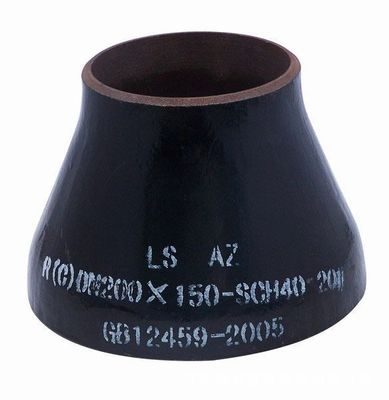

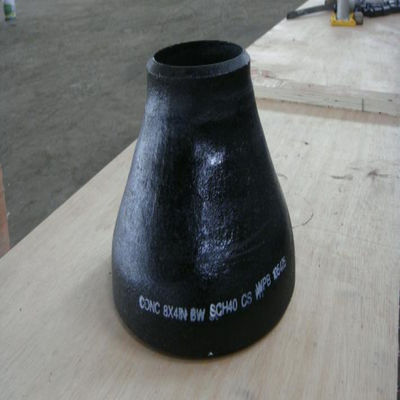

BW Fittings A234M WP22 Seamless Concentric Reducer Black 2''x1'' STD

 BW Fittings A234M WP22 Seamless Concentric Reducer Black 2''x1'' STD

Product Description

1. Material Grade: ASTM A234/A234M WP22 CL3

2. Size: 1''-24''

3. Standard: ASME B16.9

4. Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED

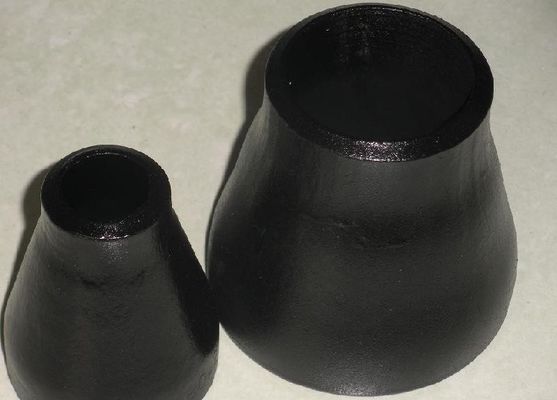

Concentric Reducer or Eccentric Reducer.

A Concentric Reducer joins the tube sections on the same axis. They connect unequal size pipes that have

a common centerline and are used for TC transitions in vertical tubing.

An Eccentric Reducer, also called a Bell reducer, has two female (inside) threads of different sizes with centers

so designed that when they are joined, the two pieces of pipe are not in line with each other, but they can be installed

so as to provide optimum drainage of the line.

Our Service

Why Choosing Metal Industrial:

-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Metallurgical Equipment
-Experienced Professinonals on Communications

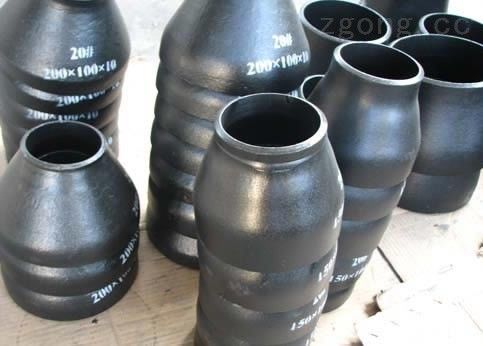

Our regular production and stock items include stainless steel reducers, carbon steel reducers, alloy steel reducers

and duplex steel reducers. A steel pipe reducer is one of the most commonly used industrial pipe fitting, which helps to

connect two pipes or tubes of different diameters. These are mainly used to adapt different pipe size in a pipeline system.

ANSI B16.9 Pipe reducers can mainly be categorized in two types – concentric reducer and eccentric reducer, are very much

resistant to oxidation and chemical corrosion, and has low creep rates under high stresses at temperatures as well has some

high stress-rupture effectiveness and after suitable heat treatment.

Manufacturing Standards of Buttweld Pipe Reducers

Packing&Delivery

Packing Details :In wooden case, pallets or as per customers’ requirement

Delivery Details : 7-15 days after the PO
