Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry

Home ProductsSpiral Wound Gasket

Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry

China Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry supplier
Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry supplier Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry supplier Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry supplier Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry supplier Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry supplier Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry supplier

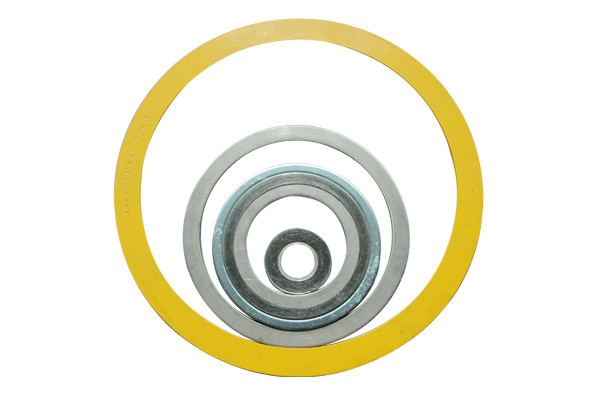

Large Image :  Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry

Product Details:

Place of Origin: Shanghai, China (Main
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV
Model Number: TOBO87

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotation
Packaging Details: PLY-WOODEN CASE OR PALLET
Delivery Time: 7~15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 Piece/Pieces per Month
Contact Now
Verified Supplier

Shanghai, China (Main

  • Product Details
Detailed Product Description
Product Name: Metal Spiral Wound Gasket Flat Gaske Standard: ASTM
Type: Normal Application: Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding And So On.
Size: 1/8''-36'' Minimum Order Quantity: 1pcs
Packaging: PLY-WOODEN CASE OR PALLET Certificate: SGS/BV/ABS/LR/TUV

ASL 575 flange metal spiral wound gaskets Corrugated Gasket 1/8''-36''


Product Description


flange metal spiral wound gaskets Corrugated Gasket



Model: ASL 575

The metal Spiral wound gasket ASL 575 is a semi metallic flat gaskets spirally wound by V or W shaped stainless strip and filling material.

Features

By changing the gasket material combination, can solve the problem of various medium to chemical corrosion

of gasket;This kind of gasket compression resilience is good, with multi-channel sealing and certain self-tightening function that can partly eliminate the pressure, temperature changes and the effect of mechanical

vibration;Not binding flange surface, It is convenient for maintenance and replacement;

At high or low temperature, high vacuum, impact vibration cycle alternating and all kinds of harsh conditions, maintain its excellent sealing performance.



Application



Suitable for the temperature, pressure alternating severe sealing parts, its the static seal for pipe,

valve, pump, heat exchanger, tower, manhole, hand hole and others flange connection.

Through changing winding steel belt tension force, will change the density (hardness) of winding gasket to

meet the needs of various application areas, Widely used in petrochemical, machinery, electric power,

metallurgy, shipbuilding, medicine, atomic energy, and aerospace industries.



Technical Data

Type ASL 575A ASL 575B ASL 575C ASL 575D
Model Basic type inner ring outer ring inner&outer ring
Application Tongue/ groove surface Male/ female surface Raised face Raised face
Steel strip material 304 304L 316 316L 321 Monel Inconel ect.
Filling material ASB FG PTFE MICA CER
Rings material Carbon steel 304L 321 316L Monel Iconel
Pressure ≤260bar
Temperature -200℃~+1100℃
PH 0-14

China hardware grooved metal gasket metallic spiral wound gasket

Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace IndustryMetal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace IndustryMetal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry



Packing & Delivery
Metal Spiral Wound Corrugated Gasket 1/8'' - 36'' For Aerospace Industry





Packaging Details: wooden case

Delivery Detail: 10-100 days depending on the quantity
