Super Duplex 2507 2595MO Stainless Steel Flanges JIS Standard DN3600

Packaging Details

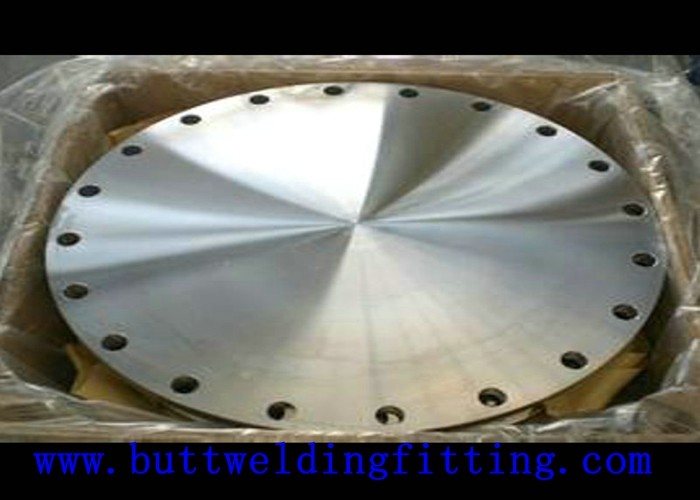

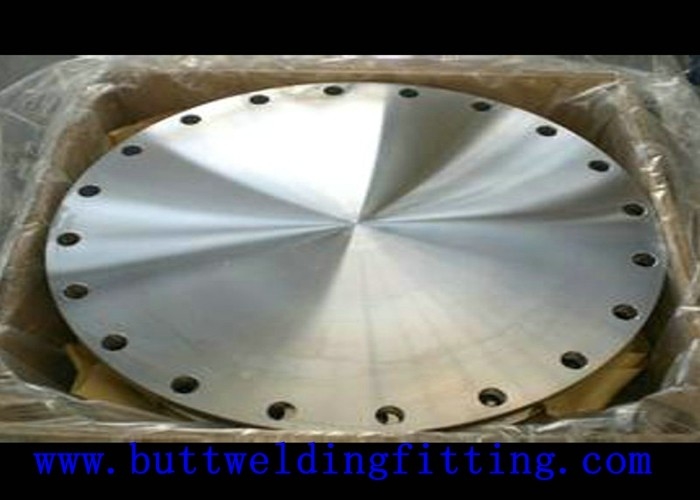

20" and below size will be packed in plywood cases,
24" and above size will be packed by plywood pallets

Delivery Time

5-20days

ASME SA182 2507 Super Duplex Stainless Steel Flange

1.Product Description

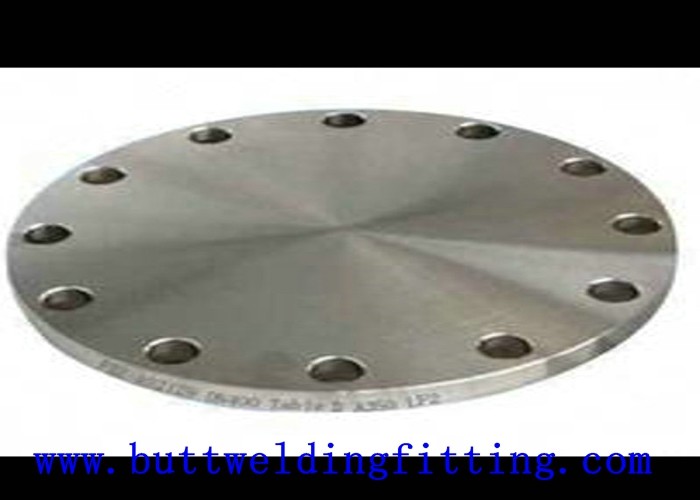

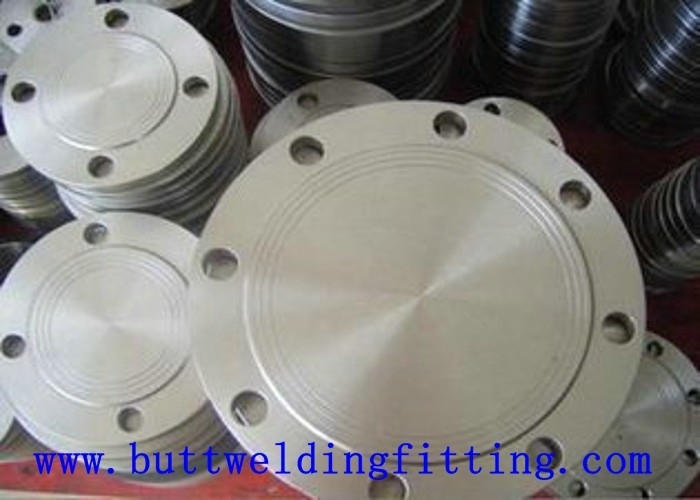

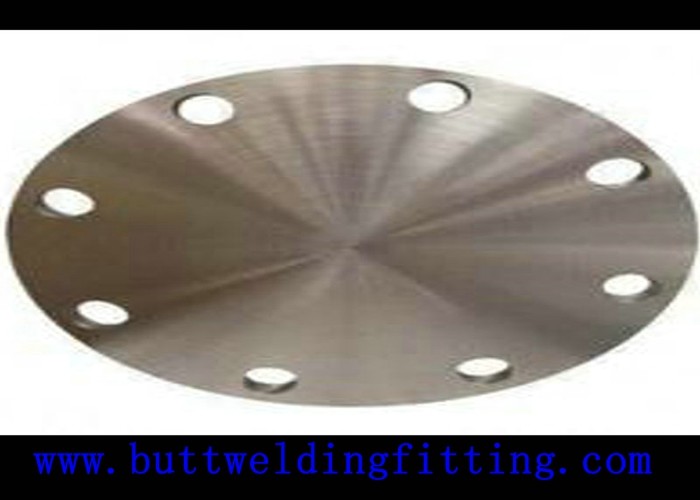

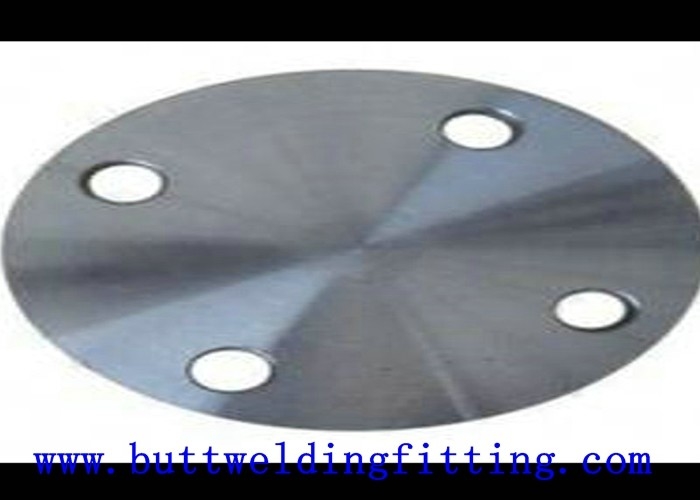

1)What's blind flange usage

• blind flange is used to close ends of piping systems. It is a kind of round plate with no center hold but with all the proper bolt holes. This blind flange is available in various sizes and materials and is used to provide positive closer on the ends of pipes, valves or equipment nozzles. This flange helps in easy access to a line once it has been sealed. The blind flange is sometimes custom made or machined to accept a nominal sized pipe to which reduction is being made. This reduction can be a threaded reduction or welded reduction.

2) Features of blind flanges:Some important features of blind flanges are as follows:

• Blind flanges are sometimes supplied with NPT fittings which allow pressure test connections to be fitted.
• They are used to blank off the ends of pipe.
• They are also used to blank off the ends of valves and pressure vessel opening.
• Considering factors like internal pressure and bolt loading, blind flanges, especially in the larger sizes, are the most highly stressed of all types of flanges.
• Since the maximum stresses in a blind flange are bending stresses at the center, they can ely be allowed to be higher than in other types of flanges.
• Blind flanges are made to fit standard pipes in all sizes.

3) Blind flange material

Stainless Steel : ASTM A 182, A 240
Grade : F304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
Carbon Steel : ASTM A 105, ASTM A 181
Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91
Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276
Copper Alloys : Copper, Brass & Gunmetal

Size : 1/8" NB TO 72"NB.
Class : 150#, 300#,400 #,600#,900#, 1500# & 2500 #.

4)Blind flange standard

ANSI :ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S : BS4504 , BS4504, BS1560, BS10
