ASTM B111 Round Copper Nickel Tube CuNi Condenser Pipe C715 70/30%
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/PED/TUV/SGS/LR/BV |
| Model Number | TOBO-933 |
| Minimum Order Quantity | 1 pcs |
| Price | negotiable |
| Packaging Details | Wooden case or as request |
| Delivery Time | 7-15 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, |
| Supply Ability | 10000000pcs per month |
Product Details
| Product Name | TOBO Copper Nickel Tube | Material | Monel 400 |
|---|---|---|---|
| Standard | ASTM B165 | Length | Single Random, Double Random & Cut Length |
| DN | 4-50 | Grade | NC003,NC010,NC012 |
| Type | Steel Pipe | Place Of Origin | China |
| Highlight | copper nickel pipe,copper nickel tubing |
||
Product Description
Packaging & Delivery
Packaging Details
Plastic film inside,trademark pasted in each bundle,wooden case outside.
Delivery Time
10-30(depend on the quantity of the order)

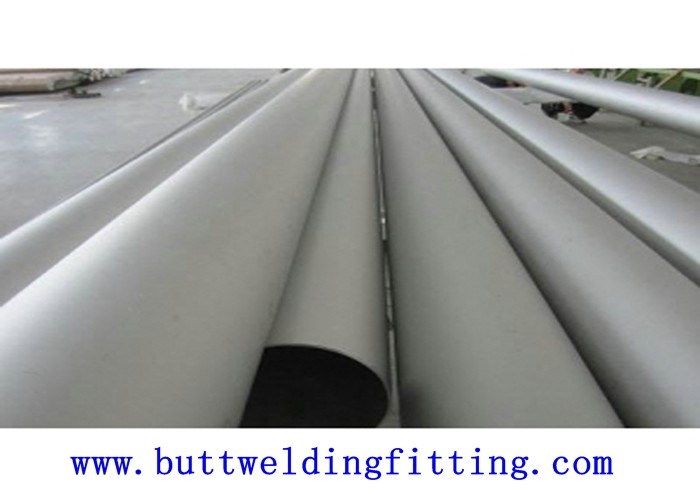

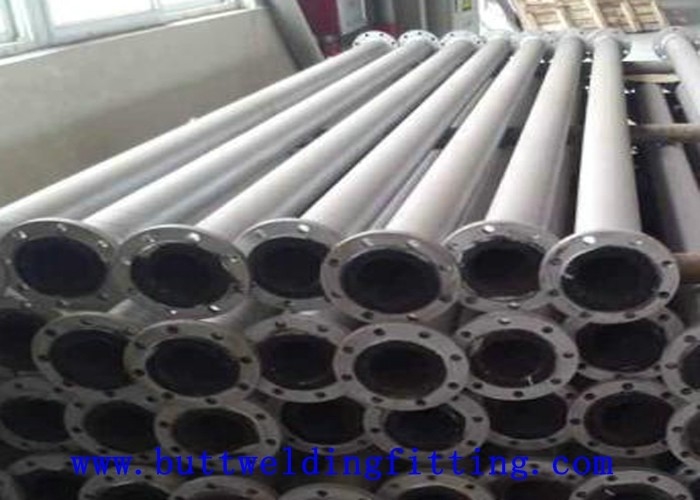

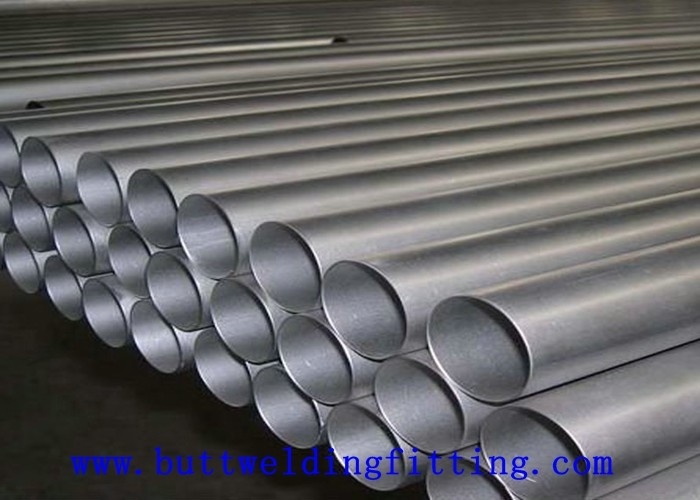

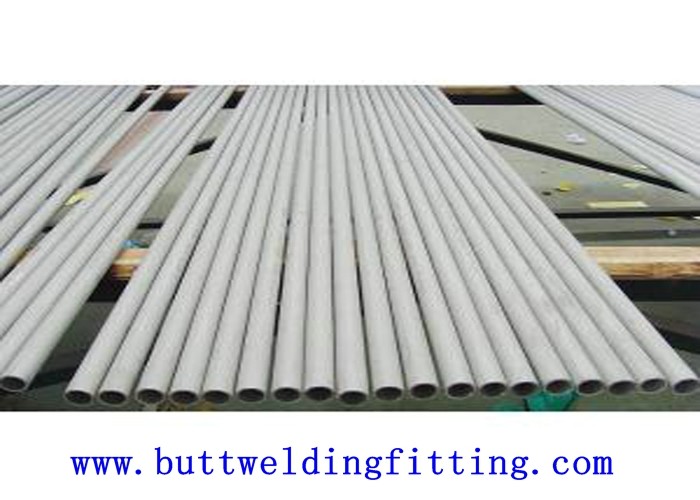

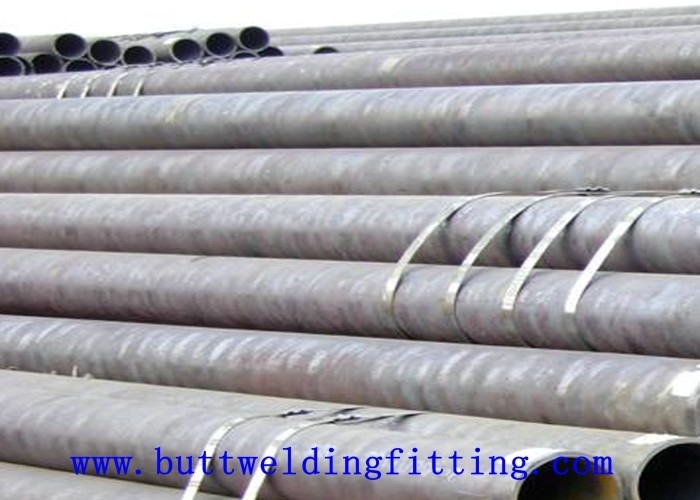

Products Photos
Grade:C70600
Application:Decoration,Construction,Industry,Handrail,Chemical,Air conditioner,Fridge,Water etc.
Size:Customize
Surface treatment:Mill Finish,Polish,etc.
We have the professional stock-arrangement.
Providing the most professional supply chain and service to you.
We have 3 large wholehouses are in Shanghai and Shandong.The huge stock quantity has attracted many clients.
The other 8 samll wholehouses are over China.
The best delivery arrangement will be offered to you.
We work on the best service.
We work on the best price.
We work on the best convinient deal face to face.
Standard Specifications
High quality seamless copper Nicikel pipe/ coil for air conditioner and refrigeration
Specifications:
1.certificate:ISO
2.high quality
3.competitive price
4.short delivery time
| Thickness O.D |
0.30 m m |
0.35 m m |
0.40 m m |
0.45 m m |
0.50 m m |
0.55 m m |
0.60 m m |
0.65 m m |
0.70 m m |
0.75 m m |
0.80 m m |
1.00 m m |
1.20 m m |
1.50 m m |
| 4.00 | • | • | • | |||||||||||
| 4.76 (3/16in) | • | • | • | • | • | • | • | • | • | • | • | |||
| 6.00 | • | • | • | • | • | • | • | • | • | • | • | |||
| 6.35 (1/4in) | • | • | • | • | • | • | • | • | • | • | • | • | ||
| 7.94 (5/16in) | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 8.00 | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 9.52 (3/8in) | • | • | • | • | • | • | • | • | • | • | • | • | • | • |
| 12 | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 12.70 (1/2in) | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 14.00 | • | • | • | • | • | • | • | • | • | • | • | • | ||
| 15.00 | • | • | • | • | • | • | • | • | • | • | • | • | ||
| 15.88 (5/8in) | • | • | • | • | • | • | • | • | • | • | • | • | ||
| 16.00 | • | • | • | • | • | • | • | • | • | • | ||||
| 19.05 (3/4in) | • | • | • | • | • | • | • | • | ||||||
| 28.57 (11 /8in) | • | • | • | • | • | • |
Remark: Sizes with mark "O" indicate those are common sizes which the company is making, Any unusual sizes with special requirement can be tailor-made against order
Copper Nickel tube C70600 ASTM B111
The seamless copper nickel pipe/tube C70600 which is widely used for Evaporator,Heat Exchanger,Condenser,Distiller.
under standard ASTM B111, we can provide alloy tube C71500, C70600, C71640, etc.
Copper Nickel tubes, 10% – C70600 - exhibits excellent resistance to impingement attack. It is also highly resistant to SCC. This alloy is suitable for Marine condenser tube installations in place of Aluminum Brass, especially where higher water velocities are encountered.
| UNS No. | C70600 – BSI No. CN102 – ISO Name CuNi10Fe1Mn |
| Chemical Comp. (%) | Cu rem / Ni 9 ~ 11 / Pb 0.05 / Fe 1 ~ 1.8 / Zn 1 max / Mg 1 max |
| ASTM Spec. | B 111, B 395, B 466, B 552 |
| ASME Spec. | SB 111, SB 395, SB 466 |
| Applications | Condenser, Evaporator and Heat Exchanger tubes; Distiller tubing; Salt Water piping. |
| Temper | O61 Annealed / H55 Light-Drawn |
| Properties * | |
| Density | 0.323 lb/in³ |
| Tensile Strength min.- O61 -/- H55 | 40 ksi -/- 45 ksi |
| Yield Strength min.- O61 -/- H55 | 15 ksi -/- 35 ksi |
| CTE, linear | 9.5 10-6/°F @ 70.0 – 570 °F |
| Specific Heat Capacity | 0.09 BTU/lb-°F @ 70ºF |
| Thermal Conductivity | 26 BTU/ft2/ft/h/°F @ 70.0 °F |
| Melting Point |
2010 – 2100 °F |
Nickel copper alloy Monel 400 seamless tube / pipe
Product Description
Monel 400
400 is copper nickel alloy,has good corrosion resistance. In salty water or seawater has excellent resistance to pitting corrosion, stress corrosion ability. Especially hydrofluoric acid resistance and resistance to the hydrochloric acid. Widely used in the chemical, oil, Marine industry.
It is widely used on many aspects,like valve and pump parts, electronic components, chemical processing equipment, gasoline and freshwater tanks, petroleum processing equipment, propeller shafts, marine fixtures and fasteners,boiler feedwater heaters and other heat exchangers.
Other product series :
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.
Incoloy alloy: Incoloy 800,800H,800HT,825,925.
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.
Monel Alloy: Monel 400,K500.
A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
Monel 400 International brand:
| USA | GE | UK | FR | |
| UNS | SEW VDIUV | BS | AFNOR | |
| Monel 400 | N04400 | W.Nr.2.4360 NiCu30Fe | NA 12 | Nu 30 |
Chemical Composition:
| Grade | Ni% | Cu% | Fe% | Mn% | C% | Si% | S% |
| Monel 400 | Min 63 | 28-34 | Max 2.5 | Max 2.0 | Max 0.3 | Max 0.5 | Max 0.024 |
Physical Properties:
| Grade | Density | Melting Point |
| Monel 400 | 8.83 g/cm3 | 1300°C-1390°C |
Mechanical Properties:
| Alloy | Tensile Strength (Rm N/mm2) | Yield strength (RP0.2N/mm2) | Elongation (A5 %) | HB |
| Monel400 | 480 | 170 | 35 | ≥331 |
Production Standard:
| Bar | Forging | Pipe | Sheet/Strip | Welding Wire | |
| Standard | ASTM B164 | ASTM B564 | ASTM B165 | ASTM B127 | ERNiCu-7ERNiCu-7 |
Wire: 0.01-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm
Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
