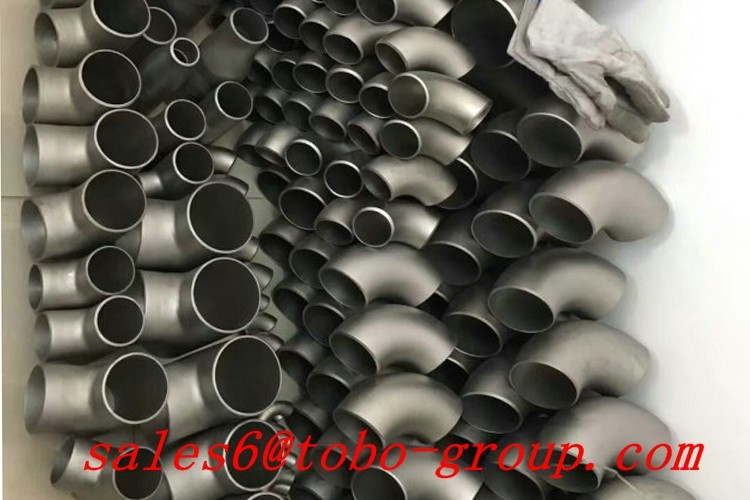

S30815 Stainless Steel Elbow WN flange ASTM B16.9 Class150 - Class 2500

China S30815 Stainless Steel Elbow WN flange ASTM B16.9 Class150 - Class 2500 supplier
S30815 Stainless Steel Elbow WN flange ASTM B16.9 Class150 - Class 2500 supplier S30815 Stainless Steel Elbow WN flange ASTM B16.9 Class150 - Class 2500 supplier S30815 Stainless Steel Elbow WN flange ASTM B16.9 Class150 - Class 2500 supplier S30815 Stainless Steel Elbow WN flange ASTM B16.9 Class150 - Class 2500 supplier

Large Image :  S30815 Stainless Steel Elbow WN flange ASTM B16.9 Class150 - Class 2500

Product Details:

Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Elbow

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: 1USD
Packaging Details: Packing by wooden case
Delivery Time: 10-35days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,0000pcs per month
Contact Now
Detailed Product Description
Size: 1/2-48 Inch Material Grrade: S30815 Elbow
Type: Seamless Or Weld Standard: DIN,EN,ASTM,BS,JIS,GB,etc.
DN: 15-1200 Colour: Silver

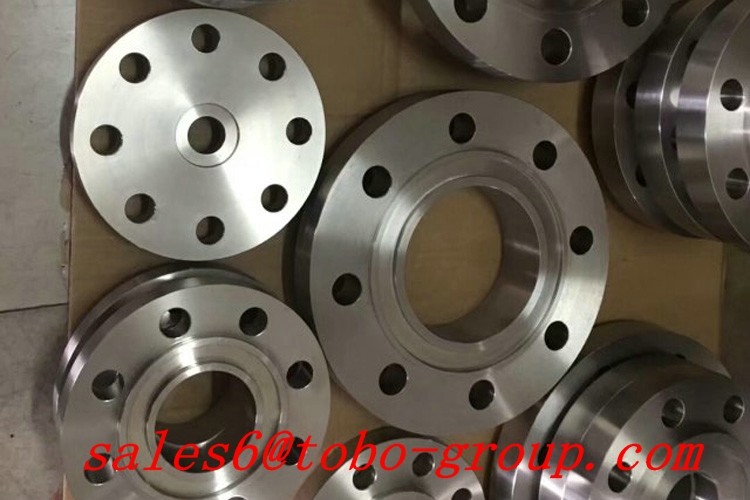

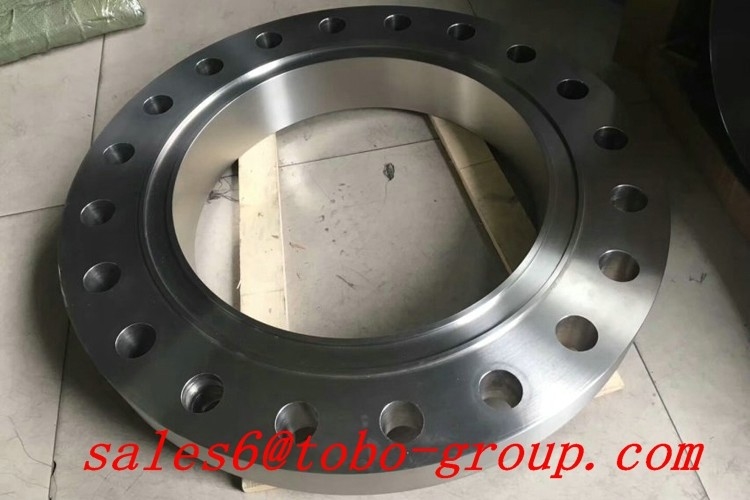

S30815 stainless steel WN flange ASTM B16.9 Class150 -Class2500

1.S30815 flange
2.sch5s-schxxs
3.ISO9001,ISO9000
4.Market:America,Africa,Middle East,Southeast of Asia

ASTM A312 UNS S30815 (253MA)  flange

Product Name ASTM A312 UNS S30815 (253MA) flange
Standard ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Type 1.4835 (UNS S30815 – 253MA – SS2368)
Materials

Stainless steel:ASTM/ASMES/A182 F304 | F304L |F304H | F316 | F316L | F321 | F321H | F347|316Ti | 309S |310S | 405 |409|410 | 410S | 416 | 420 | 430 | 630 | 660 | 254SMO | 253MA | 353MA

Nickel Alloy: ASTM/ASME S/B366 UNS N08020 | N04400| N06600 | N06625 | N08800 | N08810 | N08825 | N10276 | N10665 | N10675 | Incoloy 800 | Incoloy 800H | Incoloy 800HT | Incoloy 825 | Incoloy 901 | Incoloy 925 | Incoloy 926, Inconel 600 | Inconel 601 | Inconel 625 | Inconel 706 | Inconel 718 | Inconel X-750, Monel 400 | Monel 401 | Monel R 405 | Monel K 500
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L S32750 | S32760

Hastelloy:HastelloyB | HastelloyB-2 | HastelloyB-3 | HastelloyC-4 | Hastelloy C-22 | Hastelloy C-276 | Hastelloy X |Hastelloy G | Hastelloy G3
Nimonic: Nimonic 75 | Nimonic 80A | Nimonic 90
Duplex Steel: ASTM A182 F51 | F53 | F55, S32101 | S32205 | S31803 | S32304
Alloy Steel: ASTM/ASME S/ A182 F11 | F12 | F22 | F5 | F9 | F91

Carbon steel: API 5L...

Marking Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement
Test Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment
Certificates API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.
Applications

Ø EN 1.4835 has a good weldability and can be welded using the following methods:

  1. Shielded metal arc welding (SMAW)



  1. Gas tungsten arc welding, GTAW (TIG)



  1. Plasma arc welding (PAW)



  1. Gas metal arc GMAW (MIG)



  1. Submerged-arc welding (SAW)
  • Typical application areas for 1.4835:
  1. Ovens
  2. Construction
  3. Building
  4. As details at high temperature
Advantages







Material Description



1.4835 (UNS S30815 – 253MA – SS2368)

253MA Stainless Steel is Rare Earth Metals (REM) and lean austenitic heat resistant alloy with high strength and outstanding oxidation resistance. 253 MA maintains its heat resistant properties by advanced control of micro alloy additions. The use of rare earth metals in combination with silicon gives superior oxidation resistance up to 2000°F. Nitrogen, carbon and a dispersion of rare earth and alkali metal oxides combine to provide creep rupture strength comparable to the nickel base alloys. A wide variety of components requiring high strength at elevated temperature such as heat exchanger, kilns, stack dampers and oven components are common applications for 253 MA.



253MA is a grade combining excellent service properties at high temperature with ease of fabrication. It resists oxidation at temperatures up to 1150°C and can provide superior service to Grade 310 in carbon, nitrogen and sulphur containing atmospheres. Another proprietary designation covering this grade is 2111HTR.



253MA contains fairly low nickel content, which gives it some advantage in reducing sulphide atmospheres when compared to high nickel alloys and to Grade 310. The inclusion of high silicon, nitrogen and cerium contents gives the steel good oxide stability, high elevated temperature strength and excellent resistance to sigma phase precipitation.

The austenitic structure gives this grade excellent toughness, even down to cryogenic temperatures. These properties are specified for flat rolled product (stainless steel plate, sheet and coil) as Grade S30815 in ASTM A240/A240M. Similar but not necessarily identical properties are specified for other products such as pipe and bar in their respective specifications.



Function

By using 1.4835 (UNS S30815 – 253MA – SS2368) you get a Stainless High Temperature Steel designed to be used at temperatures over 550°C. It has a good resistance to oxidation and suits to be used as details in ovens, construction and buildings.



The steel grade 1.4835 ( also called UNS S30815, 253MA and SS2368) is an austenitic stainless high temperature steel with good resistance to oxidation. The steel has been designed to be used at temperatures over 550°C, the most suitable temperature range is 850-1100°C. The steel suits for production of details with good resistance to temperature corrosion and relatively high strength at elevated temperatures. It also has good creep strength properties. 1.4835 is not magnetic but can be slightly magnetic after cold working or welding.



Good formability and weldability
1.4835 has a good weldability and can be welded with shielded metal arc welding, gas tungsten arc welding, plasma arc welding and submerged-arc welding. You shall use low heat input and use filler metals of type EN 1.4835 when you weld. The steel can be both cold and hot formed but it can only be hardened by cold working. The steel has high hardness and at machining you need to follow cutting recommendations.

Chemical Composition ranges for 253MA grade stainless steel

Grade C Mn Si P S Cr Ni N Ce
253MA min. max. 0.05 0.10 - 0.80 1.10 2.00 - 0.040 - 0.030 20.0 22.0 10.0 12.0 0.14 0.20 0.03 0.08




Mechanical properties of 253MA grade stainless steel

Grade Tensile Strength
(MPa) min
Yield Strength
0.2% Proof (MPa) min
Elongation (% in 50mm) min Hardness
Rockwell B
(HR B) max
Brinell (HB) max
253MA 600 310 40 95 217



Physical properties of 253MA grade stainless steel

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (mm/m/°C) Thermal Conductivity (W/m.K) Specific Heat
0-100°C (J/kg.K)
Electrical Resistivity (nW.m)
0-100°C 0-600°C 0-1000°C at 20°C at 1000°C
253MA 7800 200 17.0 18.5 19.5 15.0 29.0 500 850











Grade specifications Comparison for 253MA grade stainless steel

Grade

UNS No

Old British

Euronorm

Swedish SS

Japanese JIS

BS

En

No

Name

253MA S30815 - - 1.4835 X9CrNiSiNCe21-11-2 2368 -
These comparisons are approximate only. The list is intended as a comparison of functionally similar materials not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.



Possible alternative grades to 253MA grade stainless steel

Grade Why it might be chosen instead of 253MA
310 Carburising atmospheres require a higher nickel content
304H Lower cost alternative, provided the operating temperature is below about 800°C
Nickel Alloys Carburising atmospheres or temperatures above the 1100 - 1150°C maximum of 253MA.



FAQ

Q: Are you trading company or manufacturer ?
A: We are manufacturer ,You can see the Alibaba certification.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but need pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.


If you have another question, pls feel free to contact us as below:

Att:
Tel: 0086 21 31261985
WhatsApp & Wechat: 0086-
Skype:

Trade Manager:









Unit : inch
Nominal
Pipe
Size
Outside Dia.
(OD)
Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A Tees Center To Ends C.M Cap Length
E
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625   1.00 1.00
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438   1.13 1.00
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00 1.50 1.50
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25 1.88 1.50
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50 2.25 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00 2.50 1.50
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50 3.00 2.00
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00 3.38 2.50
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00 4.13 3.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00 4.88 3.50
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00 5.63 4.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00 7.00 5.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00 8.50 6.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00 10.00 7.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00 11.00 7.50
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00 12.00 8.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00 13.50 9.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00 15.00 10.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00 17.00 12.00





Unit : inch
Nominal
Pipe
Size
Outside Dia.
(OD)
Wall Thickness (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00
