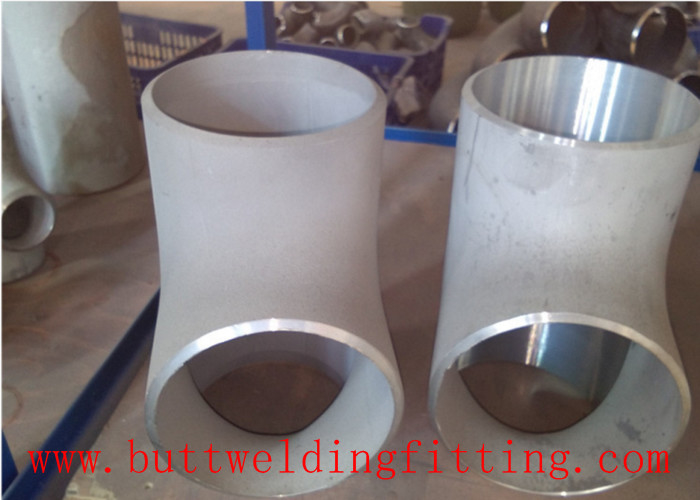

Butt Weld Stainless Steel Reducing Tee Tube Fittings 304 Sch40 1 Inch Size

China Butt Weld Stainless Steel Reducing Tee Tube Fittings 304 Sch40 1 Inch Size supplier

Large Image :  Butt Weld Stainless Steel Reducing Tee Tube Fittings 304 Sch40 1 Inch Size

Product Details:

Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: TOBO-Elbow

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: PLY-WOODEN CASE OR PALLET
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Size: 1-48 Inch Material: ASTM A182
Thickness: Sch5-Sch160,XS,XXS Standard: ASME B16.9
Type: Seamless Or Weld DN: 15-1500



Butt Weld Stainless Steel Reducing Tee Tube Fittings 304 Sch40 1 Inch Size




Specification:



Product name: Equal Tee

Material: Nickel Alloy Steel

Standard: ASME B16.9

Certificates: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED



Technical Drawing & Size Specification

Butt Weld Stainless Steel Reducing Tee Tube Fittings 304 Sch40 1 Inch Size

Base on excellente quality, satisfactory service and reasonable prcie, yaang's products have exported to USA, Russia, Korea, Brazil, Chile, Peru and MId East, etc.
Super Duplex 2507 (F53 / 1.4410 / UNS S32750) has excellent corrosion resistance to a wide variety of media, with outstanding resistance to pitting and crevice corrosion in seawater and other chloride containing environments, with Critical Pitting Temperature exceeding 50°C.UNS S32750 (F53 / 1.4410 / Alloy 2507) exhibits a low coefficient of thermal expansion and higher heat conductivity than austenitic steels and is suitable for working temperatures up to 300°C.

Grade Chemistry (Typical Values) Mechanicals
Specification Cr Ni Mo Cu N W Si Mn P
max
S
max
C
max
Fe UTS
N/mm²
(min)
0.20%
Proof
(min)
Elong
% (min)

Hard

ness
HB (max)

PR

EN

2507 25.0 7.0 3.8 0.75 0.25 0.28 0.80 1.20 0.035 0.020 0.030 Bal 750 500-550 25 270 41



Tee Type Stainless steel tee, Pipe tee , Equal tee ,reducer tee.
Size 1/2’’~48’’(Seamless);16’’~72’’(Welded)
Wall thickness Sch5~Sch160XXS
Manufacture Standard: ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606 ,DIN2615,DIN2616 ,BG12459-90,GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
Material Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel
Carbon steel ASTM A234 WPB, WPC;
Stainless steel

304/SUS304/UNS S30400/1.4301

304L/UNS S30403/1.4306;

304H/UNS S30409/1.4948;

309S/UNS S30908/1.4833

309H/UNS S30909;

310S/UNS S31008/1.4845;

310H/UNS S31009;

316/UNS S31600/1.4401;

316Ti/UNS S31635/1.4571;

316H/UNS S31609/1.4436;

316L/UNS S31603/1.4404;

316LN/UNS S31653;

317/UNS S31700;

317L/UNS S31703/1.4438;

321/UNS S32100/1.4541;

321H/UNS S32109;

347/UNS S34700/1.4550;

347H/UNS S34709/1.4912;

348/UNS S34800;

Alloy steel

ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91;

ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65;

ASTM A420 WPL3/WPL6/WPL9;

Duplex steel
WP27 CR27 UNSS44627 WP33 CR33
CR429 UNS S42900 WP430 CR430 UNS S43000
UNS S43036 WP446 CR446 UNS S44600 WPS31803
WPS32101 CRS32101 UNS S32101 WPS32202 CRS32202
CRS32750 UNS S32750 WPS32950 CRS32950 UNS S32950
UNS S32760 WPS39274 CRS39724 UNS S32974 WPS32550
WPS32205 CRS32205 UNS S32205 WP410 CR410
UNS S41008 WPS41500 CRS41500 UNS S41500 CRS31803
UNS N44626 WP429 WP430TI CR430TI UNS S31803
UNS S32202 WPS32750 WPS32760 CRS32760 CRS32550
UNS S32550 WPS41008 CRS41008



Nickel alloy steel

Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;

Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;

Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;

Alloy K-500/Monel K-500/NO5500/2.475;

Alloy 600/Inconel 600/NO6600/NS333/2.4816;

Alloy 601/Inconel 601/NO6001/2.4851;

Alloy 625/Inconel 625/NO6625/NS336/2.4856;

Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;

Alloy 800/Incoloy 800/NO8800/1.4876;

Alloy 800H/Incoloy 800H/NO8810/1.4958;

Alloy 800HT/Incoloy 800HT/NO8811/1.4959;

Alloy 825/Incoloy 825/NO8825/2.4858/NS142;

Alloy 925/Incoloy 925/NO9925;

Hastelloy C/Alloy C/NO6003/2.4869/NS333;

Alloy C-276/Hastelloy C-276/N10276/2.4819;

Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;

Alloy C-22/Hastelloy C-22/NO6022/2.4602;

Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;

Alloy B/Hastelloy B/NS321/N10001;

Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;

Alloy B-3/Hastelloy B-3/N10675/2.4600;

Alloy X/Hastelloy X/NO6002/2.4665;

Alloy G-30/Hastelloy G-30/NO6030/2.4603;

Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;

Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;

Alloy 31/NO8031/1.4562;

Alloy 901/NO9901/1.4898;

Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;

Inconel 783/UNS R30783;

NAS 254NM/NO8367;

Monel 30C

Nimonic 80A/Nickel Alloy 80a/UNS N07080/NA20/2.4631/2.4952

Nimonic 263/NO7263

Nimonic 90/UNS NO7090;

Incoloy 907/GH907;

Nitronic 60/Alloy 218/UNS S21800

Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FOB Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.
Welcome to contact us.



What is a equal tee
A equal tee is the most common pipe fitting. It is used to either combine or split a fluid flow. It is a type of pipe fitting which is T-shaped having two outlets, at 90° to the connection to the main line. It is a short piece of pipe with a lateral outlet. A tee is used for connecting pipes of different diameters or for changing the direction of pipe runs. They are made of various materials and available in various sizes and finishes. They are extensively used in pipeline networks to transport two-phase fluid mixtures.
When we call a steel tee “equal tee”, means the branch diameter of this tee is same with the main pipe (Run pipe) diameter of this tee. When we see only one size of tee in its description, it means this tee is the equal tee. for example, 8″ Tee mean the tee main pipe and branch pipe both are 8 inches. Sometimes the equal tee also described 8″X8″ which is the same meaning of 8″ tee.
APPLICATIONS:
1. Pipe and Tubes for petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry
Other Features:
1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant
2) We also produce pipes with special specifications according to customers’ requirements;
