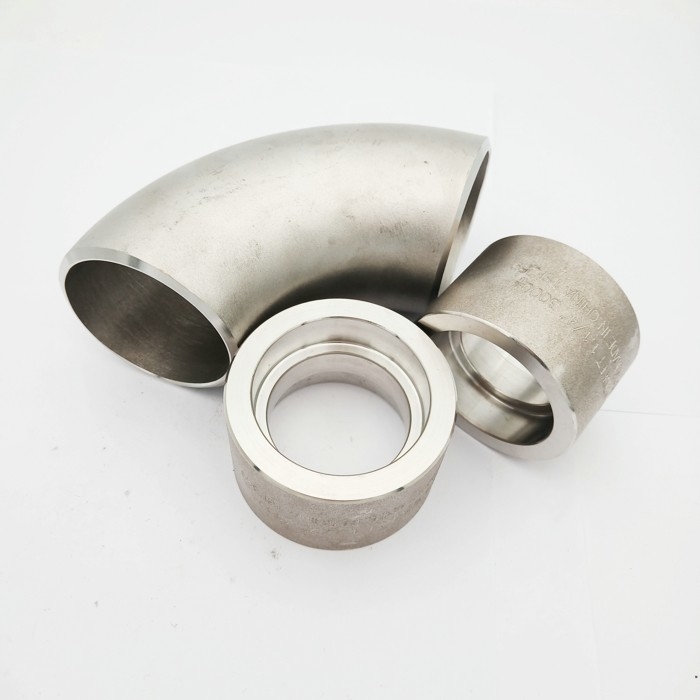

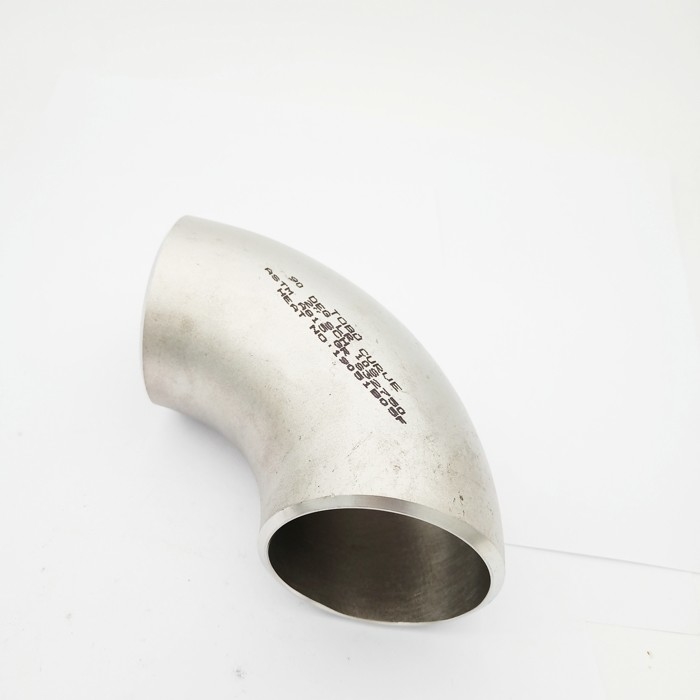

Super Duplex Stainless Steel Butt Weld Pipe Fittings LR Steel Elbow SCH 40

  • Super Duplex Stainless Steel Butt Weld Pipe Fittings LR Steel Elbow SCH 40
  • Super Duplex Stainless Steel Butt Weld Pipe Fittings LR Steel Elbow SCH 40
Place of Origin China
Brand Name TOBO
Certification ISO/PED/TUV/SGS/LR/BV
Model Number UNS S31803
Minimum Order Quantity 500Kg
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time According to the qty
Payment Terms T/T, L/C, Western Union,
Supply Ability 6000TONS/MONTH
Product Details
Standard JIS, ASTM, DIN, EN, ASTM/ASME Color White Silver Gold
Types Seamless Outer Diameter 6mm-88.9mm
Size 1-48 Inch Product Type Pipe
Wall Thickness SCH 40 Stock In Stock
Highlight

Stainless Steel 90 Degree Elbow

,

Pipe Fittings Elbow
Leave a Message
Product Description

Butt Weld Pipe Fitting UNS S31803 3'' 90Deg LR Steel Elbow Super Duplex Stainless Steel SCH 40

Specifications

316l stainless steel pipe and tube
1.High quality and competitive price
2.Fast delivery
3.Standard package for shipment



Tips:We are the specialized manufacturer of seamless stainless steel tube ,if you need to buy seamless stainless steel tube ,TOBOGROUP steel is your best choice.





Product

Butt Weld Pipe Fitting UNS S31803 3'' 90Deg LR Steel Elbow Super Duplex Stainless Steel SCH 40
Material 300 series steel
Standard ASTM/ASME A/SA269, A/SA213,A/SA312,  DIN  JIS
OD from 6mm to 88.9mm
WT from 0.7mm to 7mm
Delivery 30 working days
Package standard package for shipment
Polished both ID and OD can be polished from 180# to 600#





We TOBO GROUP offer an extensive range of Seamless Pipes to our clients. We also deal with super duplex pipes. Our stainless steel seamless pipe was width used in Mining, Energy, Petrochemical, Chemical Industry, Food plant, Paper plant, Gas and Fluid Industry etc



Stainless Steel Pipe:


1. Material: S31803/S31500/S32750 ETC
2. O.D: 6mm-710mm , Thickness:2.5-50mm

3. A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the Thpe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.

4. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8” TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.

5. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the lenss than the permitted in Section 9 of Specification A999/A999M

6. Butt Weld End:  According to ANSI B 16.25
7. Pipe Marking: Specified in A999/999M, include “Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T”

8. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.

9. Packing Mark:  SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.

10. MTC:  BWSS Official Original MTC paper will be supplied for each order.



We can dealing with a wide range material as following:



Material Grade:



American Standard

Austenitic Steel:

TP304,TP304L,TP304H, TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H,  TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…

Duplex Steel :

S32101,S32205,S31803,S32304,S32750, S32760

Others:TP405,TP409, TP410, TP430, TP439,...

Europen Standard

1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571,1.4438, 1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501

Russia Standard

08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б,10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т,12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, 06ХН28МДТ

TOBO GROUP:


Make development by enlarging scale brand building and internationalization.
Keep Challenging and Innovation.
Advance manufacturing instruments.
Create perfect quality.
Take strict testing as guarantee, upgrade grade as object.
EXHIBITION AND CUSTORMER SATISFACTORY

Chemical Composition(%)



Alloy

2304

UNS Designation

S32304

Carbon (C) max.

0.030

Manganese (Mn) max.

2.50

Phosphorus (P) max.

0.040

Sulfur (S) max.

0.030

Silicon (Si) max.

1.00

Chromium (Cr)

21.5 - 24.5

Nickel (Ni)

3.0 - 5.5

Molybdenum (Mo)

0.05 - 0.60

Nitrogen (N)

0.05 - 0.20

Copper (Cu)

0.05 - 0.60

Iron (Fe)

Balance



Inspection & Test
1.100% PMI, Spectro Chemical Analysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test Flattening Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test  (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test  (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.



Super Duplex Stainless Steel Butt Weld Pipe Fittings LR Steel Elbow SCH 40





FAQ

Q:Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
