Standard Forged Steel Nippo Flange 150LB Pressure ASTM A182 F51 Grade

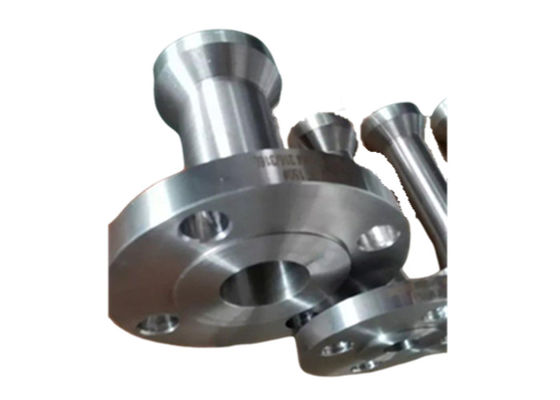

  • Standard Forged Steel Nippo Flange 150LB Pressure ASTM A182 F51 Grade

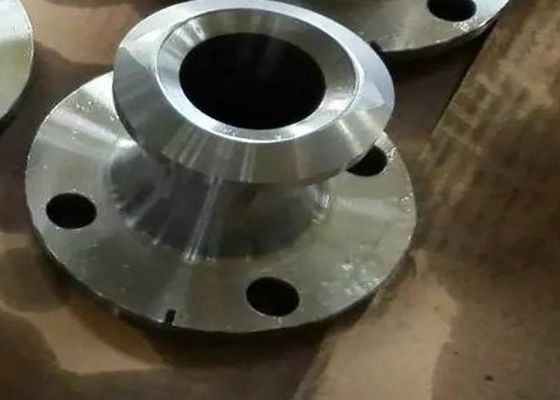

  • Standard Forged Steel Nippo Flange 150LB Pressure ASTM A182 F51 Grade
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM A182 F51
Minimum Order Quantity 1PC
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 working days
Supply Ability 100000PC/MONTH
Product Details
Product Name Nipo Flanges Type Forged Flange
Pressure 150LB Grade ASTM A182 F51
Standard Or Nonstandard Standard Size 3/4'' X 1/2''
Standard ASME/ANSI B16.5 Delivery Time 15 Working Days
Highlight

forgings flanges and fittings

,

butt weld flanges
Leave a Message
Product Description

Standard Forged Flange Steel Nipo Flanges 3/4'' x 1/2'' 150LB STD ASTM A182 F51





Product Description


All our products come in a variety of classes and material grade for any application.

This catalogue is specific for flanged outlets.

Flanged outlets are available with nominal diameter from 1/2" up to 12", rating from class

150# to 2500#, RF or RTJ. Schedules available are 10S, STD, XS, 160 and XXS, all

according to Shell Standard Drawing S38.090-C and can be installed on header pipes

from DN 3/4" up to 36".





Product Name

Carbon steel / Stainless steel / Alloy Flanges

Standard

ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Type

WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer)
Special Flange: According to the drawing Picture

Materials

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L
Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91
Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

Dimension

(150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300

Marking

Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

Test

Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment

Brand

TOBO

Certificates

API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.

Advantages

1. Abundant stock and prompt delivery
2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.
4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.)



Why Choosing Metal Industrial:

  • Sufficient Forging, Heating, Machining Equipment

  • In-house Inspection Instruments for Quality Controlling

  • Competitive Price & High Quality Assurance

  • Fast, Effective and Efficient Services

  • Directly supplier of Metallurgical Equipment

  • Experienced Professinonals on Communications

Our Company



1.We are one of the Professional manufacturers Exporter Pipeline products in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.

2.We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Now, it owns a number of advanced pipe production equipments, metal, forging, machining, cold forming, hot extrusion, such as heat treatment process, producing 60, 000 tons of pipe fittings. Company with a variety of detection devices, such as nondestructive testing, chemical analysis, metallographic examination, physical experiments. The technical is very strength, our main products contain fittingsforged socket welding fittings and threaded fittings, pipe weld and the materials of the products contain stainless steel ,duplex-stainless steel alloy steel.

3.In addition, we are authorized by more than 120 top-class mills from South Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL, TISCO,LISCO,.TPCO,HENGYANG VALIN and so on.

Packing&Delivery

  • Packing Details :In wooden case, pallets or as per customers’ requirement

  • Delivery Details : 7-15 days after the PO
