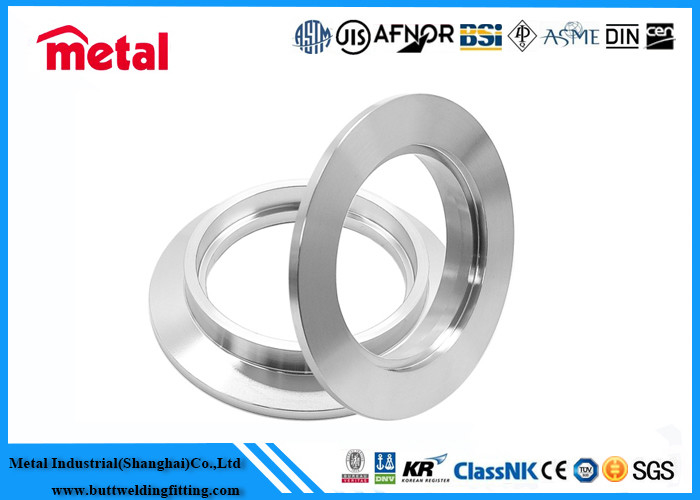

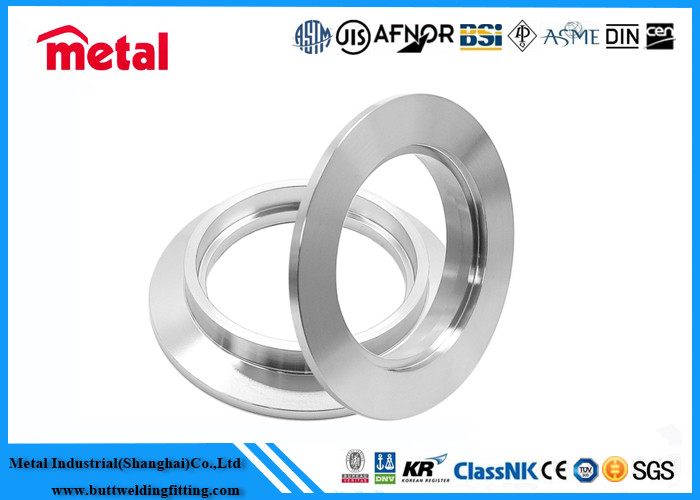

Monel K500 Nickel Alloy Fittings Fatigue Resistence Flange ANSI Standard
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Monel K500 |
| Minimum Order Quantity | 1pcs |
| Packaging Details | PLY-WOODEN CASE OR PALLET |
| Delivery Time | 10-100 working days depending on quantity |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 3,0000pcs per month |
Product Details
| Material | Nickel Alloy | Shape | Normal |
|---|---|---|---|

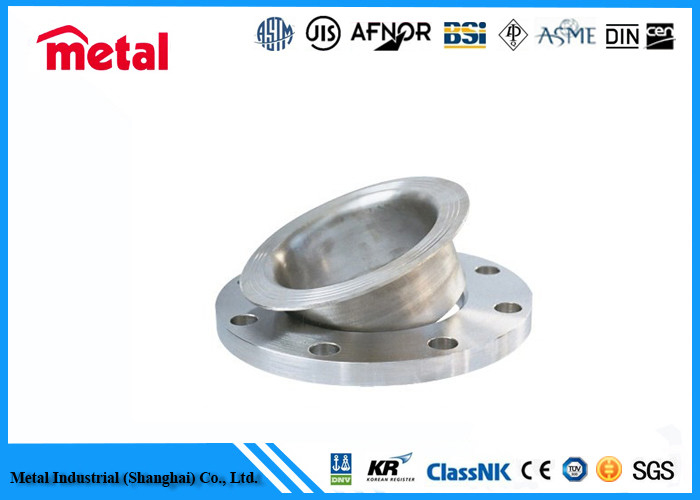

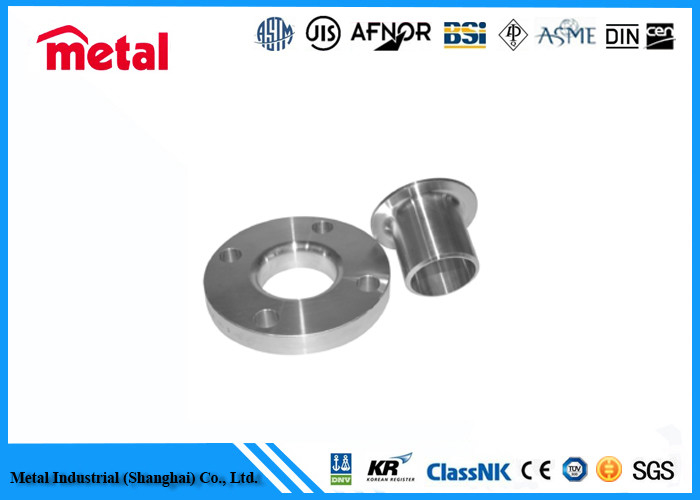

| Connection | Forged | Type | Lap Joint Flange |
| Size | 4" | Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Ect |
| Product Name | Lap Joint Flange | Standard | ANSI |
| Packing | Usually Wooden Case, Carton Or Your Requirements. | Color | Sliver Or Your Required |
| Highlight | butt welded pipe fittings,butt weld tube fittings |
||
Product Description
| flangeType |
Steel Flange, Inconel Alloy Steel Flange, ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718 |
| Standard | ASME/ANSI B16.5 |
| Size | 1/2’’~60’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material |
Inconel Alloy Steel Flange |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
|
Nickel Alloys Flanges
|
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Copper Alloys Flange
|
ASTM AB564 , NO6600/ Alloy 600, NO6625/ Alloy 625, Alloy 690, Alloy 718
|
| Inconel Alloy Steel Flange |
ASTM AB564 ,NO8800/ Alloy800, NO8810/ Alloy 800H, NO8811/Alloy 800HT
|
| Manufacture Standard | ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Quality & Inspection:
1. PMI test to verify material grade.
2. Dimension controlling during fabricating and finished.
3. All of the products have been 100% press tested before shipping.
4. Packed in Fumigation-free plywood box.
5. Third party inspection available.
6.Trade Assurance :You can pay to alibaba directly.If the goods does not meet your requirement or late shipment,Alibaba will pay you money.So you are very e in whole process.
Advantages:
1. Abundant stock and prompt delivery
2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.
4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.) 5. The product can according to the customers'drawing Picture
6.Smooth and streamline outside shape
7.Long term Anti-corrosion properties
8.Precise tolerances
9.Long life cost saving
