Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD

Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD
Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD
Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD
Basic Information
Place of Origin: China/Japan/Germany
Brand Name: TOBO/TPCO/TISCO/VALIN/METAL
Certification: ISO/PED/TUV/SGS/LR/BV
Model Number: Hastelloy C-22 UNS N06022
Minimum Order Quantity: 300 Kilogram/Kilograms
Packaging Details: Export standards or customer requirements
Delivery Time: 7-30 working days after received deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 Metric Ton/Metric Tons per Month
Get Best Price Contact Now
Product Name: ELBOW Product Type: Steel Pipe
Grade: 200 Series &300 Series &400 Series Shape: Round
OD: 168.3 - 3048 Mm Surface: Painted
Application: Oil Pipe Techinque: Cold Drawn
Highlight:

marine stainless steel tubing

,

seamless stainless steel tube

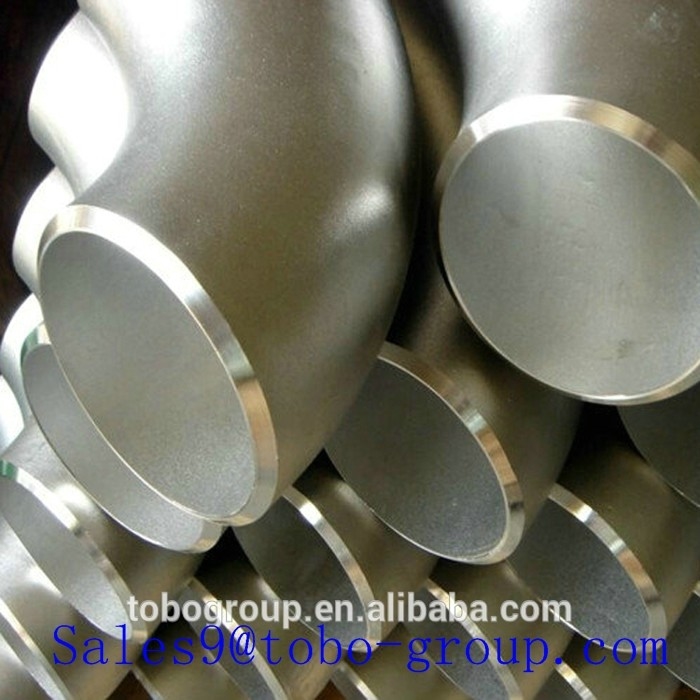

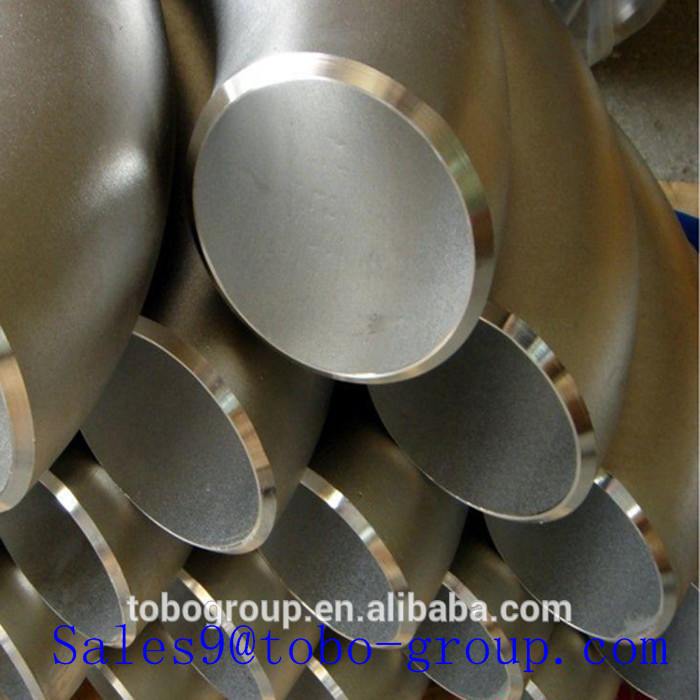

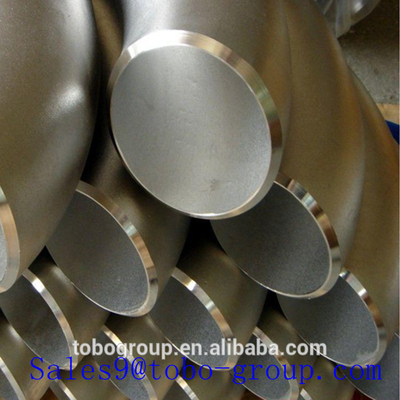

Pipe Fittings Hastelloy C-22 UNS N06022 NACE MR0175 1'' ELBOW LR 90 DEG



Fabrication of Hastelloy C-22

Although ductile enough to be formed by cold working, intermediate annealing may be necessary due to work hardening. Forging should be performed between 1750-2050° F followed by rapid cooling. Annealing can be performed at a temperature range between 2020-2150° F followed by a rapid quench. Cooling at an accelerated rate avoids the formation of detrimental phases which form between 1400-1800° F. Welding can be done by gas tungsten-arc, gas metal-arc and shielded metal-arc processes.

ASTM Specifications

Pipe Smls Pipe Welded Tube Smls Tube Welded Sheet/Plate Bar Forging Fitting
B622 B619 B622 B626 B575 B574 B564 B366

Mechanical Properties

Typical Room Temperature Tensile Properties of Annealed Material

Product Form Tensile (ksi) .2% Yield (ksi) Elongation % Hardness (HRb)
Plate (.25”-1.75”) 112 53 62 89
Sheet (.038”-.15”) 122 63 54 93
Bar (.50”-5.50”) 115 55 60 89




Product Specification
Name pipe fitting elbow
Material stainless steel ASTM A240 304 304L 316L 321 321H 347 347H 904L ASTM A789 S31803 S32205 S32750
Carbon Steel ASTM A234 WPB A420 WPL3 WPL6 A516 GR70 GR65 GR60 GR55 ISO3183/API 5L L36/X52 L415/X60 L450/X65 L485/X70?
Alloy Steel ASTM A335 P11 P22 SA387 GR.11 GR.22
Titanium Gr1 Gr2 Gr3 Gr5 Gr7 Gr12
Copper/Brass We can also produce according to customer's requirements
Standard?? ASME B16.9, ANSI B16.9, ASTM , JISB2312,DIN,BS, GBT12459-05, GB13401-05,GOST
ASME B16.9-2007,MSS SP 43-1991,MSS SP-75,ASTM B363
Wall thickness

Sch5S, Sch10S, Sch40S, Sch80S

Sch10,Sch20,Sch30,STD,Sch40,Sch60,XS,Sch80,Sch100,Sch120,Sch140,Sch160,XXS,
Size 1/2"-96" ? DN15-DN2400
Type Butt welded or Seamless
Shape Equal or Reducing
Product

1.Elbow?L/R & S/R (45/90/180 DEG)

according to customer's requirement can produce the other's degree, such as 22.5 degree 30 degree 60 degree etc.
2. Tee(Straight and Reducing)
3. Reducer(Concentric and Eccentric)
4. Cross
5. Cap(Round and Elliptical)
6. Stub End
Quality Control Good quality control system which covers every process of the manufacturing-Raw material inspection,cutting,bending,sizing,shot blasting,beveling,coating,marking,packing,delivery;
Application Pipe fitting is the occupation of installing or repairing piping or tubing systems that convey liquid, gas, and occasionally solid materials. This work involves selecting and preparing pipe or tubing, joining it together by various means, and the location and repair of leaks.
Surface Black painting ; Pickling ; Sand blasting
Certificate ISO9001 ; ISO9001:2008

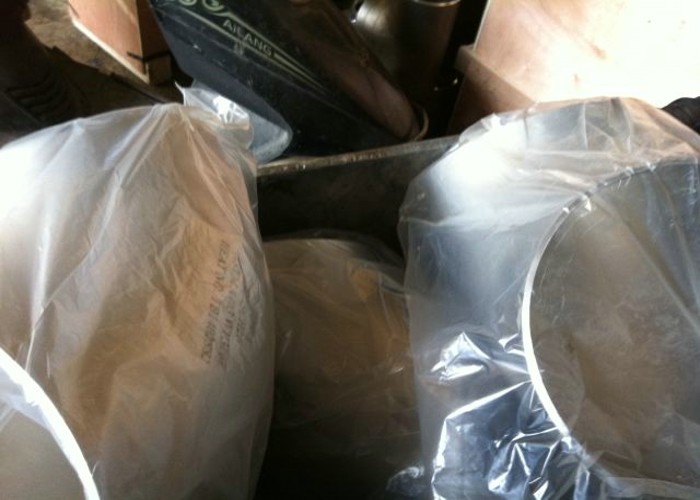

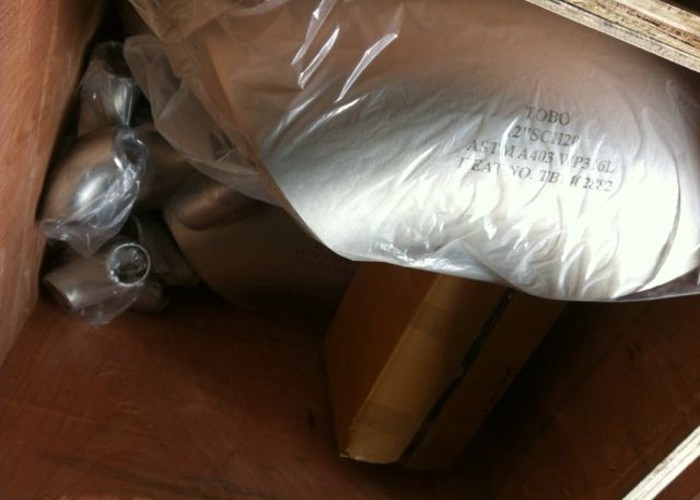

Package Wood case or Wooden pallets or according to the customer's requirements.
Features

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce pipes with special specifications according to customers' requirements;
Lead Time Within 30 days or according to the customer's requirements.
MOQ 1 Piece
OEM YES

Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD 0Painted Surface Stainless Steel Seamless Pipe Cold Drawn 168.3 - 3048mm OD 1
