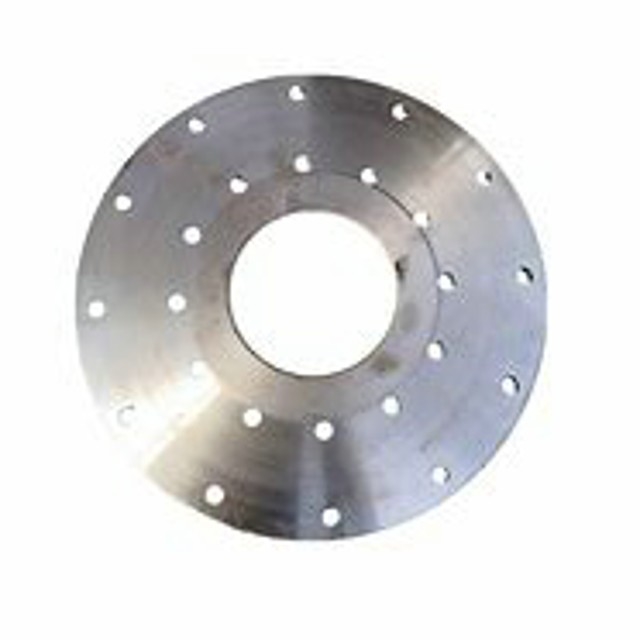

Stainless Forged Steel Flanges ASTM / ASME S/A182 F44 Simple Structure

  • Stainless Forged Steel Flanges ASTM / ASME S/A182 F44 Simple Structure
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number ASTM/ASME S/A182 F44
Minimum Order Quantity 1PC
Price Negotiation
Packaging Details In wooden case, pallets or as per customers’ requirement
Delivery Time 15 working days
Supply Ability 100000PC/MONTH
Product Details
Product Name SO Flange Type Stainless Steel Flange
Pressure 150# Grade ASTM/ASME S/A182 F44
Standard Or Nonstandard Standard Size 18''
Standard ASME/ANSI B16.5 Flange Face RF, FF
Highlight

forgings flanges and fittings

,

butt weld flanges
Leave a Message
Product Description

Stainless Steel Flange Slip-on Flange Weld SO Flange ASTM/ASME S/A182 F44 150#



ASTM/ASME S/A182 F44 Slip-on flange


Slip-on flange refers to a kind of flange connected with vessel or pipe by fillet weld. Belongs to arbitrary flange. According to the integral degree of connection between flange ring and straight pipe segment, check the integral flange or loose flange respectively. Flange ring with neck and without neck two kinds. Compared with neck butt welding flange, plain welding flange has simple structure and less material, but its rigidity and sealing property are not as good as neck butt welding flange. Flat welding flange is widely used in the connection of medium and low pressure vessels and pipelines.



Materials Carbon Steel: ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH and so on
P250GH, P280GHM 16MN, 20MN ,20#
Stainless Steel: ASTM A182, F304/304L, F316/316L and so on
Alloy Steel: A182 F11, A182F22, A182F12, A182 F5, A182F91, A182 F9 and so on
Types Slip On Plate Flange/Plate Flange , Slip On Hub Flange/Bossed
Welding Neck Flange/WN flange/ Loose Flange/Lapped Flange /Backing Flange
Blind Flange/Blank flange, Lap Joint Flange /LJ Flange
Socket Weld Flange/SW Flange/ Threaded Flange/Screwed Flange
Loose Flange/Lapped Flange Backing Flange RTJ /o-Ring
Custom Flange/Special Flange/ Hot/Cold/Electro Gavanized Flange
Standards ANSI/ASME/ASA B16.5 FLANGES, ANSI B16.47 A/B FLANGES
JIS B 2220 FLANGES, KS B 1503, DIN SERIES, UNI, EN1092-1, BS4504
BS 10 TABLE D/E/F FLANGES, SANS 1123 FLANGES/SABS 1123
GOST12820-80/GOST12821-80, NFE29203/NS/AS/ISO/AWWA FLANGES
Pressure &Ratings 150LBS, 300,600,900,1500,2500 ANSI, ASA B16.5
PN6 PN10 PN16 PN25 PN40 PN64-DIN/UNI
PN6 PN10 PN16 PN25 PN40 PN63-EN1092-1/BS4504
PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0-GOST12820-80
PN0.6Pa, PN1.0Pa, PN1.6. PN2.5,PN4.0, PN6.3. -GOST12821-80
600kPa, 1000.1600.2500.4000.-SANS 1123
5KG, 10KG, 16KG, 20KG, 30KG, 40KG-JIS B2220/KS B1503
TABLE D, TABLE E ,TABLE F-BS 10, AS2129
CLASS D, CLASS E, CALSS F, AWWA C207
Surface Treatment Rust Prevention , Black Paint Coating or Phosphating Treatment with Black Color
Varnish Paint Coating, Varnish Oil Coating,
Electro Galvanizing Coating (Cold Galvanizing, Color Golden or silvery white, Coating thickness 20~30mm)
Hot Dip Galvanizing Coating (Coating Thickness 200mm around)
Technical Forging
Application Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry
and general pipes connecting projects etc.
Inspection Quality Control System-Well Equipments and Machinery-Well Workers and Engineers
Packing Wooden Pallets or Wooden Cases or As Customers' Requirements
Payment Terms L/C Or 30 % Advance By T/T and The balance Will be Paid After the copy of B/L
Delivery Time 30 Days after the Advance or the L/C
After-Sales Service Orders and Products Tracking System

Our Company

We are one of the Professional manufacturers Exporter Pipeline products in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.

We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Now, it owns a number of advanced pipe production equipments, metal, forging, machining, cold forming, hot extrusion, such as heat treatment process, producing 60, 000 tons of pipe fittings. Company with a variety of detection devices, such as nondestructive testing, chemical analysis, metallographic examination, physical experiments. The technical is very strength, our main products contain fittingsforged socket welding fittings and threaded fittings, pipe weld and the materials of the products contain stainless steel ,duplex-stainless steel alloy steel.

In addition, we are authorized by more than 120 top-class mills from South Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL, TISCO,LISCO,.TPCO,HENGYANG VALIN and so on.



Why Choosing Metal Industrial:

  • Sufficient Forging, Heating, Machining Equipment

  • In-house Inspection Instruments for Quality Controlling

  • Competitive Price & High Quality Assurance

  • Fast, Effective and Efficient Services

  • Directly supplier of Metallurgical Equipment

  • Experienced Professinonals on Communications
