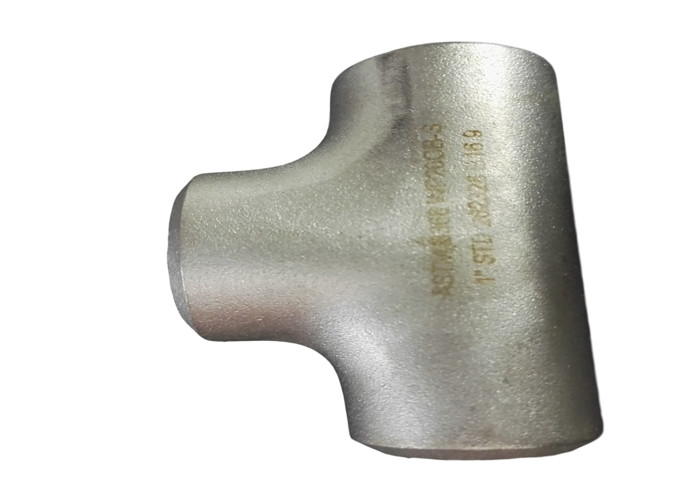

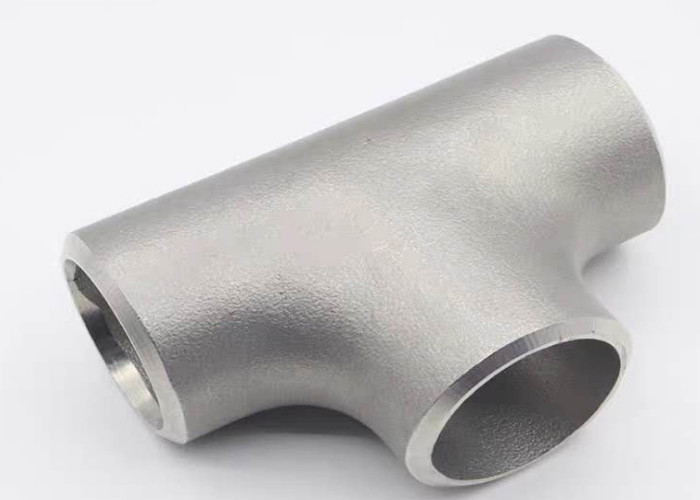

Pipe Tee ASTM B366 N10276 Nickel Alloy Equal Tee BW SCH40 Thickness

  • Pipe Tee ASTM B366 N10276 Nickel Alloy Equal Tee BW SCH40 Thickness
  • Pipe Tee ASTM B366 N10276 Nickel Alloy Equal Tee BW SCH40 Thickness
Place of Origin China
Brand Name TOBO
Certification ISO/PED/TUV/SGS/LR/BV
Model Number ASTM B366 N06600
Minimum Order Quantity 1 pcs
Price negotiable
Packaging Details Wooden case or as request
Delivery Time 7-15 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union,
Supply Ability 100000pcs per month
Product Details
Product Name Equal Tee Standard ASME/ANSI B16.9
Thickness SCH40 Material ASTM B366 N10276
DN DN100 Technics Seamless
Type Butt Weld Pipe Fittings Place Of Origin China
Highlight

butt welded pipe fittings

,

industrial pipe fittings

,

butt weld tube fittings
Leave a Message
Product Description

Nickel Alloy ASTM B366 N10276 Equal Tee Butt Weld Pipe Fittings

Specifications



Grades: ASTM B366 N10276

Standards: ASTM. ASME ANSI B16.9. B16.28. MSS-SP-43.

Specifications: ASTM B366 / ASME SB366

Size: 1/2'' NB TO 12'' NB IN

Schedule: Sch5 TO Sch XXS

Wall Thickness: From 2 to 40 mm

Type: Seamless / Welded / Fabricated



Product Name Equal / Reducing Tee,
Size 1/2’’~10’’(Seamless);12’’~72’’(Welded)
Thickness Sch5S~Sch160XXS
Manufacture Standard:

ASME B16.9,ASME B16.11,ASME B16.28 ,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN2606 ,DIN2615,DIN2616 ,BG12459-90,

GB/T13401,HGJ514 ,SH3408 ,SH3409, HG/T21635, HG/T21631,
Duplex steel

UNSS44627, UNS S42900, UNS S43000, UNS S43036, UNS S44600,

UNS S32101, UNS S32750, UNS S32950, UNS S32760, UNS S32974
UNS S32205, UNS S41008, UNS S41500, UNS N44626, UNS S31803
Nickel alloy steel Alloy 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;
Alloy K-500/Monel K-500/NO5500/2.475;
Alloy 600/Inconel 600/NO6600/NS333/2.4816;
Alloy 601/Inconel 601/NO6001/2.4851;
Alloy 625/Inconel 625/NO6625/NS336/2.4856;
Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;
Alloy 800/Incoloy 800/NO8800/1.4876;
Alloy 800H/Incoloy 800H/NO8810/1.4958;
Alloy 800HT/Incoloy 800HT/NO8811/1.4959;
Alloy 825/Incoloy 825/NO8825/2.4858/NS142;
Alloy 925/Incoloy 925/NO9925;
Hastelloy C/Alloy C/NO6003/2.4869/NS333;
Alloy C-276/Hastelloy C-276/N10276/2.4819;
Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;
Alloy C-22/Hastelloy C-22/NO6022/2.4602;
Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;
Alloy B/Hastelloy B/NS321/N10001;
Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;
Alloy B-3/Hastelloy B-3/N10675/2.4600;
Alloy X/Hastelloy X/NO6002/2.4665;
Alloy G-30/Hastelloy G-30/NO6030/2.4603;
Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;
Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;
Alloy 31/NO8031/1.4562;
Alloy 901/NO9901/1.4898;
Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Alloy 926;
Inconel 783/UNS R30783;
Package Wooden cases, pallets, nylon bags or according to the customers' requirements
MOQ 1pcs
Delivery time 10-100 days depending on quantity
Payment terms T/T or Western Union or LC
Shipment FCA Tianjin/Shanghai, CFR, CIF, etc
Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc
Remarks Other materials and drawings are available.



Chemical Properties



Grade C Si Mn P S Cr Mo Ni N
C276 0.01 0.08 1.0 0.04 0.03 14.5-16.5 15.0-17.0 Bal Bal



Mechanical Properties



Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.89 g/cm3 1370℃ (2550°F)

Psi-1.15.00.

MPa-790

 Psi-52.000. MPa-355 40%



Application



Our products are widely used in pipeline engineering of the industries of oil and gas (including petrochemical),

chemical and pharmaceutical, pulp and paper, fertilizer, desalination, nuclear, electric power, boiler,heat exchange,

metallurgy, refinery,machinery,steel fabrication,shipbuilding, water disposal, construction, aviation,textile, ect.



Other products



we can provide steel butt weld pipe fittings such as elbow, tee, reducer,cap,bend and so on. Good quality,

competitive price and excellence service are your best choice.



Pipe Tee ASTM B366 N10276 Nickel Alloy Equal Tee BW SCH40 Thickness
