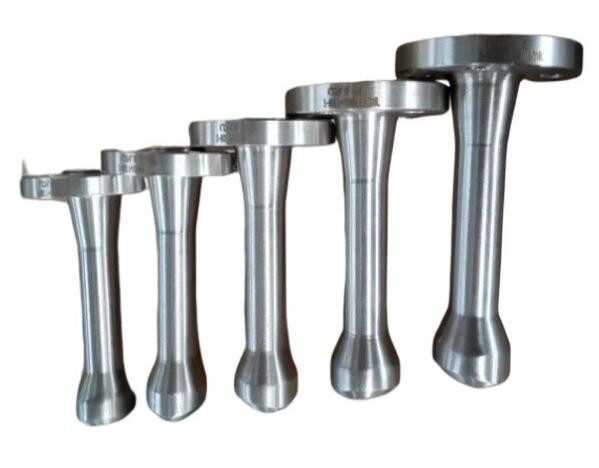

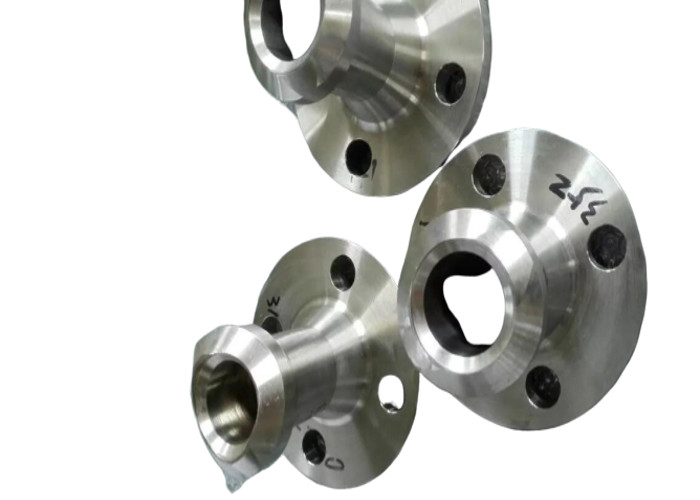

150# RF STD ANSI B16.5 Alloy 20 Forged Nipo Flanges

150# RF STD ANSI B16.5 Alloy 20 Forged Nipo Flanges
150# RF STD ANSI B16.5 Alloy 20 Forged Nipo Flanges 150# RF STD ANSI B16.5 Alloy 20 Forged Nipo Flanges 150# RF STD ANSI B16.5 Alloy 20 Forged Nipo Flanges 150# RF STD ANSI B16.5 Alloy 20 Forged Nipo Flanges 150# RF STD ANSI B16.5 Alloy 20 Forged Nipo Flanges 150# RF STD ANSI B16.5 Alloy 20 Forged Nipo Flanges
Basic Information
Place of Origin: China
Brand Name: TOBO
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: Alloy 20
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: In wooden case, pallets or as per customers’ requirement
Delivery Time: 15 working days
Supply Ability: 100000PC/MONTH
Get Best Price Contact Now
Product Name: Weldoflanges WT: STD
Pressure: 150# Grade: Alloy 20
Standard Or Nonstandard: Standard Size: 4'' X 2-1/2''
Standard: ASME/ANSI B16.5 Flange Face: RF
Highlight:

Alloy 20 Butt Weld Flanges

,

150# Butt Weld Flanges

,

ANSI B16.5 Forged Steel Flanges

ASME B16.48 Alloy 20 Forged Steel Weldoflanges 150# Nickel Alloy Steel



ASME/ANSI B16.5 RF Nipo-flange

A Nipoflange is used in the pipe industry like a weldolet or a nipolet for a 90° branch connection.
A Nipoflange is a combination of weldolet, nipolet and flange.
Two different pipe branch connections
On the run pipe side a nipoflange is designed like a weldolet. That means the branch connection
on the run pipe side is a welding connection.
On the other side there it has a flange connection. The flange connection can be designed according
to customers requirements (acc. To DIN or ANSI).



Product Name

Carbon steel / Stainless steel / Alloy Flanges

Standard

ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Type

WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer)
Special Flange: According to the drawing Picture

Materials

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L
Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91
Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

Dimension

(150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300

Marking

Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

Test

Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment

Brand

TOBO

Certificates

API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.

Advantages

1. Abundant stock and prompt delivery
2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.
4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.)



Introduce


All our products come in a variety of classes and material grade for any application.
This catalogue is specific for flanged outlets.
Flanged outlets are available with nominal diameter from 1/2" up to 12", rating from class
150# to 2500#, RF or RTJ. Schedules available are 10S, STD, XS, 160 and XXS, all
according to Shell Standard Drawing S38.090-C and can be installed on header pipes
from DN 3/4" up to 36".


Our flanged outlets are flanged branch connection featuring:
  • Reduced installation and manufacturing cost
  • Longer life under cyclic fatigue loading
  • Butt-weld installation in header pipe
  • Shape in compliance with Shell Standard Drawing S38.090-C
  • Flange dimension according to ASME B16.5



Why Choosing Metal Industrial:

  • Sufficient Forging, Heating, Machining Equipment

  • In-house Inspection Instruments for Quality Controlling

  • Competitive Price & High Quality Assurance

  • Fast, Effective and Efficient Services

  • Directly supplier of Metallurgical Equipment

  • Experienced Professinonals on Communications



Packing&Delivery

  • Packing Details :In wooden case, pallets or as per customers’ requirement

  • Delivery Details : 7-15 days after the PO
