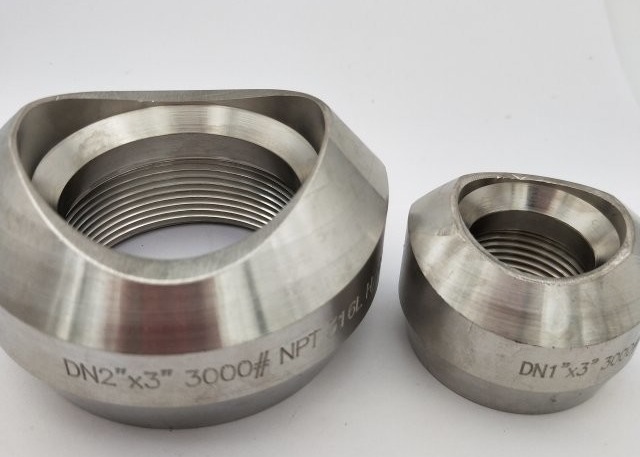

Threadolet Reducing Class 3000 ASME Forged Pipe Fittings

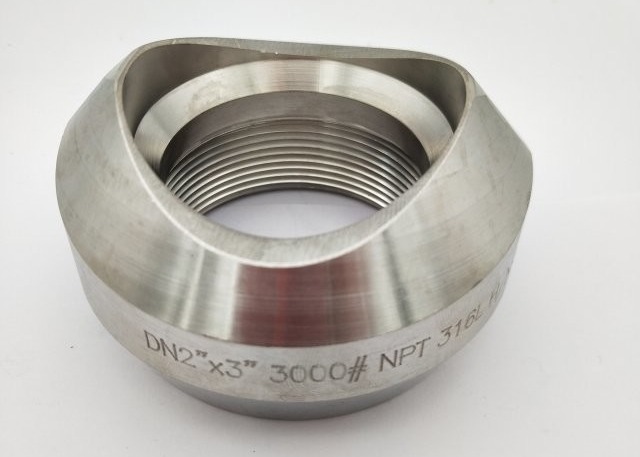

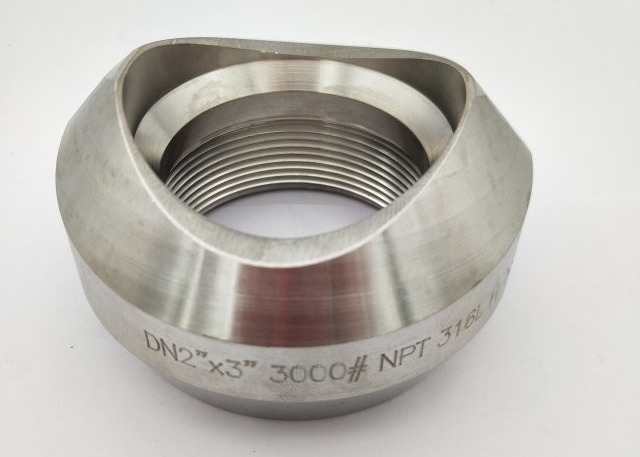

Nickel Alloy steel threadolet reducing 2"*3" class 3000 ASME SS Pipe fittings



Nickel Alloy Outlet



Nickel and nickel-based alloys possess effective resistance to a wide range of corrosive environments , in many cases, some materials such as stainless steel or super stainless steel are unable to resist these corrosive conditions. Nickel itself is a very versatile corrosion-resistant material, while as an alloying element, in a large composition range, nickel possesses Metallurgical compatibility with the other metals ,can be composed of a number of binary and ternary alloys and other complex alloys system,nickel-based alloys have a unique corrosion resistance and high temperature corrosion resistance.to deal with the corrosion problems that include chemical,petrochemical, marine, paper, agricultural chemicals, oil and gas, energy conversion and many other industrial environments. In this artical, the corrosion resistance in aqueous solution of nickel and Part of the nickel-base alloys was discussed.

Some common applications for nickel alloys:

• Desalination plants
• Pressure vessels
• Oil platforms
• Heat exchangers
• Seawater handling
• Pulp bleaching



NICKEL ALLOY

Trade Name	ASTM Pipe	Pipe Fittings	UNS	Forging & Flanges
Monel@ 400	B165	B366 WPNC	N04400	B564 N04400
Inconel@ 600	B167	B366 WPNCI	N06600	B564 N06600
Inconel@ 625	B444	B366 WPNCMC	N06625	B564 N06625
Incoloy@ 800	B163	B366 WPNIC	N08800	B564 N08800
Incoloy@ 800H	B407	B366 WPNIC10	N08810	B564 N08810
Incoloy@ 800HT	B407	B366 WPNIC11	N08811	B564 N08811
Incoloy@ 825	B423	B366 WPNICMC	N08825	B564 N08825
Hastelloy@ B2	B619/622	B366 WPHB-2	N10665	B564 N10665
Hastelloy@ C276	B619/622	B366 WPHC276	N10276	B564 N10276
Hastelloy@ C22	B619/622	B366 WPHC22	N06022	B564 N06022
Carpenter 20Cb-3@	B729	B366 WP20Cb	N08820	B462 N08820
SANICRO 28@	B668		N08028





Alloy	Ni	C	Mn	Fe	S	Si	Cu	Cr	Al	Ti	Nb	Mo
Nickel 200	99.5	0.08	0.2	0.2	0.005	0.2	0.1	--	--	--	--	--
Nickel 200	99.5	0.01	0.2	0.2	0.005	0.2	0.1	--	--	--	--	--
Monel 400	66.5	0.2	1	1.2	0.01	0.2	31.5	--	--	--	--	--
Monel 401	42.5	0.05	1.6	0.4	0.008	0.1		--	--	--	--	--
Monel K500	66.5	0.1	0.8	1	0.005	0.2	29.5	--	2.7	0.5	--	--
Inconel 600	76	0.08	0.5	8	0.006	0.2	0.2	15.5	--	--	--	--
Inconel 601	60.5	0.05	0.5	14.1	0.007	0.2	0.5	23	1.4	--	--	--
Inconel 718	52.5	0.04	0.2	18.5	0.008	0.2	0.2	19	0.5	0.9	5.1	3
Inconel X-715	73	0.04	0.5	7	0.005	0.2	0.2	15.5	0.7	2.5	1	--
Incoloy 800	32.5	0.05	0.8	46	0.008	0.5	0.4	21	0.4	0.4	--	--
Incoloy 803	32.0- 37.0	0.06- 0.10	≤1.5		≤0.015	≤1.0	≤0.75	25.0- 29.0	0.15- 0.60	0.15- 0.6	--	--
Incoloy 825	42	0.03	0.5	30.4	0.02	0.2	2.2	21.5	0.1	0.9	--	3





Our Service

Why Choosing Metal Industrial:

-Sufficient Forging, Heating, Machining Equipment
-In-house Inspection Instruments for Quality Controlling
-Competitive Price & High Quality Assurance
-Fast, Effective and Efficient Services
-Directly supplier of Metallurgical Equipment
-Experienced Professionals on Communications





Our Company

We are one of the Professional manufacturers Exporter Pipeline products in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians.



We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories. Now, it owns a number of advanced pipe production equipments, metal, forging, machining, cold forming, hot extrusion, such as heat treatment process, producing 60, 000 tons of pipe fittings. Company with a variety of detection devices, such as nondestructive testing, chemical analysis, metallographic examination, physical experiments. The technical is very strength, our main products contain fittingsforged socket welding fittings and threaded fittings, pipe weld and the materials of the products contain stainless steel ,duplex-stainless steel alloy steel.



In addition, we are authorized by more than 120 top-class mills from South Korea,Japan and China like JFE,SUMITOMO,POSCO,BAOSTEEL, TISCO,LISCO,.TPCO,HENGYANG VALIN and so on .



Our main products as follows:

· Stainless steel pipe & tube

(seamless pipe / welded pipe / square pipe / rectangular tube,duplex stainless / inconel tube)



· Carbon / alloy steel pipe & tube

(seamless pipe / ERW / SSAW / LSAW / UOE / hollow section pipe / Galvanized Pipe)



· Tubing and casting

(line pipe,water pipeline,gas pipeline,oil pipeline)



· Special steel tube

(copper tube/titanium tube/aluminium tube/nickel alloy )



· steel bar

(round bar/angle steel /flat steel/channel steel/steel wire)



· Pipe Fittings



(eblows, equal / reducing tees, concentric/eccentric reducers, caps, crosses, bends, dish end/end cup, stub ends, unions, couplings / hex couplings, swage nipples , nipples, hex. plug, sockolet, weldolet, thredolet, etc)



· Flange

(DIN flange/ AISI flange/blind flange/welding flange/stainless flange/slip on flange)



· steel sheet / coil

(stainless steel/carbon steel/alloy steel/galvanized steel/aluminium )



· Valve

(ball valve/gate valve/butterfly valve/globe valve/swing check valve/ check valve)





FAQ

Q:Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
