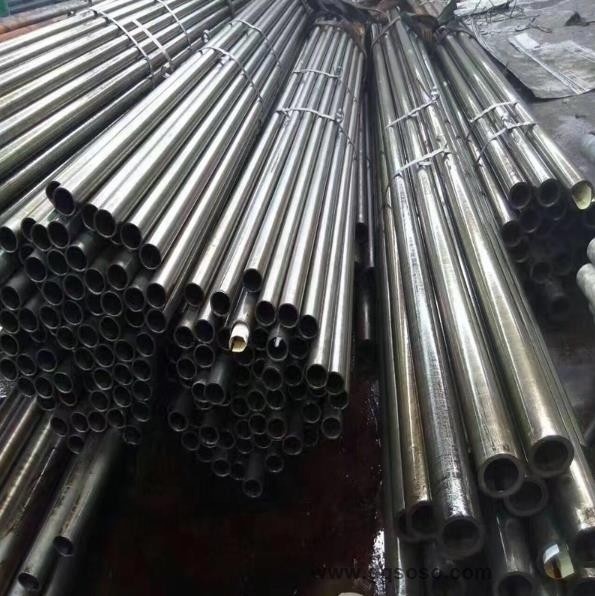

Varnished 25mm Thickness P22 13CrMo44 Alloy Steel Pipe

  • Varnished 25mm Thickness P22 13CrMo44 Alloy Steel Pipe
  • Varnished 25mm Thickness P22 13CrMo44 Alloy Steel Pipe
Place of Origin China
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number A335 Alloy Steel pipe P22
Minimum Order Quantity 1 pc
Price USD Negotiated
Packaging Details Standard Sea-worthy Packing wooden cases or plastic by bundles as customer's required
Delivery Time 25 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1200 Metric Ton/Metric Tons per Week
Product Details
Material ASTM A335 P5 P9 P11 P22 P91 P92 Alloy Steel Pipe Welding Type Seamless , Spiral Welded
Technique Cold Rolled Hot Rolled Surface Varnished / As Per Customer's Requirements
Thickless 2 - 25mm Size Schedule DN
Outer Diameter 0.5 - 24 Inch Application Boiler Pipe
Highlight

13CrMo44 Alloy Steel Pipe

,

P22 Alloy Steel Pipe

,

25mm Alloy Steel Pipe
Leave a Message
Product Description

ASTM A335 P5 P9 P11 P22 P91 P92 Alloy Steel Pipe / 13CrMo44 34CrMo4 10CrMo910 15Mo3 Alloy Steel Pipe





Product ASTM A335 P5 P9 P11 P22 P91 P92 Alloy Steel Pipe
Type of Pipe Seamless
O.D. 1/2”-24”
WT 2-25mm
Standard ASTM A335 / ASME SA335
Steel Grade P5, P9, P11, P12, P22, P91, P92
Technique Cold Drawn / Hot Rolled
Length Single Random, Double Random & Cut Length.
Surface Painting/Varnished/Galvanized/3PE, as per customer’s requirements.
Ends Plain End, Beveled End
Packing Standard Exporting Seaworthy Packing (Bundle/ Loose/ PVC Bag/Wooden Case), as per customer’s requirements.
Application Used for boiler pipe, power plants and nuclear plants.

Chemical Composition(%):

Grade C Mn P≤ S≤ Si Cr Mo
P11 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 1.00-1.50 0.44-0.65
P22 0.05-0.16 0.30-0.60 0.025 0.025 ≤0.50 1.90-2.60 0.87-1.13
P5 ≤0.15 0.30-0.60 0.025 0.025 ≤0.50 4.00-6.00 0.45-0.65
P9 ≤0.15 0.30-0.60 0.025 0.025 0.25-1.00 8.00-10.00 0.90-1.10
P91 0.08-0.12 0.30-0.60 0.020/0.010 0.020/0.010 0.02-0.50 8.00-9.50 0.85-1.05
P92 0.07-0.13 0.30-0.60 0.020/0.010 0.020/0.010 ≤0.50 8.50-9.50 0.30-0.60



Mechanical properties:



Grade Tensile strength Yield strength Elongation
P11, P22, P5, P9 ≥415 ≥205 ≥30/20
P91 ≥585 ≥415 ≥20
P92 ≥620 ≥440 ≥20






What can we do for you ?

>> 1.Are you a factory or a trading company?

1.We are a factory focused on rigging hardware over 22 years.

2.Our main products are shackles,eye bolts and nuts. turnbuckles, wire rope clips, hooks and load binders.

3.We have 6 production lines with advanced machines over 30 like friction presses, air hammer, punching machines,etc.

4.We own warehouse over 3000 square meters.

5.We have numerous distributors at home and board.

>> 2.How do you control your quality?

1.Selection of high-quality steel material from famous steel group

2.Production process standardization, process standardization, refinement.

3.100% Finished Product Testing.

4.The third party product inspections are acceptable.

5.ISO Quality Management System Certificated Factory

6.Inspection before loading

>> 3.What are your advantages compared with others?

1.BV, SGS Field Certification and Assessed Factory

2.Focused on rigging since 1997, Rich experience in Production.

3.Owned factory, the same quality product, the best price.

4.Timely Delivery with the support of 3000 square meters warehouse.

5.Numerous Patents in Rigging Hardware. Be Good at Custom-Made and Shaped Products.

6.Over 20 Professional Staff in Trading Team,Let you enjoy worry-free and effective communication.

>> 4.Can you offer samples ?

Yes, free samples are available, but freight charged by customer

>> 5.How about your quality guarantee?

We’re 100% responsible for damage of full container goods if it’s caused by our improper package.

We have very strict QC team to control the quality problem.

From material to finished products, each step, our inspection man to inspect it.For each order, we will test and have the record.

>> 6.Why choose us?

1). More than 20 year's manufacturing experience

2). OEM/ODM service offered • Small order accepted

3). Direct factory price • More competitive

4). High Quality • Zero Complaint
