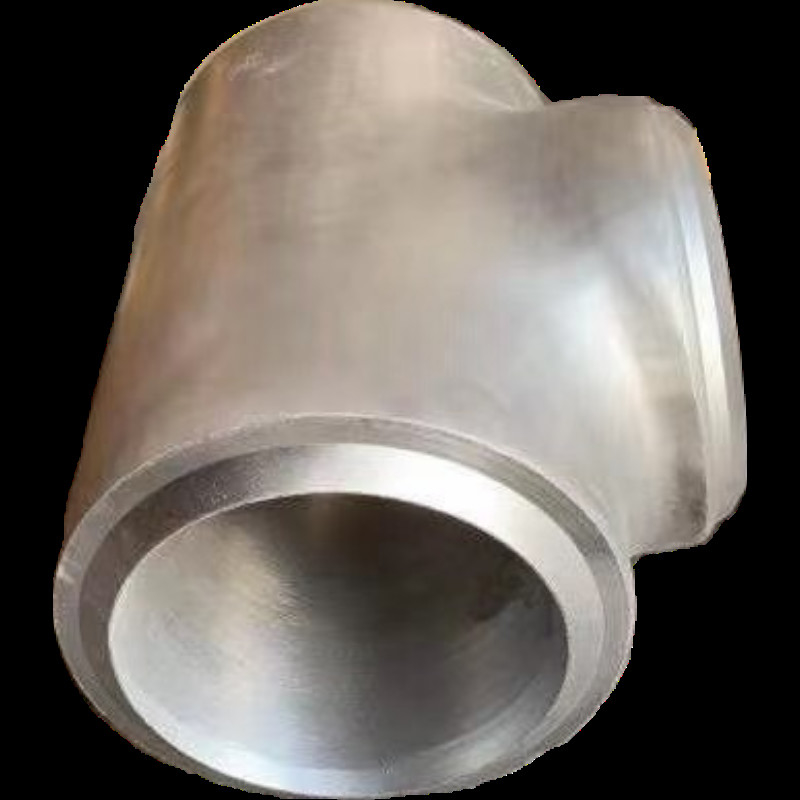

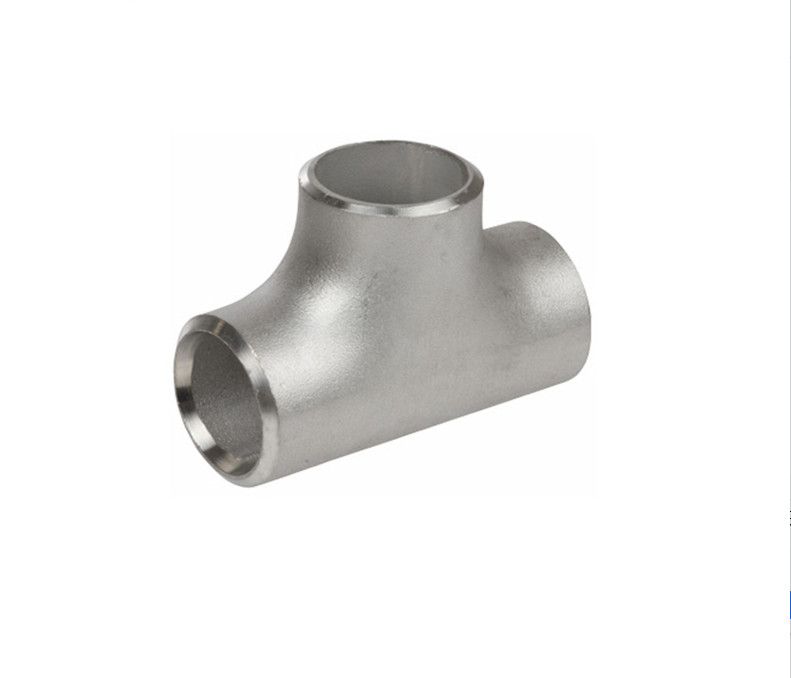

F44/254SMO/S31254/1.4574 Barred Equal TEE 8" X 8" SCH80 Butt Weld Fittings ANSI B16.9

  • F44/254SMO/S31254/1.4574 Barred Equal TEE 8" X 8" SCH80 Butt Weld Fittings ANSI B16.9
  • F44/254SMO/S31254/1.4574 Barred Equal TEE 8" X 8" SCH80 Butt Weld Fittings ANSI B16.9
  • F44/254SMO/S31254/1.4574 Barred Equal TEE 8" X 8" SCH80 Butt Weld Fittings ANSI B16.9
Place of Origin CHINA
Brand Name TOBO
Certification SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number F44/254SMO/S31254/1.4574
Minimum Order Quantity 1PCS
Price negotiate
Packaging Details PLY-WOODEN CASE OR PALLET
Payment Terms T/T, L/C, D/A, Western Union
Supply Ability 9600000pcs per month
Product Details
Material Grrade Barried Tee Size SCH 80
Standard DIN,EN,ASTM,BS,JIS,GB,etc Application Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding Etc
Connection Welding Shape Equal
Head Code Round Paint Black
Technic Casting
Highlight

Stainless Steel Tee SCH80

,

8 inch Butt Weld Tee

,

ANSI B16.9 Tee Fitting
Leave a Message
Product Description



F44/254SMO/S31254/1.4574 Barred Equal TEE  8" X 8" SCH80 Butt Weld Fittings ANSI B16.9



Description

Product type Pipe fitting
Product name BARRED TEE
Product Class Lateral tee, Y tee, Reducer Tee, Straight Tee, Base Tee, Barrier Tee, Stengthen Tee
Produce thnologe Samless, Welding
Size Samless size from DN15-DN700; Welding size:DN200-DN2000
Thickness SCH10,SCH20,SCH30,STD,SCH40,SCH60,SCH80,SCH100,SCH120,SCH160,XS, XXS HIGH THICKNESS TO 80MM
Material Materials :
* A234 – WPB WP5, WP9, WP11, WP22
* A420 - WPL3/ WPL6
* A403 – WP304/L; WP316/L
* A860-WPHY 42-46/52-60/65-70
Special Materials such as Monel, Inconel, Cu-Ni, Duplex SS etc are available on request
Standard ASME B16.9
Face Coatings: Special Coating i.e. Cement Mortar Lining, FBE Coating, Galvanized (Hot Dipped Electro-Plating) etc. can be provided

Stainless Steel Stub End, Carbon steel Cap, 45°Welded Elbow Exporter

WH-STEEL main products: stainless steel stub end, seamless stub end, 45°bend with 3LPE, seamless tee, carbon steel cap, barred tee, welded elbow, carbon steel reducer elbow, cap etc. All of them with the supper quality and great value



Packaging Details: Plywood case or fumigated woodern case or as per customers' requests.
Delivery Detail: 2 - 10 days after receiving the deposit

Specifications



F44/254SMO/S31254/1.4574 Barred Equal TEE Barred Tee 8" X 8" SCH80 Butt Weld Fittings ANSI B16.9

WT: Sch80S

2. Material:F44/254SMO/S31254/1.4574
3. High quality, competitive price.

Base on excellente quality, satisfactory service and reasonable prcie, yaang's products have exported to USA, Russia, Korea, Brazil, Chile, Peru and MId East, etc.

Chinese barried tee supplier TOBO GROUP F44/254SMO/S31254/1.4574 Barred Tee



Type F44/254SMO/S31254/1.4574 equal tee
Size Seamless 1/2" To 48" Welded To 72"
Wall thickness Sch5S-Sch160, XS,XXS
Standards ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc
Material

Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, etc

Carbon Steel: ASTM A234 WPB, WPC ASTM A105 WPHY 42, etc

Alloy Steel: ASTM A234 WP1, etc Low Temperature: ASTM A420 WPL 1, etc

Duplex and super duplex steel: ASTM A815 UNS S31803/S32205/S32750/S32760/S32550
Surface treatment Sand Rolling, Sand Blasting ,Acid Cleaning.
Packing wooden case, pallet or as customers’ requirement
Applications Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc

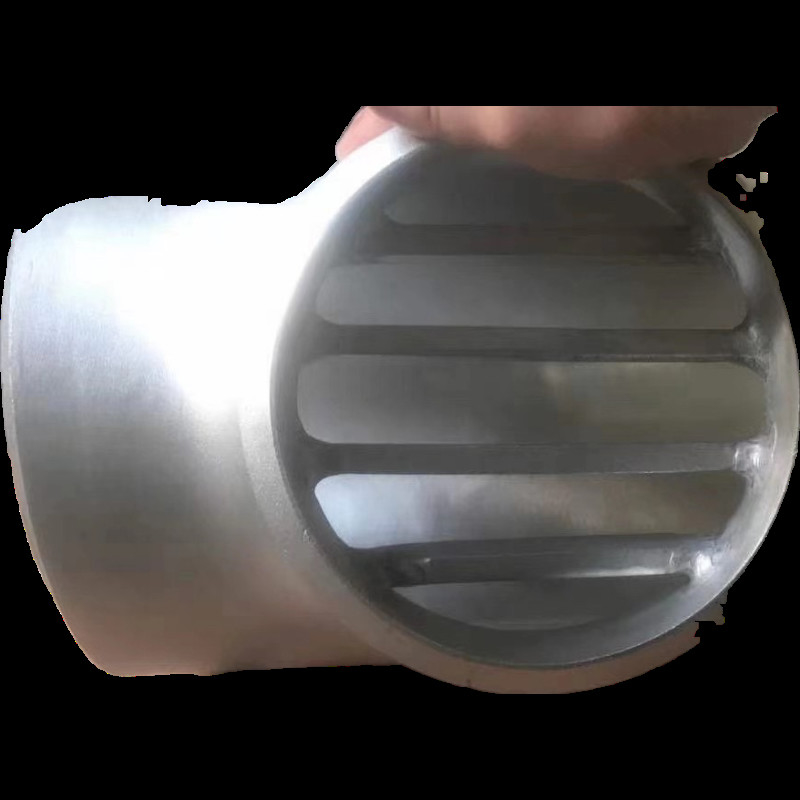

What is a barried tee

A barred tee is a tee or any fitting with a branch used in pipelines that ispigged and has a restriction bar welded internally preventing the pig fromtraveling down a branch connection. The bars are installed so they are flushwith the inside diameter of the pipeline to keep the pig from hanging upwhen it passes through.

To complement our range of pigs and spheres pipeline engineering has the in-house engineering, manufacturing and testing capacity to produce piggable pipeline sphere tees and barred tees.

Our barred tees are manufactured to specific customer project specifications and International pressure vessel and piping codes such as ASME, PD5500. Our capacity ranges from 2" to 54", ANSI Ratings 150 to 2500 and API, using carbon, stainless and alloy steel materials. We also expertise in supplying tees for sour service environments, which require NACE and corrosion tested (HIC/SSCC) materials.

Barred Tees are of required pressure rating as per parameters for by-pass / branch connection into pipeline. This is to ensure smooth running of Pigs and avoid any by-pass of kicker products. Barred Tees are for long distance submarine oil and gas pipeline.we are one of the reliabl Barred Tee Suppliers in UAE



APPLICATIONS:

1. Pipe and Tubes for petrochemical industry
2. Pharmaceutical industry
3. Food industry
4. Aviation and aerospace industry
5. Architectural decoration industry

Other Features:

1) Chemical and Physical characteristic: durable, corrosion resistant and high-temperature resistant

2) We also produce pipes with special specifications according to customers’ requirements

 F44/254SMO/S31254/1.4574 Barred Equal TEE 8" X 8" SCH80 Butt Weld Fittings ANSI B16.9 0
