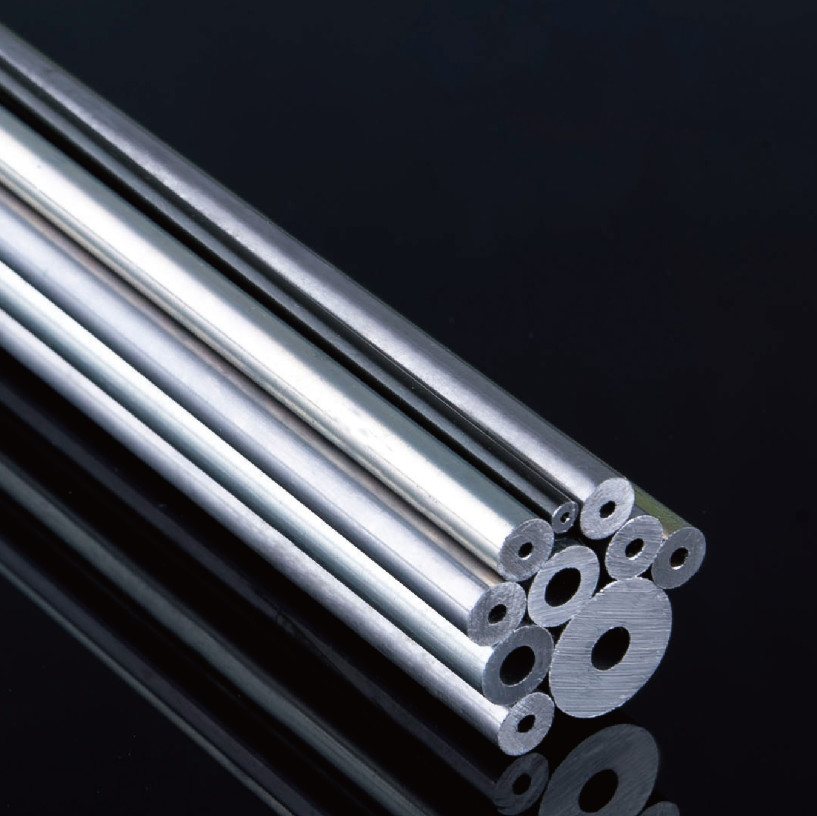

high precision bright surface thick wall seamless tube ID 4.4mm, 5.4mm airgun barrel tube and pipe

  • high precision bright surface thick wall seamless tube ID 4.4mm, 5.4mm airgun barrel tube and pipe
  • high precision bright surface thick wall seamless tube ID 4.4mm, 5.4mm airgun barrel tube and pipe
Place of Origin China/Japan/Germany
Brand Name TOBO/TPCO/TISCO/VALIN/METAL
Certification ISO/PED/TUV/SGS/LR/BV
Model Number 1.4835 Stainless Steel Seamless Pipe
Minimum Order Quantity 0.5-1 tons
Price negotiable
Packaging Details in plastic bags then in bundles
Delivery Time 15days->
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 7500 tons per year
Product Details
Standard DIN, ANSI, ISO, GB, JIS Sample Provided,Free,Available Free Within 7days
Application Fluid Pipe,Structure Pipe Outer Diameter 6-813mm
Surface Annealed & Pickled, Bright Annealing, Polished Thickness 0.5-100mm
Material Carbon Steel,Stainless Steel,alloy Steel,Brass,copper Types Seamless
Highlight

stainless steel seamless airgun barrel tube

,

thick wall seamless pipe ID 4.4mm

,

high precision bright surface barrel tube
Leave a Message
Product Description

high precision bright surface thick wall seamless tube ID 4.4mm, 5.4mm airgun barrel tube and pipe

Overview
Quick Details
Place of Origin:
China
Application:
airgun barrel tube, airgun barrel tube and pipe
Alloy Or Not:
Non-Alloy
Section Shape:
Round, Round
Special Pipe:
Thick Wall Pipe
Outer Diameter:
1.5 - 60 mm, 1.5 - 60 mm
Thickness:
0.5 - 6 mm
Standard:
ASTM, bs, DIN, GB, JIS, ASTM A179-1990, BS 6323, DIN 1629/3, DIN EN 10216-1-2004, DIN 1630, DIN 2391, DIN 17175, DIN EN 10305, DIN 2448, GB/T 8163-1999, GB/T 8162-1999, GB/T 3639-2000, JIS G3445-2006
Grade:
10#, 20#, 45#, 16mn, ST37, ST52, ST45, ST35.8, St37-2, ST35.4, St52.4, St45-4, ST35, ST37.4, ST54, 10#-45#, 16mn, ST35-ST52
Surface Treatment:
Bright annealed, black phosphated or galvanized
Tolerance:
±5%
Processing Service:
Cutting
Standard::
DIN 2391, EN10305-1, EN10305-4, BS 6323, ISO 8535
STEEL GRADE::
C45, 4130, 4140, 30CrMo, 42CrMo, ST35, ST45, etc
Delivery condition::
BK, GBK, BKW, BKS or NBK
Certificate::
ISO 9001 TS16949
Technique:
Cold Drawn, Cold Drawn
Secondary Or Not:
Non-secondary
Certification:
TS16949 ISO9001
Type:
Seamless Steel Pipe




















Supply Ability
Supply Ability
1000 Ton/Tons per Month airgun barrel tube and pipe
Packaging & Delivery
Packaging Details
sea worthy packing for high precision bright surface thick wall seamless tube ID 4.4mm, 5.4mm airgun barrel tube and pipe
Port
shanghai

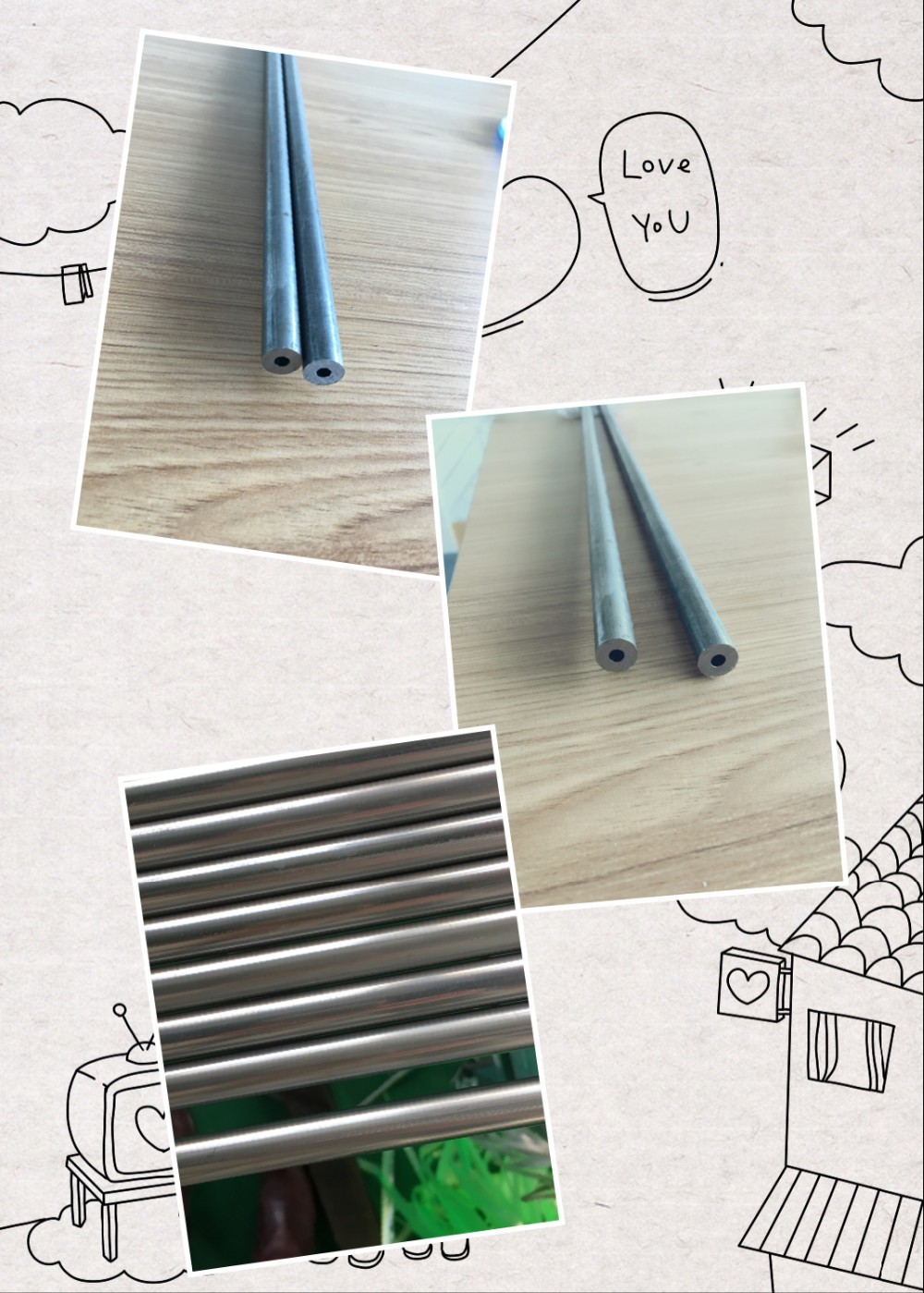

Picture Example:

high precision bright surface thick wall seamless tube ID 4.4mm, 5.4mm airgun barrel tube and pipe 2

high precision bright surface thick wall seamless tube ID 4.4mm, 5.4mm airgun barrel tube and pipe 3



Major OD 16mm and 12mm others also available

Tube size can be designed as per customers requirements

Best hardness and machining ability

Frequent sizes for usage

ID 4.4mm OD 12mm
ID 5.4mm OD 12mm
ID 5.4mm OD 15mm
ID 6.3 mm OD 15mm
ID 6.3 mm OD 16mm
ID 7.55mm OD 16mm

Others as per customer's requirements

ID tolerance can be controled within +/-0.02

Brigtht and Shinning inner and outer surface

Steel Grade: S45C, 4130,4140, 30CrMo, 42CrMo, 42CrMo4 and others

Good quality tubes consume less button for grooving

Special production Mechod









Other SIZEs for our production:

Outer Diameter: 1.5mm-60mm

Wall Thickness: 0.3mm to 10mm





Certificates:

According to EN 10204 3.1

Inspection Items: Tensile stength, Yield stength, Elongation, Flattenging, FlaringChemical analysisEddy Current

Test 100%, Size and surface checking 100%Other test item can be arranged as per request

DELIVERY CONDITIONS:

The tubes can be produced in the following delivery conditions:

BK (+C) Cold finished/hard (cold finished as drawn).

No heat treatment after the last cold forming process.



BKW (+LC) Cold finished/soft (lightly cold worked)

After the last heat treatment there is a light finishing pass (cold drawing).



BKS (+SR) Cold finished/stress relieve annealed.

After the final cold forming process the tubes are stress relieve annealed.



GBK (+A) Annealed.

After the final cold forming process the tubes are annealed in a controlled atmosphere.

NBK (+N) Normalized. (Mainly focus on)

After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere



Some samples of related steel grade

GB TOCT ASTM BS JIS NF DIN
10F   1010 040A10   XC10
10 10 10,101,012 045M10 S10C XC10 C10,CK10
20 20 1020 050A20 S20C XC18 C22,CK22
45 45 1045 080M46 S45C XC45 C45,CK45
30CrMo 30XM 4130 1717COS110 SCM420 30CD4
42CrMo   4140 708A42   42CD4 42CrMo4
      708M40
35CrMo 35XM 4135 708A37 SCM3 35CD4 34CrMo4



FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
