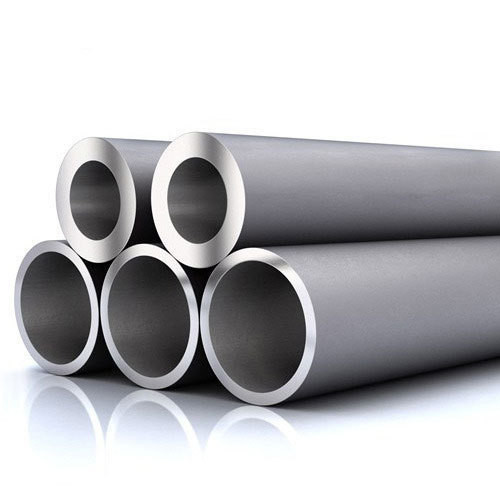

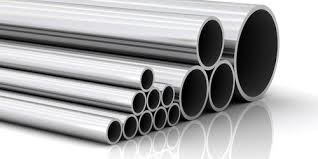

Nickel -copper alloy Monel 400 UNS N04400 nickel alloy seamless pipe/tube

Basic Information

Place of Origin:	China/Japan/Germany
Brand Name:	TOBO/TPCO/TISCO/VALIN/METAL
Certification:	ISO/PED/TUV/SGS/LR/BV
Model Number:	1.4835 Stainless Steel Seamless Pipe

Minimum Order Quantity:	0.5-1 tons
Price:	negotiable
Packaging Details:	in plastic bags then in bundles
Delivery Time:	15days->
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	7500 tons per year

Get Best Price Contact Now

Standard::	DIN, ANSI, ISO, GB, JIS	Sample:	Provided,Free,Available Free Within 7days
Application:	Fluid Pipe,Structure Pipe	Outer Diameter:	6-813mm
Surface:	Annealed & Pickled, Bright Annealing, Polished	Thickness:	0.5-100mm
Material:	Carbon Steel,Stainless Steel,alloy Steel,Brass,copper	Types::	Seamless

Nickel -copper alloy Monel 400 UNS N04400 nickel alloy seamless pipe/tube

Overview

Quick Details

Place of Origin:: China

Type:: Nickel Pipe

Application:: heating element

Grade:: Ni Cu

Ni (Min):: 63%

Resistance (μΩ.m):: 1.5

Powder Or Not:: Not Powder

Ultimate Strength (≥ MPa):: 480

Elongation (≥ %):: 35

Model Number:: monel 400

Size:: custom made

Standard:: ASTM B164

Surface:: Bright

Shape:: Tube

Density:: 8.83 G/cm3

Melting point:: 1300-1390

Elongation:: 35%

M.O.Q:: 20 kg

Delivery Time:: 7-20 Days

Product name:: Monel 400 UNS N04400 nickel alloy seamless pipe/tube

Packaging & Delivery

Selling Units:: Single item

Single package size:: 18X15X10 cm

Single gross weight:: 6.000 kg

Package Type:

Nickel -copper alloy Monel 400 UNS N04400 nickel alloy seamless pipe/tube are pqacked in cartoon boxes.
Special packaging requirements can also be accommodated.
OEM is also acceptable.

Size Range
Wire	8-50 mm

Monel Serious

Nickel -copper alloy Monel 400 UNS N04400 nickel alloy seamless pipe/tube

Monel 400 is copper nickel alloy,has good corrosion resistance. In salty water or seawater has excellent resistance to pitting corrosion, stress corrosion ability. Especially hydrofluoric acid resistance and resistance to the hydrochloric acid. Widely used in the chemical, oil, Marine industry.
It is widely used on many aspects,like valve and pump parts, electronic components, chemical processing equipment, gasoline and freshwater tanks, petroleum processing equipment, propeller shafts, marine fixtures and fasteners,boiler feedwater heaters and other heat exchangers.

Item	Ni	Cu	Fe	Mn	C	Si	S
Monel 400	≥63	28-34	≤2.5	≤2	≤0.3	≤0.5	≤0.025

Item	Density	Melting point	Tensile Strength	Yield Strength	Elongation	HB
Monel 400	8.83 g/cm3	1300-1390℃	480	170	35%	≥331

Monel 400	Bar/Rod	Forging	Pipe	Sheet/Strip	Welding Wire
Standard	ASTM B164	ASTM B564	ASTM B165	ASTM B127	ErNiCu-7

Related Products

Nicr Wire

Cuni Wire

Welding Wire

Nicr Ribbon

Nicr Strip

Pure Nickel Strip

Production Process

Our Service

FAQ

Q: Does this tubing come with triclamp ends to be coupled together?A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please

contact us.

Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.

Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.

Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.

Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.

A:  We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.

Q: Do this product ship via freight?

A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
